Wood Working Machines

We are leaders in the market for providing best range of Temple Work Carving Machine, CS2237-1 Marble Carving Machine, Marble Carving Machine and CNC Wood Router with Rotary Axis

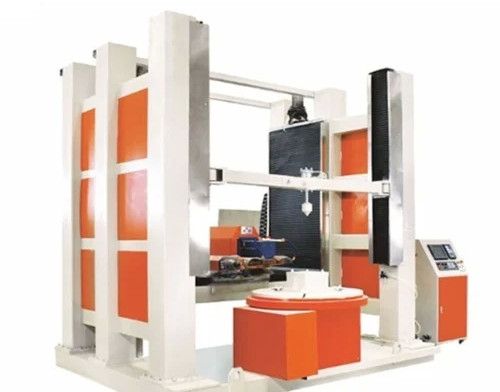

Temple Work Carving Machine

Temple Work Carving Machine
₹ 45 Lakh / Unit Get Latest Price
  • Min. Order (MOQ) 1 Unit
  • Voltage AC 380 V
  • Brand Name Fusion
  • Frequency 50/60 HZ
  • Processing Size High: 2000mm Circle: 1500 Mm
  • Lathe Bed Heavy-duty Square Pipe Welding Bed, Stainless Steel Sink, Stainless Steel Plate
  • Longmen Thickened Aging Steel Gantry
  • Guide Taiwan, HIWIN, 30
  • Ball Screw System Taiwan 3210 And 4010 TBI
  • System Full Servo (Dorna)
  • Control System Weihing NK300CX
  • Rack Precision Helical Drive
  • Pindle Power 7.5 KW Water Cooled
  • Spindle Speed 18000-24000 RPM
  • Invertor 7.5KW*1, 22KW*1
  • Driving System Servo Motor
  • Cooling System Water-cooling
  • Control Switch Schneider
  • Saw Blade Motor Power 22 KW
  • Saw Blade Size 500 Mm
  • Water Chiller 10 L
We offer the Fusion Temple Work Carving Machine, designed for precision and efficiency. Operating at AC 380V with a frequency of 50/60 HZ, this machine boasts a processing size of High: 2000mm Circle: 1500mm. Its heavy-duty square pipe welding bed and thickened aging steel gantry ensure durability. Equipped with Taiwan guides and ball screw systems, specifically Taiwan 3210 and 4010 TBI, along with a full servo control system by Dorna, and Weihing NK300CX control system. Ideal for manufacturers, exporters, and suppliers seeking top-quality machinery for intricate carving work.
View Complete Details
Ask Latest Price & Details

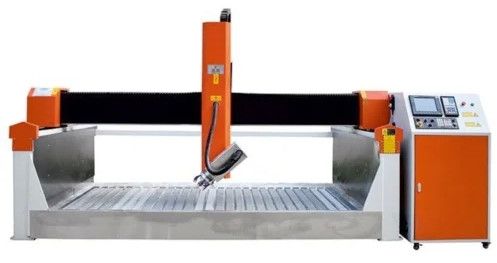

CS2237-1 Marble Carving Machine

CS2237-1 Marble Carving Machine
₹ 24.50 Lakh / Unit Get Latest Price
  • Min. Order (MOQ) 1 Unit
  • Country of Origin Made In India
  • Brand Name Fusion
  • Model Name/Number CS2237-1 (4 AXIS)
  • Phase Three Phase
  • Working Size 2200 X 3700 X 950MM With: Four Axis Swing
  • Spindle Motor 7.5KW Spindle
  • Saw Blade 7.5KW
  • Block Guide XYZ, Taiwan 30 Mm
  • Working Accuracy +-0.5 Mm
  • Spindle Speed 0-24000 Rpm
  • Max Traveling Speed 20000 Mm/min
  • Max Working Speed 12000 Mm/min
  • The Transmission Way Reducer Japan
  • Lubricatin System Automatic Oil Filling System
  • Refrigeration Systems 10 L Industrial Chiller
  • Drive And Motor Full Servo Systems
  • Control System Weihong NK105 Hand Control Remote System
  • XYZ Structure X, Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball Screw -Taiwan
We are a leading Manufacturer, Exporter, and Supplier of the Fusion CS2237-1 Marble Carving Machine, proudly Made In India. The CS2237-1 (4 AXIS) model offers exceptional precision with a working size of 2200 X 3700 X 950MM and features like Four Axis Swing, 7.5KW Spindle Motor, 7.5KW Saw Blade, XYZ Block Guide, and +-0.5mm Working Accuracy. This machine is designed for efficiency with a Three Phase power supply and a spindle speed range of 0-24000 Rpm. Experience top-notch craftsmanship and reliability with the Fusion CS2237-1 Marble Carving Machine.
View Complete Details
Ask Latest Price & Details
Marble Carving Machine

Marble Carving Machine
₹ 24.50 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Country of Origin Made in India
  • Brand Name Fusion
  • Model Name/Number CS2237-1 (4 AXIS)
  • Phase Three Phase
  • Working Size 2200 X 3700 X 950MM With: Four Axis Swing
  • Spindle Motor 7.5KW Spindle
  • Saw Blade 7.5KW
  • Block Guide XYZ, Taiwan 30 mm
  • Working Accuracy +-0.5 mm
  • Spindle Speed 0-24000 rpm
  • Max Traveling Speed 20000 mm/min
  • Max Working Speed 12000 mm/min
  • The Transmission Way Reducer Japan
  • Lubricatin System Automatic Oil Filling System
  • Refrigeration Systems 10 L Industrial Chiller
  • Drive and Motor Full Servo Systems
  • Control System Weihong NK105 Hand Control Remote System
  • XYZ Structure X, Y Rail with Rack & Pinion Z -Ball Screw with High Precision ball Screw -Taiwan
We are a leading Manufacturer, Exporter, and Supplier of the CS2237-1 (4 AXIS) Marble Carving Machine, proudly Made in India. This three-phase machine offers a working size of 2200 X 3700 X 950MM with advanced features like Four Axis Swing, 7.5KW Spindle Motor, 7.5KW Saw Blade, XYZ Block Guide, and working accuracy of +-0.5 mm. The spindle speed ranges from 0 to 24000 rpm, with a max traveling speed of 20000 mm/min. Experience precision and efficiency with our top-of-the-line marble carving machine designed to meet your industrial needs.
View Complete Details
Ask Latest Price & Details
CNC Wood Router With Rotary Axis

CNC Wood Router With Rotary Axis
  • Min. Order (MOQ) 1 Unit
  • Model Name/Number DM-1325 R
  • Working Area 1300*2500*300 Mm
  • Rotary Size Diameter 150mm Length 2100mm
  • Spindle Power 3.5 Kw Air Cooled
  • Maxing Moving Speed 10000mm/min
  • Reposition Accuracy <0.05mm/300mm
  • Max Engraving RPM 6000-24000rpm
  • Motor/Driver Stepper Motor Drive Yako 2608
  • Working Voltage AC 380V 3 PHASE
  • Platform Aluminum
  • Cross Beams Steel
  • X,Y, Z Guide Rail Hiwin Square Linear Rail
  • Brand Name Fusion
We are a leading Manufacturer, Exporter, and Supplier offering the DM-1325 R CNC Wood Router with Rotary Axis. This advanced machine features a working area of 1300*2500*300 mm and a rotary size of diameter 150mm length 2100mm. With a powerful 3.5 Kw air-cooled spindle, it delivers precision and efficiency. The machine boasts a maximum moving speed of 10000mm/min and reposition accuracy of <0.05mm/300mm. Equipped with a stepper motor drive Yako 2608, the CNC router operates at a working voltage of AC 380V 3 PHASE. Ideal for engraving tasks, it offers a max engraving RPM range of 6000-24000rpm on its aluminum platform.
View Complete Details
Ask Latest Price & Details
