Our Products

  1. Lathe Machines 2 Products available
  2. Others Products 12 Products available

Lathe Machines

Our Complete range of products are Medium Duty Lathe Machine and Light Duty Lathe Machine.

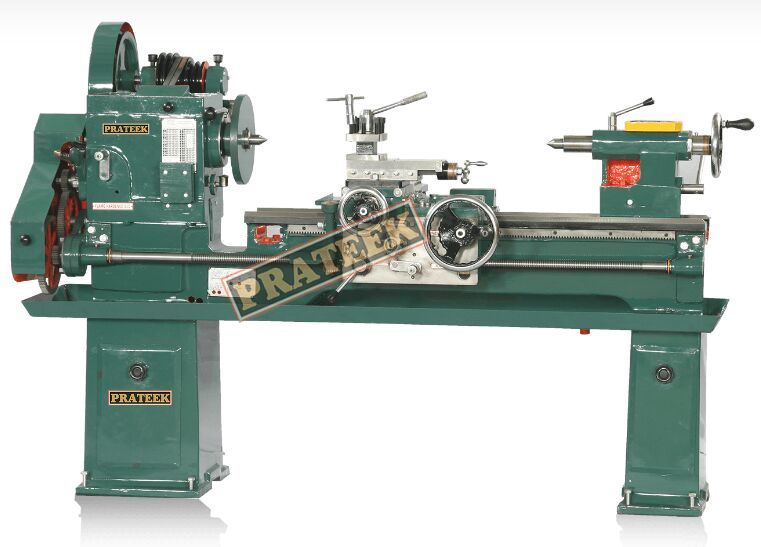

Medium Duty Lathe Machine

Medium Duty Lathe Machine
  • Country of Origin India
  • Type Lathe Machine
  • Duty Medium Duty
  • Accessories Included 8
  • Additional Accessories Steady Rest, Follow Rest, etc
STANDARD ACC.: 8" CHUCK PLATE, 2 NOS DEAD CENTER, CENTER ADAPTER, TOOL POST KEY, CHANGE GEAR SET, (INCH & MM). MOTOR PULLYEXTRA STANDARD & ELECTRICALS ACC.: STEADY REST, FOLLOW REST, FACE PLATE, CHUCK, ELE.MOTOR, RE SWITCH, MOTOR V-BELT

Description PRATEEK MD NO. 1 PRATEEK MD NO. 2 PRATEEK MD NO. 3
LENGTH OF BED 1370 MM (4' 6") 1525 MM (5' 00") 1830 MM (6' 00")
MAX A.B. CENTER 508 MM (20") 660 MM (26") 965 MM (38")
MAX. SWING OVER BED. 381 MM (15") 381 MM (15") 381 MM (15")
MAX SWING WITHOUT GAP 610 MM (24") 610 MM (24") 610 MM (24")
MAX SWING OVER CROSS SLIDE 203 MM (8") 203 MM (8") 203 MM (8")
HEIGHT OF CENTER OVER FLATE BED WAYS 215 MM (8-1/2") 215 MM (8-1/2") 215 MM (8-1/2")
WIDTH OF BED 280 MM (11") 280 MM (11") 280 MM (11")
WIDTH OF GAP IN FRONT OF FACE PLATE 127 MM (5") 127 MM (5") 127 MM (5")
SPINDLE HOLE 54 MM (2-1/8") 54 MM (2-1/8") 54 MM (2-1/8")
NO. OF SPINDLE SPEEDS & RANGE 6 (68 TO 600) 6 (68 TO 600) 6 (68 TO 600)
LEAD SCREW DIA. & PITCH 32 MM (1-1/4") 4 TPI 32 MM (1-1/4") 4 TPI 32 MM (1-1/4") 4 TPI
TAPPER OF CENTER IN HEAD AND T.S. MT.- 4 MT.- 4 MT.- 4
NO. OF METRIC THREADS AND RANGE (1 TO 6 MM) 13 (1 TO 6 MM) 13 (1 TO 6 MM) 13
NO. OF INCH THREADS AND RANGE 2 TO 24 TPI) 19 2 TO 24 TPI) 19 2 TO 24 TPI) 19
V-BELT DRIVE DOUBLE V-BELT "B" DOUBLE V-BELT "B" DOUBLE V-BELT "B"
POWER OF AC MOTOR 3 P.H. (1440 RPM) 1.5 HP. OR 2 H.P. 1.5 HP. OR 2 H.P. 1.5 HP. OR 2 H.P.
APPROX WEIGHT IN KG. 675 KG. 700 KG. 775 KG.
View Complete Details
Ask Latest Price & Details

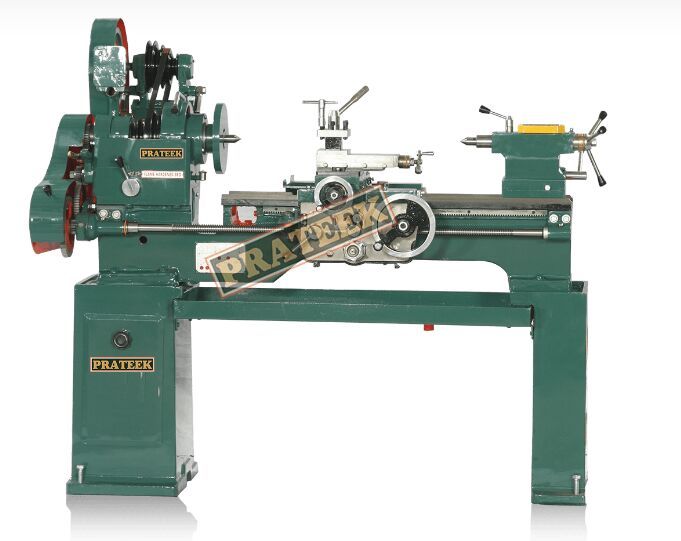

Light Duty Lathe Machine

Light Duty Lathe Machine
  • Country of Origin India
  • Type Lathe Machine
  • Duty Light Duty
  • Accessories Included 8
  • Additional Accessories Steady Rest, Follow Rest, etc
STANDARD ACC.: 8" CHUCK PLATE, CHANGE GEAR SET OF (INCH & MM.) TWO NOS., DEAD CENTER, ONE NO., CENTER ADAPTER, MOTOR PULLEY, TOOL POST KEY.EXTRA STANDARD & ELECTRICALS ACC. STEADY REST, FOLLOW REST, FACE REST, CHUCK, ELE. MOTOR, RE. SWITCH, MOTOR V-BELT.

Description PRATEEK LD NO. 1 PRATEEK LD NO. 2 PRATEEK LD NO. 3
LENGTH OF BED 1370 MM (4' 6") 1525 MM (5' 3") 1830 MM (6')
MAX A.B. CENTER 685 MM (27") 915 MM (36") 1145 MM (45")
MAX. SWING OVER BED. 305 MM (12") 305 MM (12") 305 MM (12")
MAX SWING WITHOUT GAP 495 MM (19") 495 MM (19") 495 MM (19")
MAX SWING OVER CROSS SLIDE 178 MM (7") 178 MM (7") 178 MM (7")
HEIGHT OF CENTER OVER FLATE BED WAYS 165 MM (6.1/2") 165 MM (6.1/2") 165 MM (6.1/2")
WIDTH OF BED 240 MM (9.1/2") 240 MM (9.1/2") 240 MM (9.1/2")
SPINDLE HOLE 40 MM (1.9/16") 40 MM (1.9/16") 40 MM (1.9/16")
NO. OF SPINDLE SPEEDS 8 (35 TO 855 RPM) 8 (35 TO 855 RPM) 8 (35 TO 855 RPM)
LEAD SCREW DIA. & PITCH 25 MM (1" × 4" TPI) 25 MM (1" × 4" TPI) 25 MM (1" × 4" TPI)
TAPPER OF CENTER IN HEAD AND T.S. MT.- 3 MT.- 3 MT.- 3
NO. OF METRIC THREADS AND RANGE (1 TO 6 MM PITCH) 13 (1 TO 6 MM PITCH) 13 (1 TO 6 MM PITCH) 13
NO. OF INCH THREADS AND RANGE (2 TO 24 TPI) 19 (2 TO 24 TPI) 19 (2 TO 24 TPI) 19
POWER OF AC MOTOR 3 P.H. (1440 RPM) 1 HP. 1 HP. 1 HP.
APPROX WEIGHT IN KG. 460 KG. 510 KG. 540 KG.
View Complete Details
Ask Latest Price & Details
