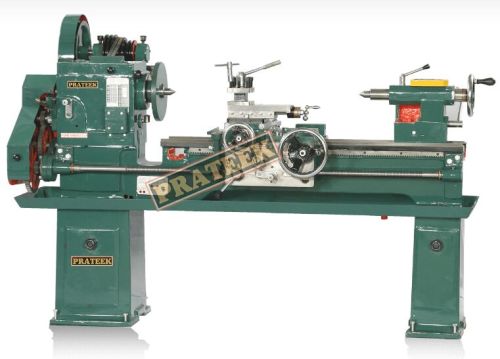

STANDARD ACC.: 8" CHUCK PLATE, 2 NOS DEAD CENTER, CENTER ADAPTER, TOOL POST KEY, CHANGE GEAR SET, (INCH & MM). MOTOR PULLY
EXTRA STANDARD & ELECTRICALS ACC.: STEADY REST, FOLLOW REST, FACE PLATE, CHUCK, ELE.MOTOR, RE SWITCH, MOTOR V-BELT
| Description | PRATEEK MD NO. 1 | PRATEEK MD NO. 2 | PRATEEK MD NO. 3 |
|---|---|---|---|
| LENGTH OF BED | 1370 MM (4' 6") | 1525 MM (5' 00") | 1830 MM (6' 00") |
| MAX A.B. CENTER | 508 MM (20") | 660 MM (26") | 965 MM (38") |
| MAX. SWING OVER BED. | 381 MM (15") | 381 MM (15") | 381 MM (15") |
| MAX SWING WITHOUT GAP | 610 MM (24") | 610 MM (24") | 610 MM (24") |
| MAX SWING OVER CROSS SLIDE | 203 MM (8") | 203 MM (8") | 203 MM (8") |
| HEIGHT OF CENTER OVER FLATE BED WAYS | 215 MM (8-1/2") | 215 MM (8-1/2") | 215 MM (8-1/2") |
| WIDTH OF BED | 280 MM (11") | 280 MM (11") | 280 MM (11") |
| WIDTH OF GAP IN FRONT OF FACE PLATE | 127 MM (5") | 127 MM (5") | 127 MM (5") |
| SPINDLE HOLE | 54 MM (2-1/8") | 54 MM (2-1/8") | 54 MM (2-1/8") |
| NO. OF SPINDLE SPEEDS & RANGE | 6 (68 TO 600) | 6 (68 TO 600) | 6 (68 TO 600) |
| LEAD SCREW DIA. & PITCH | 32 MM (1-1/4") 4 TPI | 32 MM (1-1/4") 4 TPI | 32 MM (1-1/4") 4 TPI |
| TAPPER OF CENTER IN HEAD AND T.S. | MT.- 4 | MT.- 4 | MT.- 4 |
| NO. OF METRIC THREADS AND RANGE | (1 TO 6 MM) 13 | (1 TO 6 MM) 13 | (1 TO 6 MM) 13 |
| NO. OF INCH THREADS AND RANGE | 2 TO 24 TPI) 19 | 2 TO 24 TPI) 19 | 2 TO 24 TPI) 19 |
| V-BELT DRIVE | DOUBLE V-BELT "B" | DOUBLE V-BELT "B" | DOUBLE V-BELT "B" |
| POWER OF AC MOTOR 3 P.H. (1440 RPM) | 1.5 HP. OR 2 H.P. | 1.5 HP. OR 2 H.P. | 1.5 HP. OR 2 H.P. |
| APPROX WEIGHT IN KG. | 675 KG. | 700 KG. | 775 KG. |
