Length Accuracy : For Cross head Travel +/- 0.1 mm
Load Range : With Load cell sensing 2 KN to 400 KN
Clearance forTension test : 50-200 mm
Ram Stroke : 200 mm
Power Supply : 440 Vac, 50 Hz, 15 HP
Safety Features : Emergency Stop, Ram Over Travel Protection by full length adjustable Limit Switch, Electronic Over Load protection max. upto 100% of capacity, Both side Fragment guard
Load Resolution : 1 : 10000
Operating /Test Modes : Rapid approach & slow Loading , User programmed Load Ramp KN/sec or Mpa/sec, displacement control um/sec

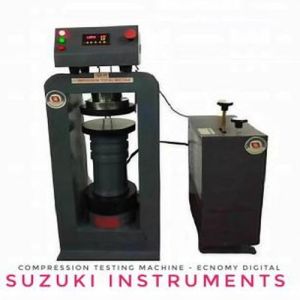

Purpose : Designed For Simple, Economic, And Reliable Testing Of Concrete's Compressive Strength
Material : Steel
Key Features : Meets IS:516, IS:14858 And ASTM, EN, BS Standards. Pace Rate Indicator For Stress Rate. Automatic Stress Determination And Display With Overload Safety Protection. Self-aligning Platen With Quick Change Accessories. Configurable Engineering Unit And Machi
System Description : Fully Welded Frame With Top Crosshead, Hardened And Polished Platens, Side Walls. Two-speed Pump For Fast Daylight Closure And Precise Control. Self-aligning Action And Spacers For Multiple Specimen Types. Integrated Digital Display Showing Force/stress I
