PT. Dx5 Printhead

Jakarta Selatan, Indonesia

• MOQ 2 Piece(s)

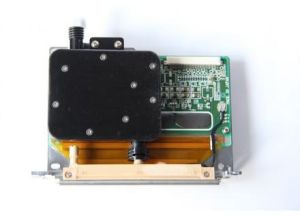

We are offering the seiko spt510 drop on demand piezo printhead is compatible with a wide-range of grand-format digital printers, including infiniti printers fy 3206. Fully equipped with 510 active nozzles for high-resolution (720dpi) and high-speed (35 pl) printing and steel-plate protection for a longer life, this durable printhead lasts 4-5 times longer than many common128 printheads. Used in ▶ icontek tw-3306ha 06ha 08ha tw-3304hd 06hd 08hd tw-m1 m3 ▶ infiniti fy-3304s 06s 08s fy-3304d 06d 08d fy-3204r 06r 08r fy-3204h 06h 08h fy-3206t 06t 08t fy-3204f 06f 08f fy-3204q 06q 08q ▶ phaeton ud-3204q 06q 08q ud -3204p 06p 08p ud-3204e 06e 08e ▶ crystaljet 100030005000400060009000-series (on spt510-35 heads) ▶ gongzheng gzk3204as 06as gzk3204ds 06ds the most popular head of seiko. Spt 51035 and spt510 50 have no external physical differences, that is exactly the same. Distinguishes them only marking, nameplates, labels.

• MOQ 2 Piece(s)

We are offering printed seiko heads are made on the basis of piezoelectric inkjet technology and are designed for integration into a variety of printing system. Their capabilities - high speed and large print width the head itself, combined with a long service life. Used in � crystaljet 5000-series (on spt255gs heads)

• MOQ 2 Piece(s)

We are offering print head model: spt-508gs(oil)variety ink droplets japanese seiko electronic printing technology widely used in variable data printing area like signage, textile, press and bar code printing. Suitable ink: water

• MOQ 2 Piece(s)

We are offering The Spectra Nova JA 25680 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line, at a 0.011 inch distance between nozzles. The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually. These Spectra heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty. The print module in which except for the head (Spectra Nova JA 25680 AAA) included: - Subtank (total vacuum - 750 mbar vacuum meniscus - 6, 3-8, 7 mbar) - The filter (8 micron) - heater - Interface Card (RS-422) As an active element of the print head module is a Spectra Nova JA 25680 AAA, then, accordingly, the unit repeats all the physical characteristics (except for weight and dimensions), set the head, that is, Spectra Nova JA 25680 AAA.

• MOQ 2 Piece(s)

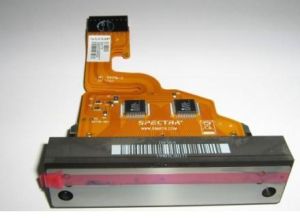

We are offering The Spectra Galaxy JA 25630 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 900 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 nozzles. The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles. The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually. These Spectra heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty. NOTE: This print head is suitable for VUTEk PressVu 180600 and 200600 printers. Note that the print head is supplied in the original Spectra sealed packaged and doesn't include the metallic base manufactured by VUTEk. This part can be reused from old heads. NOTE: On the VUTEk PressVu 200600, this print head is used for the colour ink channel. If you need the print head for the white ink channel on the VUTEk PressVu 200600, please refer to PPHSPGA50 (Spectra Galaxy JA 25650 AAA)

• MOQ 2 Piece(s)

We are offering the spectra® polaris pq-51285 aaa is a high performance inkjet printhead designed for a broad range of industrial and commercial printing applications. Building upon the legendary reliability and performance of the spectra nova and galaxy printheads, the polaris pq-512 aaa family of printheads uses field proven materials and a repairable design to deliver a long service life and consistent output. The polaris pq-51285 aaa printhead has 512 independent channels arranged in multiple rows at 200 dots-per-inch spacing for single color operation, or 100 dots-per-inch spacing for two color operation. The printhead is designed for binary jetting using a 80-picoliter native drop size with 8-meters per second nominal drop velocity for jetting fluids in the 8 to 20 centipoise range. Using versadrop jetting technology, the printhead is capable of adjustable binary operation at drop sizes up to 150 picoliters. This is the original spectra polaris print head and it carries the manufacturer product warranty. Q-class, versadrop technology. The head consists of a series of 4-modules can perform printing (independently) 1 or 2 ink channels. In accordance with this change certain physical characteristics such as the resolution of the head, the nozzle pitch, the print speed, and some others. Be careful in the study specifications.
