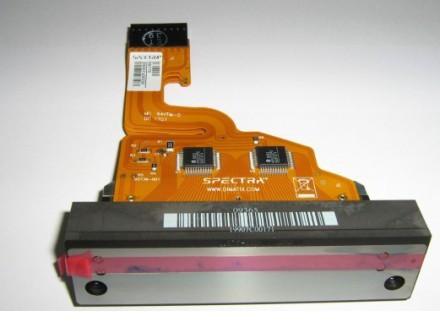

Spectra Galaxy JA 256/30 AAA

We are offering The Spectra Galaxy JA 25630 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 900 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 nozzles. The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles.
The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
These Spectra heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.
NOTE: This print head is suitable for VUTEk PressVu 180600 and 200600 printers. Note that the print head is supplied in the original Spectra sealed packaged and doesn't include the metallic base manufactured by VUTEk. This part can be reused from old heads.
NOTE: On the VUTEk PressVu 200600, this print head is used for the colour ink channel. If you need the print head for the white ink channel on the VUTEk PressVu 200600, please refer to PPHSPGA50 (Spectra Galaxy JA 25650 AAA)
