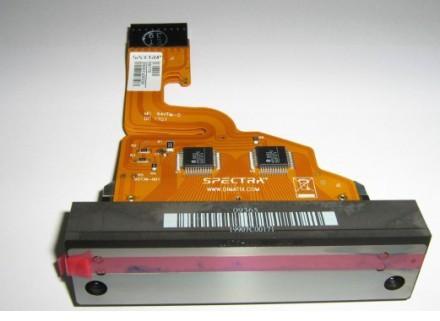

Spectra Nova PH 256/80 AAA

We are offering The Spectra Nova JA 25680 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets.
The nozzles are arranged in a single line, at a 0.011 inch distance between nozzles. The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
These Spectra heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.
The print module in which except for the head (Spectra Nova JA 25680 AAA) included:
- Subtank (total vacuum - 750 mbar vacuum meniscus - 6,3-8,7 mbar)
- The filter (8 micron)
- heater
- Interface Card (RS-422)
As an active element of the print head module is a Spectra Nova JA 25680 AAA, then, accordingly, the unit repeats all the physical characteristics (except for weight and dimensions), set the head, that is, Spectra Nova JA 25680 AAA.
