Extensometer

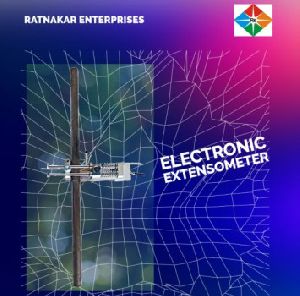

Al Alloy Electronic Extensometer, Brand Name : Ratnakar

• Specimen Diameter : 0.5 to 30mm
• Material : AL ALLOY
• Specimen Width : up to 30mm
• Accuracy Class : Best in Class
• Brand Name : Ratnakar
• Model Name/Number : REE2

Ratnakar Mechanical Extensometer For Industrial

• Frequency : 50 hz
• Feature : Application Specific Design
• Supply Type : Manufacturer
• Brand Name : Ratnakar
• Country of Origin : India
• Linearity : Best

Contact Type Long Travel Extensometer, Certification : ISO9001:2008

• Gauge Length Adjustable : 10 - 100 mm
• Supply Type : Manufacturer
• Country of Origin : India
• Certification : ISO9001:2008
• Type : Contact Type Long-Travel Extensometer
• Maximum Travel (Stroke) : 700 - 1100 mm
• Specimen Thickness Range : 0.1 - 10 mm

Metal Mechanical Extensometer, Packaging Type : Silver Or Metallic

• Application : Measuring Mechanical Properties Of Materials
• Measurement Capability : Change In Length Of Specimen By 1100 Mm Equals One Division On Dial
• Supply Type : Manufacturer
• Feature : Two Long Knife Edges At Top,Two Dial Indicators,Lower Knife Edges To Actuate The Dials,Clamp To Press Bars Against Specimen,Adjustable Upper Edges For Different Gauge Lengths,Measures Elongation Of Specimen Under Load
• Number Of Flower : Extensometer

Metal Electronic Extensometer, Packaging Type : Silver Gray

• Material : Metal
• Feature : Requires Electronic Signal Conditioning PCB,Accurate Results,Reliable Performance,Precision Engineered,Highly Durable
• Supply Type : Manufacturer
• Number Of Flower : Testing Instrument

Silver SRI 10-50C Aluminium Mechanical Extensometer, For Industrial Use, Certification : CE Certified

• MOQ : 2 Piece
• Width : 40-50mm
• Resolution : 0.01
• Certification : CE Certified
• Temperature Range : 10-50C
• Material : Aluminium
• Feature : Light Weight
• Brand Name : SRI
• Application : Industrial Use
• Supply Type : Manufacturer

Silver SRI 10-50C Aluminium Electronic Extensometer, For Industrial Use, Feature : Light Weight

• Width : 40-50mm
• Temperature Range : 10-50C
• Application : Industrial Use
• Supply Type : Manufacturer
• Country of Origin : India
• Display : Digital
• Brand Name : SRI
• Material : Aluminium
• Feature : Light Weight

Krutam Mechanical Extensometer

• Measuring Range : 0 - 3 mm
• Item Code : FXT-3
• Brand Name : Krutam
• Specimen Size : Round 1 to 20 mm or flat upto 20 x 20 mm
• Least Count : 0.01 mm
• Gauge Length Adjustable From : 30 - 120 mm ( 30 - 70 mm can also be given )

Electronic Extensometer

• Measuring range : :
• Accuracy : :
• 0.3 mV / V / mm. (approx) : Excitation
• 25 mm/50mm by means of extender : Resolution
• Class 1 as per IS 12872 / ISO 9513 : Type
• Gauge length : :
• 5 mm. : Nominal resistance of bridge
• Out-put : :
• : : 10 V. DC Nominal.

Stainless Steel Digital Tape Extensometer, For Industrial Use

• Country of Origin : India
• Application : Industrial Use
• Number Of Flower : Tape Extensometer
• Name : SISPL
• Certification : CE Certified, ISO9001:2008
• Supply Type : Manufacturer
• Material : Stainless Steel
• Product Name : Digital Tape Extensometer

Stainless Steel Borehole Extensometers, For Industrial Use, Certification : CE Certified

• Width : 10-20mm20-30mm
• Supply Type : Manufacturer
• Certification : CE Certified
• Packaging Type : Available In Many Colors
• Temperature Range : 10-50C
• Number Of Flower : Extensometer
• Material : Stainless Steel

Mild Steel Mechanical Extensometer

• Usage : Industrial
• Material : Mild Steel

Electronic Extensometer

Electronic Extensometer

• Excitation : + 5 VDC
• Least Count : 0.001 mm
• Thickness of Diameter of Specimen : 1 to 20 mm
• Output (Approx) : 20 mV full scale
• Gauge length (Adjustable) : 25, 30, 45 & 50 mm
• Measuring range (extension) : 0-2 mm

Mechanical Extensometer

• Thickness of Diameter Specimen : 1 to 20 mm
• Net Weight : 0.3 kg. Approx.
• Measuring Range : 0 to 3 mm
• Dimension B D H Approx. : 120 x 50 x 150 mm
• Least Count : 1/100 mm
• Gauge Length ( adjustable) : 30 to 120 mm

Electronic Mechanical Extensometer

• Measuring Range (Extension) : 0-2 mm
• Least Count : 0.001 mm
• Guage Length (Adjustable) : 25, 30, 45 & 50 mm
• Out put (Approx) : 20 mV full scale
• Thickness or diameter of specimen : 1 to 20 mm
• Excitation : + 5 VDC

Electronic Extensometer

• Measuring Range (Extension) : 0-2 mm
• Out put (Approx) : 20 mV full scale
• Excitation : + 5 VDC
• Guage Length (Adjustable) : 25, 30, 45 & 50 mm

Mechanical Extensometer

• Model : EM-1
• Dimensions - B x D x H : 120 x 50 x 150 mm Approx.
• It is essential to measure the elongation of test specimen under load, to have it's mechanical properties. FIE Extensometer Model EM-1 is intended to serve the above purpose. So that the knife edges bite the specimen to avoid any slip. The upper...

Lateral Extensometer

• DIAMETER : 0.002 mm x 10 mm
• This is for the determination of lateral extension of 150 mm dia x 300 mm high cement concrete cylinders while testing them in compression. The extensometer consists of two movable frames pivoted at one end. A dial gauge measures the lateral extension, and a removable spacer...

Lateral Extensometer

• Product Code:   EKE 373   This is for the determination of lateral extension of 150 mm dia x 300 mm high cement concrete cylinders while testing them in compression. The extensometer consists of two movable frames pivoted at one end. A dial...

TAPE EXTENSOMETER

• Reference Hook : 130mm long, 250mm long other length on request
• Calibration Frame : 1m
• Range : 30m
• Accuracy : ±0.01mm
• Resolution : 0.01mm

Borehole Rod Extensometer

• The rod extensometer monitors changes in the distance between one or more downhole anchors and a reference head at the borehole collar. Typical applications include: Monitoring settlement in foundations. Monitoring subsidence above tunnels and...

Mechanical Extensometer, Feature : Durable

• Net Weight : 0.3 kg Approx.
• Thickness or diameter : 1 to 20 mm
• Feature : Durable
• Gauge Length (Adjustable) : 25 to 120 mm
• Measuring Range : 0 to 3 mm
• Least Count : 1/100 mm

Electronic Extensometer, Feature : Durable

• Supply Type : Manufacturer
• Output : 0.3 mV / V / mm. (approx)
• Specimen Diameter : 0.5 to 30mm
• Body Material : Aluminium
• Resolution : 0.001 Mm
• Measuring Range : 3mm
• Specimen Width : up to 30mm

Long Travel Extensometer, For Industrial Use, Feature : Durable

• Country of Origin : India
• Resolution : 0.01 mm
• Feature : Durable
• Supply Type : Manufacturer
• Maximum Gauge length : 600 mm

Mechanical Extensometer, For Industrial, Commercial

• Flat Specimen : 1 mm to 20 mm
• Least Count of Measurement : 0.01 mm
• Round Specimens Diameter : 1 mm to 20 mm
• Gauge Length : 30 mm to 120 mm
• Maximum Elongation : Up to 3 mm
• Application : Industrial, Commercial

ELECTRONIC EXTENSOMETERS

• Measuring range : 5 mm.
• Accuracy : Class 1 as per IS 12872 / ISO 9513
• This instrument is to be used on Tensile or Universal testing machines to find out Proof stress & Young’s modulus values. In case of many brittle materials such as high carbon steels, alloy steels, light aluminium & magnesium alloys, it is...

Electronic Extensometer

• Our offered Electronic Extensometer is acknowledged, by clients, for its apt functioning in various industrial processement. We design them with the support of exports, which have synchronized many improved features that make them apt for these...

Mechanical Extensometer

• Application : Used for measuring young's modules, proof stress or yield stress
• Thickness or diameter of specimen : 1 mm to 50 mm round & flat Bars
• Measuring Range (Extension) : 0-3 mm, 0-5 mm
• Certification : IS:12872:2011 & ISO 9513:1999, ASTME-83
• Guage Length (Adjustable) : 30 mm to 120 mm. 200 mm, 300 mm adjustable up to 600 mm with suitable specimen holding brackets
• Least Count : 0.001 mm, 0.010 mm

Electronic Extensometer

• Gauge Lenght (Adjustable) : 25, 30, 45, 50, 25.4, 62.5, 70, 80, 160, 200, 300 mm
• Least Count : 0.001 mm
• Measuring Range (Extension) : 0-2 mm, 0-5 mm, 0-10 mm
• Out Put (Approx) : 20 mV full scale
• Thickness or diameter of specimen : 1 to 50 mm round & flat Bars
• Excitation : ± 5 VDC

Electronic Extensometer

• length : 25 mm
• Serial port (RS-l31) communication is available with Windows based operating software Wide range of data entry for easy test setup Unit interchangeability for input and results as per standard. Extensive graphics, curve tracing Results printing formats Output parameters include...

ELECTRONIC EXTENSOMETERS

• AlE Offers Auto Instruments & Engineers make Electronic Extensometer AIE-EE2 to measure material extension with a Resolution of 1- Micron. Strain Gauge type Extensometer is to be used up to Elastic Limit to Determine Important Parameters Like 0.1 %,...

Glass Electronic And Mechanical Extensometer, For Industrial Use, Width : 10-20mm20-30mm

• Temperature Range : 10-50C
• Number Of Flower : extensometer
• Material : Glass, Stainless Steel
• Display : Analog, Digital
• Width : 10-20mm20-30mm
• Application : Industrial Use

Tape Extensometer

• Tape length : 30 m or 50 m
• LCD resolution : 0.01 mm
• Item Code : EDS-80
• Precision in measurement of change : ± 0.2 mm
• Coefficient of linear expansion : 11 ppm/° C (6.1 ppm/° F)
