Fire Rated Doors are ideal for wall openings where headroom is restricted and frames can butt up to a ceiling or fix directly to overhead lintels. The counterbalance on the fire sliding doors are linked to the fuse and closes the door only when the...
Fire Rated Sliding Doors are available in single and double leaf doors with a maximum size of 8500 mm x 6000 mm and fire resistant to DIN 4102 UNI 9723.Ideal for large wall openings, also where headroom is limited frames can butt up to a ceiling or fix directly to overhead...
The counterbalance on the fire sliding doors are linked to the fuse and closes the door only when the fuse breakdowns at a temperature of 74°C. The fire rated doors remains in a ‘normally open’ position and in the event of fire accident it...
Door Panel : Sandwich panel coated with GI pre coated sheets in filled with Rockwool/ Mineral wool insulation
door panel thickness of 58mm & density of 48kg/m3Door.
Operation through : Wire rope with counter weight mechanism
Mounting Location : Inside / outside
Working mechanism : Works on counterweight mechanism
Door activated via fusible link
Fire withstanding capacity : 1 Hour/ 2 Hour
Width Min. /Max. : 2000 mm to 5000 mm
Door Mounting : Top mounted Heavy duty Galvanized track
Door seal : Overlapping of 100 mm in height and 200 mm in width
Feature : The door complies with BS 476 Part 22 tested by CBRI. and Also available with easy see through fire proof vision window.
Width Min. /Max. : 2000 mm to 6000 mm
They are for openings that require a two to four hour fire rating and are available in automatic closing mode that means the door close on their own in the event of a fire accident....

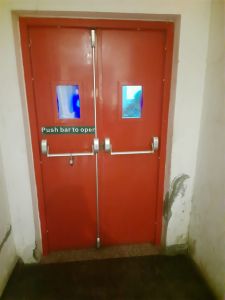

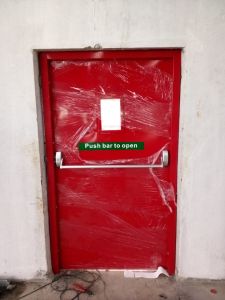

Fire Door includes standard size Vision panel of 6 mm thick Fire Rated Glass(Fire Rated Wired Glass, Pilkington UK) with Double Skin Shutter of 44 mm thick (GI sheet on both sides). They also include provision for fixing Panic Bar, SS D-Type or...
2Hrs. Fire Rated Metal Doors are tested to BS 476 Part 22 and approved by CBRI (Roorkee) & Warrington Fire (UK). GMP Doors are also tested by underwriter Lab (US) test to standard UL 10B & UL 10C dependant on construction....
Fire sliding doors are ideal for wall openings where headroom is limited and frames can butt up to a ceiling or fix directly to overhead lintels. The counterweight on the door is linked to the fuse and closes the door only when the fuse breaks at a...
Composite fire resistant auto sliding fusible link operated door (2 hours fire rated) fabricated from 1.25 mm thick gi sheet cladded and having thickness of 48 50 mm duly insulated with core material and comprising of fusible link rated for 68...
