H.M. TECHNOLOGY SRL. ITALY

Italy

• MOQ 20 Set(s)
• Brand NameH.M. TECHNOLOGY SRL.ITALY

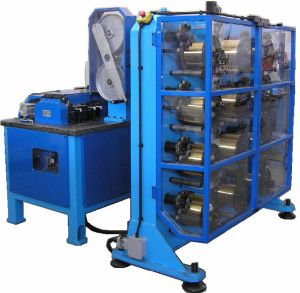

We are offering multi wire winder machine. Technical specifications 12position creel , constant braking of bobbins from 700 g to 1600 g, the calibration of the brakes after changing of the bobbin is not necessary like in all other, machines, the bobbins on the creel carrier are fixed with a tailstock system, all wire guide wheels are on bearings and made with hardened steel, stratifying group with visual protection , control panel with electronic console placed on the operator side , 1000 mmin maximum winding speed, stratification pitch from 0, 5 to 10 mm, 12 kw installed power, ce mark, certificate of conformity, user manual new features of the machine: pneumatic cylinder braking system, pneumatic pressure gauge calibration, no need for periodical maintenance , no need for brake calibration, long lasting bearing lubrication, the operator can set on the control panel: the wire diameter, the flange’s external diameter, the winding speed, the width of the bobbin, the number of wires, the spiraling pitch.

• MOQ 1 Set(s)
• Brand NameHM.TECHNOLOGY SRL,ITALY

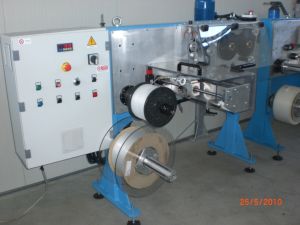

We are offering Hose Embossed Marker. Specifications Technical Characteristics • Frame made by tubular steel FE42 properly electro-welded . • Aluminum Sheet are used for tool and setting all mechanical components . • Marking system by flange n. 1 characters (brass) diameter 220 by flange , and 1 flange contrast for the same diameter. • Nastrin in pp 10mm x 0.4 mm • Flange door characters are realized with a locking system by tree hard type coupling wing • Stratification by traversing units Uhing with movement of the ribbon holder on the system of linear guides and ball screws, security sensors. • Speed of the machine from 0 to 70 Mt’ maximum. • Sistema di ballerino elettronico per la sincronizzazione dei due aspi motorizzati. • Electrical panel on the machine • Pulpit commands • Marking or Branding CE • For Maintenance Manual in (Italian language or other language it’s by the demands from customers)

• MOQ 1 Set(s)
• GreenYellow

Industrial hose reel for packaging from 6 60 meters range of pipes producible ø 1 "- ø 12" handling cart deposition on products in linear axes possibility of tailstock for the soul and its application in pull up to 5000 kg towers of deposit products fully automated multi-functional voltage control products in writing and recovery auto polyethylene intermediate touchscreen control panel and highly specific software, cots support intermediate translating and electrically adjustable in height. products used: leaflets rubber rolls of sizes up to 600mm in various hardness and width and thickness, shooting maximum performance in 25 kg gaffer fabrics and steel cord and bandages (pull max 100 kg) rope and yarn of copper or textile yarn single steel wire from ø2 mm - ø 8 mm price euro 245, 000.00 machine completely in stainless complete electrical system plc siemems protection systems and safety complete with ce manual and electrical wiring diagrams and tires machine as your request color ral 60117015 terms of delivery: payment: 50% upon order 50% letter of credit to the shipment of goods delivery: 180 days order date and receipt bank testing: at our company with your technicians position: excluded transportation: not included validity: 30 days. By this

• MOQ 1 Set(s)
• Brand NameHM.TECHNOLOGY SRL, ITALY

Selling Braiding Machine .  N. 01 BRAIDING MACHINE Mod. HM 20 x 2220 CNC. SLIDING Technical features  Steel welded structure.  N. 02 Deck containing: - N. 02 steel track hardened and ground with crosses also them worked and hardened. - Shuttles made with CNC machine, subsequently hardened and ground. screwed on to the machine. - Ring guide wire steel fabricated, hardened with put on 0, 2 – 0, 3 mm of hard chrome. - Ring wire breaking. - Protection carter. - Alimentation system for rubber strep from roll with rubber strep end proximity sensor. - N. 02 Geared motors bolted directly on the plateau and transmission on the pads by gears. - N. 02 Lubricating oil raising tanks - N. 02 Lubrication oil pump. - Visual oil level control system. - N. 40 Carriers friction, calibration range (5kg-13kg), head with quick release. - Braided step to 100 mm with electronic digital regulation on the display on the machine. - Installed power: one units of 7, 5 kw. N. 01 General electricelectronic control panel Digital control: control system by computer management that allows you to introduce and quickly save all the data and production parameters. Any adjustment is managed by the PLC board which, by acting on the encoders of the motors in real time, instantaneously restores the conditions set for the correct operation of the line

• MOQ 1 Set(s)
• BlueBLACK

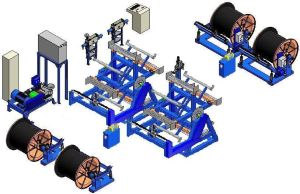

We offer High Pressure Tubes Testing Line The line is composed of the following machines and equipments: 1 kamat 1500 bar 38 lmin punp group with high – pressure system technical specifications: piston diameter (mm): 18 maximum calibration pressure (bars): 1500 total capacity (lmin): 38 three piston positive-displacement pump in special ceramic, with seal cooling system, with the following specifications: stainless steel head 1.4313 force feed lubrication with compact 6 gearcase incorporated reduction gear i=4.13 pneumatic pressure regulator 0-1500 bar safety valve with blowout disc (3 discs) oil bath gauge 0-2500 bar onoff valve sitec 2000 bar sitec 3 916” 2000 bar nonreturn valve high pressure tubes, positioned on the machine bed servo ventilated ac 4 poles b3 55 kw motor with encoder machine bed made with welded fe360 steel profiles aisi316 stainless steel 500 liter tank, complete with valves, overflow pipe, electric level and pedestal for fixing on the machine bed 1 couple of scowil with two – jaw self – centering chuck mod. S120ie 1 water expeller for extraction and testing system 1 pneumatic floating tube pincher 1 disk cutter for plaited tubes pvc non-skid floor safety barriers 1 electric panel .

• MOQ 1 Set(s)

We are offering spiral hose making machine. turntable each made up of:  plateau of aluminium alloy;  hydro pneumatic braking;  automatic bobbin charge;  operation by electric motor complete of mechanical ventilation, encoder, thermic paste.  rubber strip supply end by photocell;  power rating about 70 kw  ce rules protection by export & sales manager h.m. Technology s .r .l , italy md. Moniruzzaman e- mail_ moni@hmtechnology.it exporthmtec@hotmail.it cel_0039 3889359233 daily production spiral hose 1” 4sp - 4sh from to phase production (m) 24:00 4:00 production 2400 4:00 7:00 machine load - 7:00 11:00 production 2400 11:00 14:00 machine load - 14:00 18:00 production 2400 18:00 21:00 machine load - 21:00 24:00 production 1300 total daily production: 8500 m at average speed 160 rpm.

• MOQ 1 Set(s)
• GreenYellow

N ° 01 semi-automatic welding Spindle and Mandrel cleaner hose from ¼ "to 1" Model PAA25 - Locking jaws chucks m - Group brings Calibrator - Control panel of the pneumatic - Cycle time: 10 sec. - 03 Calibrators as your specifications - Certificate of Compliance - CE - User's Manual and Maintenance - Pneumatic Diagram - Color Machine Ral (as your specification) - Color guard Ral 1007 Total Dimensions (approx.) Length 700 mm Width 500 mm Height 1100 mm
