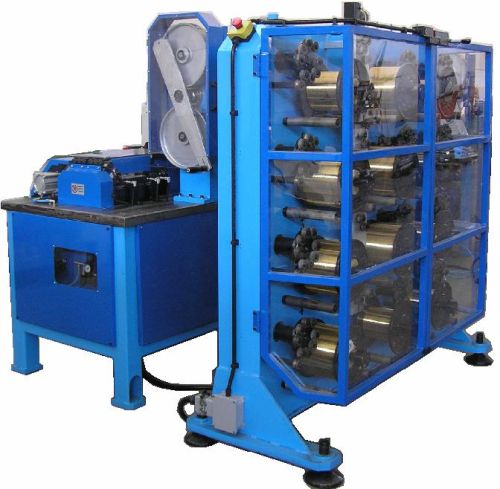

Multi Wire Winder Machine, Brand Name : H.M. TECHNOLOGY SRL.ITALY

We are offering multi wire winder machine. Technical specifications
12position creel ,constant braking of bobbins from 700 g to 1600 g, the calibration of the brakes after changing of the bobbin is not necessary like in all other, machines, the bobbins on the creel carrier are fixed with a tailstock system, all wire guide wheels are on bearings and made with hardened steel, stratifying group with visual protection , control panel with electronic console placed on the operator side ,1000 mmin maximum winding speed, stratification pitch from 0,5 to 10 mm, 12 kw installed power, ce mark, certificate of conformity, user manual
new features of the machine: pneumatic cylinder braking system, pneumatic pressure gauge calibration, no need for periodical maintenance , no need for brake calibration, long lasting bearing lubrication, the operator can set on the control panel: the wire diameter, the flange’s external diameter, the winding speed, the width of the bobbin, the number of wires, the spiraling pitch.
