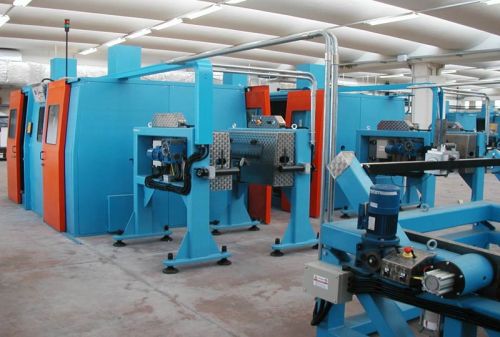

Braiding Machine, Brand Name : HM.TECHNOLOGY SRL, ITALY

Selling Braiding Machine .
 N. 01 BRAIDING MACHINE Mod. HM 20 x 2220 CNC. SLIDING
Technical features
 Steel welded structure.
 N. 02 Deck containing:
- N. 02 steel track hardened and ground with crosses also them worked and hardened.
- Shuttles made with CNC machine, subsequently hardened and ground.
screwed on to the machine.
- Ring guide wire steel fabricated, hardened with put on 0,2 – 0,3 mm of hard chrome.
- Ring wire breaking.
- Protection carter.
- Alimentation system for rubber strep from roll with rubber strep end proximity
sensor.
- N. 02 Geared motors bolted directly on the plateau and transmission on the pads by gears.
- N. 02 Lubricating oil raising tanks
- N. 02 Lubrication oil pump.
- Visual oil level control system.
- N. 40 Carriers friction, calibration range (5kg-13kg), head with quick release.
- Braided step to 100 mm with electronic digital regulation on the display on the machine.
- Installed power: one units of 7,5 kw.
N. 01 General electricelectronic control panel
Digital control: control system by computer management that allows you to introduce and
quickly save all the data and production parameters. Any adjustment is managed by the PLC board which, by acting on the encoders of the motors in real time, instantaneously restores the conditions set for the correct operation of the line
