Isoltech srl

Verdellino, Italy

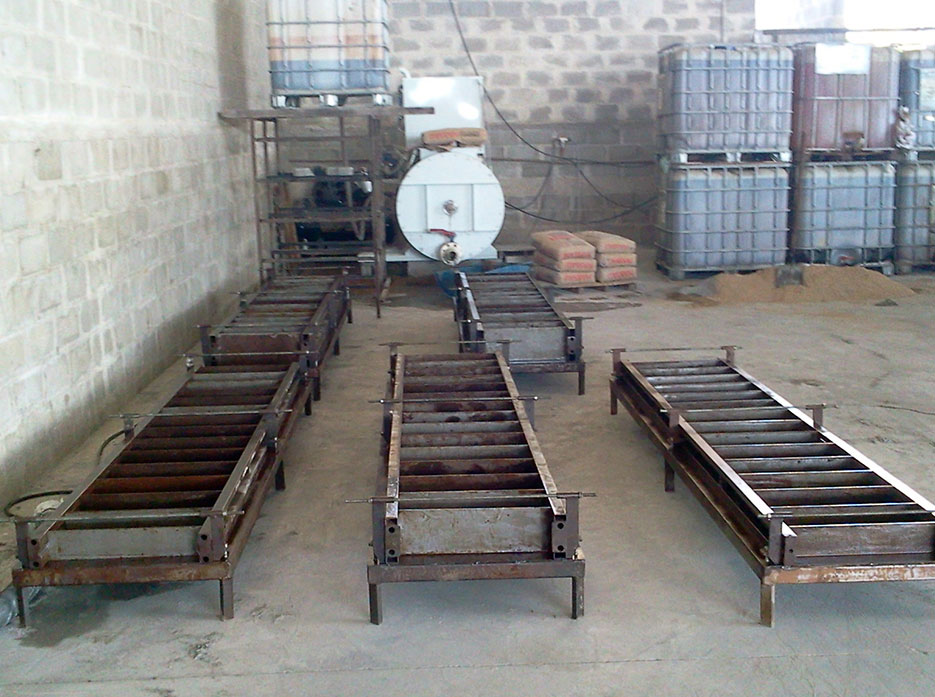

TECHNOLOGY FOR MASONRY BLOCKS Manual Plant to produce Cellular Concrete BlocksThe manual plant to produce cellular concrete blocks consists simply of the machine IBS 2008 and manual moulds with knives. The production process or its use does not release any harmful effluents to the environment. This is also an alternative to plywood partitions and thus control deforestation. CLC blocks are also know as Foam concrete blocks. We provide turnkey solutions for manufacture CLC blocks. With manufacturing CLC block equipments, we are providing installations and training to staff of the clients.

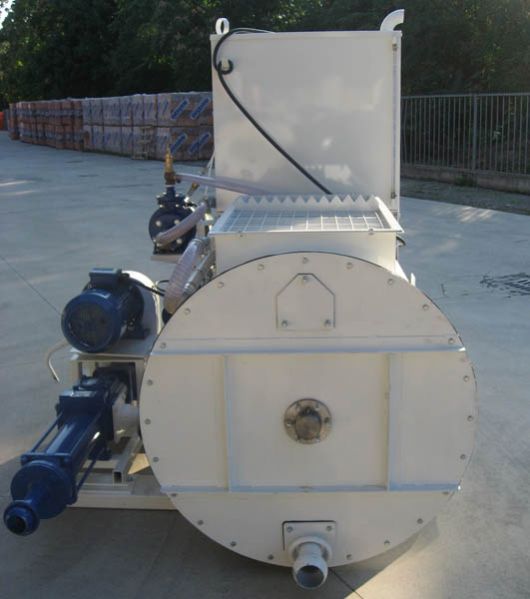

We are offering fixed plant for the production of cellular concrete with sand. ibs 2008: fixed plant for the production of cellular concrete with sand. The foam, produced by its specific generator, is conveyed through pipes to the mixer, where it is mixed with the mixture of concrete. Mixed cellular concrete is brought to a mould through a discharge pipe or a pump. The system produces automatically cellular concrete according to the density predetermined. The cellular concrete mixer ibs 2008 is a medium-sized system with manual feeding (which can be made automatic). Ibs 2008 is specifically designed to produce cellular concrete with sand of medium density and it is ideal to produce foam concrete blocks thanks its output between 7 and 10 m3h.Ibs 2008 capacity is 950 l and it is supplied with a horizontal mixing blade, foam generator, a water pump with timer for a constant output, a 300 l extra tank, an electrical panel and a 4 hp air compressor. automation for ibs 2008 the level of automation of ibs 2008 can be partial or total, as it is possible to create an automatic supply of raw materials around it, for an industrial production with no need of assistance from specialized staff or long adjusting before every batch.In this configuration ibs 2008 becomes the heart of the production in a more complex, automatic system, as in the picture below.ibs 2008 machine can be equipped of others accessories, as the loading bucket (ibs-s) to realize fluoplan, increment d 1300 or casts in situ.

innovative technology to produce cellular concrete. It's an innovative technology based on the concept of using only recycled aggregates, with no consumption of natural resources.The basic ingredients are a powerful foaming agent, of new generation, called Isocem S X, and a fluidizing additive, and effectively dosed, in balance with the other basic components. Isoltech made a patent application for this technology. Taking full advantage of the resources that the modern technology of building chemicals provides, you can get in addition to the savings, the maximum mechanical performance obtainable today.

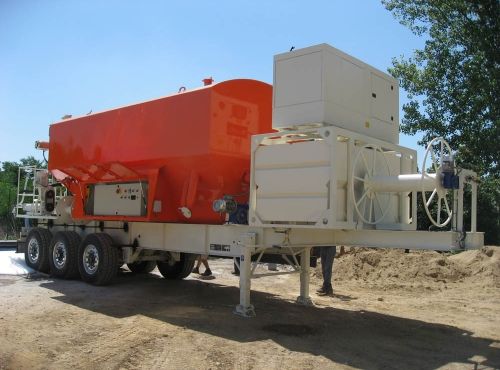

We are offering cellular lightweight concrete mixer. c2002 a cellular lightweight concrete mixer for screeds and insulation:mixing and pumping with heavyweight performances. C2002 is equipped with an internal current generator, a self-diagnosis tool connected to a sim card and a modem in the electrical panel. C2002 guarantees not only full autonomy in the construction site, but also a completely safe job, with real-time technical assistance. Thanks to its generous size, with loads up to 28 t of cement and 3000 liters of water and an accurate design for a perfect functionality, the plant for the production of cellular lightweight concrete c2002 offers excellent productivity in the mixing and pumping of cellular concrete, with a continuous output of 35 m3h. the system can be assembled on a 4-axle tractor or on a semitrailer. Silo capacity 280 quintalswater capacity 3000 lfoaming agent capacity 200 lset of pipes 70 mcoiler electricoutput 35 m3hpiston compressor 10 hp

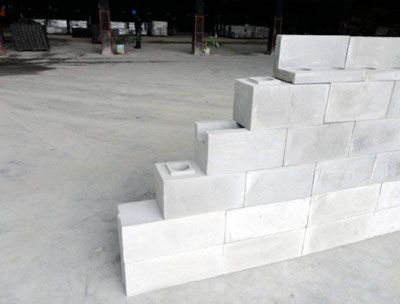

We are offering seismic 3c blocks. Isoltechs 3c blocks: for a faster, cleaner and more precise assembly. Once the first line of blocks is levelled, they can be mounted dry, with no need for any further system to keep the wall plumb: this job is done by the mf (malefemale) joint of 3c blocks, offering many advantages: 1) lower use of plaster, as blocks are perfectly aligned and no surface corrections are needed; 2) lower use of glues (which are only needed on the vertical faces of blocks);3) extraordinary savings on skilled labour and of course time;4) no need for bearing pillars (in buildings up to 3 floors);5) the male-female shape (of mf blocks) allows the mounting of dry walls. And after, a liquid mortar with sand and cement is poured into the columns made by the vertical holes of overlapping blocks. Inserting iron reinforcement bars (with u-blocks) allows the building of anti-seismic walls; also, slabs can be reinforced (with l-blocks) thanks to the special joint of these blocks for spandrel beams.6) blocks can be easily cut with a conventional saw;7) there are also the following special pieces: raceway block for vaults perforated blocks for vertical structures.The different components of the isoltech system and the housings for iron reinforcement bars, both vertical and horizontal. In the tests performed at the university of bergamo, isoltech blocks exceeded expectations. 3c blocks have continuous cylindrical cavities and this feature gives them particular anti-seismic properties. thanks to these cavities (and to u-blocks with a duct for horizontal reinforcement bars, see pictures 2 and 3), the whole structure of the walls can be reinforced with iron both horizontally and vertically. Also, as the mechanical resistance of the reinforced wall relies on these cylindrical columns filled with iron and mortar, the density of blocks made of non-autoclaved cellular concrete can be very low.
