We offer a complete product range of Gear Hobbing Machine

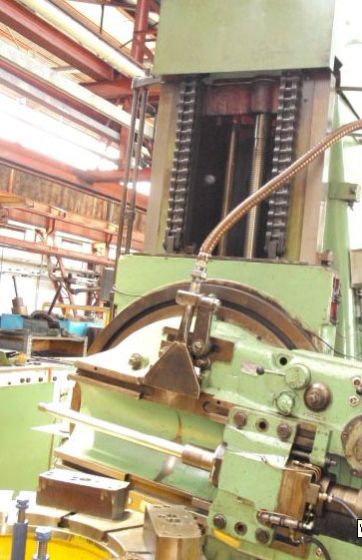

Gear Hobbing Machine

We are one of the most trusted suppliers of Gear Hobbing Machines. These Gear Hobbing Machines are available with us in large range of sizes. Our Gear Hobbing Machines are ideal for cutting all kind of gears. Sturdy make and excellent performance are the key features of Gear Hobbing Machines supplied by us.

Accessories with Machine

01 No. Standard Head
01 No. Tangenzial Head
01 No. special head for single teeth cutting with milling cutter up to M50 (Dia 450 x 100)
01 No. Head for internal teeth cutting (Dia. 400 x 95)
01 No. Extra Table Dia. 3820 mm (Can be put on the table of machine
01 Set Complete Change Gears

Table Diameter	2400 mm
Max. workpiece External Diameter	3200 mm
Max. workpiece Internal Diameter	3600 mm
Diameter of hole of Table	500 mm
Max. Table Loading Capacity	30000 Kg
Longitudnal Travel of Col.	1500 mm
Vertical Travel of Head	1000 mm
Max. Model	34
Max. RPM of HOB	52/min.
Max. Height of Hob from Table	700 mm
Max. Height of Hob From Table	1700 mm
Tangenzial Travel of Hob (with Tangezial Head)	700 mm
Max. Dimention of Hob	350 x 450
Diameter of Spindles for hobs	40-50-60-80-100 mm
