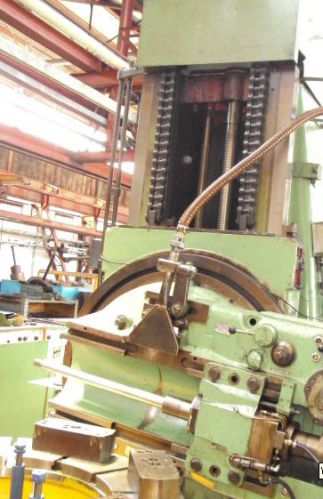

Contact SupplierWe are one of the most trusted suppliers of Gear Hobbing Machines. These Gear Hobbing Machines are available with us in large range of sizes. Our Gear Hobbing Machines are ideal for cutting all kind of gears. Sturdy make and excellent performance are the key features of Gear Hobbing Machines supplied by us.
Accessories with Machine| Table Diameter | 2400 mm |
|---|---|
| Max. workpiece External Diameter | 3200 mm |
| Max. workpiece Internal Diameter | 3600 mm |
| Diameter of hole of Table | 500 mm |
| Max. Table Loading Capacity | 30000 Kg |
| Longitudnal Travel of Col. | 1500 mm |
| Vertical Travel of Head | 1000 mm |
| Max. Model | 34 |
| Max. RPM of HOB | 52/min. |
| Max. Height of Hob from Table | 700 mm |
| Max. Height of Hob From Table | 1700 mm |
| Tangenzial Travel of Hob (with Tangezial Head) | 700 mm |
| Max. Dimention of Hob | 350 x 450 |
| Diameter of Spindles for hobs | 40-50-60-80-100 mm |
