Simpedil S. R. L.

• MOQ 1 Piece(s)
• CUTTER AND BENDERREBAR CUTTING AND BENDING MACHINE

We are offering combined machine combined machine tp32/36 3-phase measures : cm. 90 x 100 x h. 100 weight : kg. 400 oil : kg. 9 electric motor : 4 hp / 3 kw rounds/minute : 9 bending capability: r. = 65 kg. / mm² r. = 85 kg. / mm² 1 ø 34 2 ø 24 3 ø 20 1 ø 32 2 ø 26 3 ø 18 cutting capability: r. = 65 kg. / mm² r. = 85 kg. / mm² 1 ø 28 2 ø 20 3 ø 16 1 ø 26 2 ø 18 3 ø 14 new combined machine mod. Tp32/36 evolution reduction gear & cutting block in 1 unique block made of spheroid cast iron standard equipment · 1 hardened square pin; 1 hardened stirrup bending pin; 3 hardened bush holding pins; 1 checking block; 1 pedal for remote control; 1 bush ø 50; 1 bush ø 60; 1 bush ø 70; 1 bush ø 80; 1 bush ø 95; · 2 long saddles · rotating plate ø 365mm; it can support bushes up to ø 225mm for bending radius up to 7 times the diameter of the bar to be bent. · central lubricating system through which the operator will lubricate once a day only one spot and in this way the oil will be spread itself to all points in need. · blades in hardned steel.

• MOQ 1 Piece(s)
• CUTTING MACHINECUTTER
• SHEARING MACHINEREBAR CUTTER

• MOQ 1 Piece(s)
• CUTTING MACHINEREBAR CUTTING MACHINE

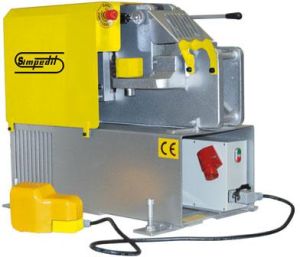

• HYDRAULIC CUTTERHYDRAULIC CUTTING MACHINE

• MOQ 1 Piece(s)
• BENDING MACHINEREBAR BENDER

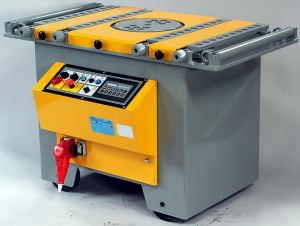

We are offering bending machine bending machine p55 ã¢ï¿½ï¿½specialã¢ï¿½ï¿½ 2 speed 3-phase measures : cm. 140 x 95 x h. 93 weight : kg. 800, 00 oil : kg. 13, 00 electric motor : 5, 5 hp / 4 kw 2-speed turns / minute : 5, 5/11 bending capability r. = 65 kg. / mmã�â² r. = 85 kg. / mmã�â² 1 ã�� 45 2 ã�� 36 3 ã�� 28 1 ã�� 40 2 ã�� 34 3 ã�� 26 standard equipment angle control electric panel to program up to 5+5 bends per cycle. 1 hardened square pin; 1 hardened stirrup bending pin; 3 hardened bush holding pins; 1 checking block 1 pedal for remote control; 1 bush ã�� 60; 1 bush ã�� 70; 1 bush ã�� 80; 1 bush ã�� 95; 1 bush ã�� 120; 1 bush ã�� 130; 4 adjustable saddles in 38ncd4 special stee

• MOQ 1 Piece(s)
• BENDING MACHINEBAR BENDING MACHINE

We are offering bending machine bending machine mod. P42 3-phase measures : cm. 105 x 95 x h. 89 weight : kg. 600, 00 oil : kg. 13, 00 electric motor : 380 volt – 4 hp / 3 kw turns / minute : 6 bending capability r. = 65 kg. / mm² r. = 85 kg. / mm² 1 ø 36 2 ø 28 3 ø 24 1 ø 34 2 ø 26 3 ø 22 standard equipment 1 hardened square pin; 1 hardened stirrup bending pin; 3 hardened bush holding pins; 1 checking block 1 pedal for remote control; 1 bush ø 50; 1 bush ø 60; 1 bush ø 70; 1 bush ø 80; 1 bush ø 95; 1 bush ø 120.
