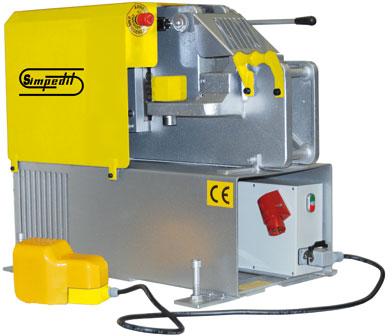

Hydraulic Cutting Machine

We are offering hydraulic cutting machine
hydraulic cutting machine mod. Hc45
measures : cm. 97 x 60 x h. 80
weight : kg. 380,00
oil typ : hd10/ hd20
oil quantity: 20 lt.
electric motor: 380 volt – 50hz
5,5 hp / 4 kw
cut speed: 30/cpm
cut height: 52 cm
cutting capability r. = 65 kg. / mm² r. = 85 kg. / mm²
1 ø 35 2 ø 25 3 ø 18 1 ø 34 2 ø 22 3 ø 16
standard equipment
1 set composed of two blades in hardened steel, already fitted on the machine
1 pedal for remote control
1 electric panel in metallic box with ip55 protection
technical features
• operation with lever or with electric pedal;
• “made in germany” components (bosch-rexrot hydraulic system and moeller electric panel);
• direct action piston, with double speed and double effect, endowed with special gaskets;
• machine produced in conformity with ec normes currently in force;
• two years warranty, including all the machine components.
