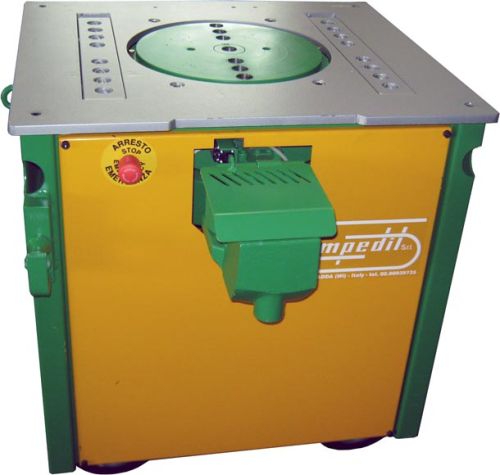

Combined Machine

We are offering combined machine
combined machine tp32/36 3-phase
measures : cm. 90 x 100 x h. 100
weight : kg. 400
oil : kg. 9
electric motor : 4 hp / 3 kw
rounds/minute : 9
bending capability:
r. = 65 kg. / mm² r. = 85 kg. / mm²
1 ø 34 2 ø 24 3 ø 20 1 ø 32 2 ø 26 3 ø 18
cutting capability:
r. = 65 kg. / mm² r. = 85 kg. / mm²
1 ø 28 2 ø 20 3 ø 16 1 ø 26 2 ø 18 3 ø 14
new combined machine mod. Tp32/36 evolution
reduction gear & cutting block in 1 unique block made of spheroid cast iron
standard equipment
· 1 hardened square pin; 1 hardened stirrup bending pin; 3 hardened bush holding pins; 1
checking block; 1 pedal for remote control; 1 bush ø 50; 1 bush ø 60; 1 bush ø 70; 1 bush
ø 80; 1 bush ø 95;
· 2 long saddles
· rotating plate ø 365mm; it can support bushes up to ø 225mm for bending radius up to 7
times the diameter of the bar to be bent.
· central lubricating system through which the operator will lubricate once a day only one
spot and in this way the oil will be spread itself to all points in need.
· blades in hardned steel.
