Automobile Garage Equipment

Leading Manufacturer, Supplier & Retailer of Wheel Balancer for Cars S3140R and 3-D Wheel Aligner S300ATS.B.

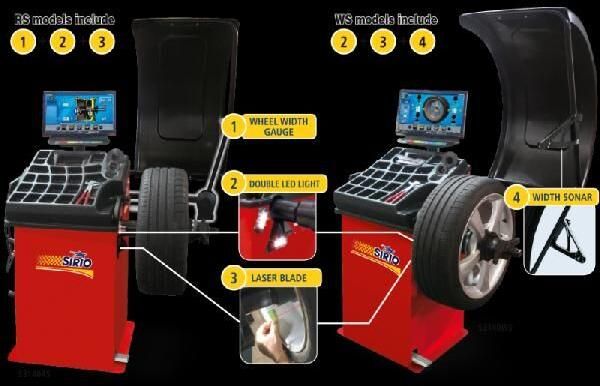

Wheel Balancer For Cars S3140R

Country of Origin 110-230 V
Weight 130 Kg
Wheel diameter 10” ÷ 30” - 10” ÷ 26” Automatic
Frequency 50-60 / 1ph

We are sprawling over a large area with exceptional warehouse, which is well-equipped with cutting-edge technology and up-to-date management systems. With automated warehouse systems, we efficiently serve the bulk requirements. Owing to our flawless transit system, we are capable of delivering the orders within the promised time frame.

Technical Data

Colour monitor TFT 17'' – Industrial PC
Automatic cycle
Complete with wheel hood, car cones and quick-fit nut.
Rim diameter: 10” ÷ 30” / 10” ÷ 26” Automatic
Rim width: 1.5” ÷ 22” kW
Max wheel weight: 70 kg
Read-out accuracy: 1 g
Cycle time: 6 sec
Rotation speed (rpm) <100:
Power supply: 110-230 V
50-60 / 1ph

View Complete Details

Ask Latest Price & Details

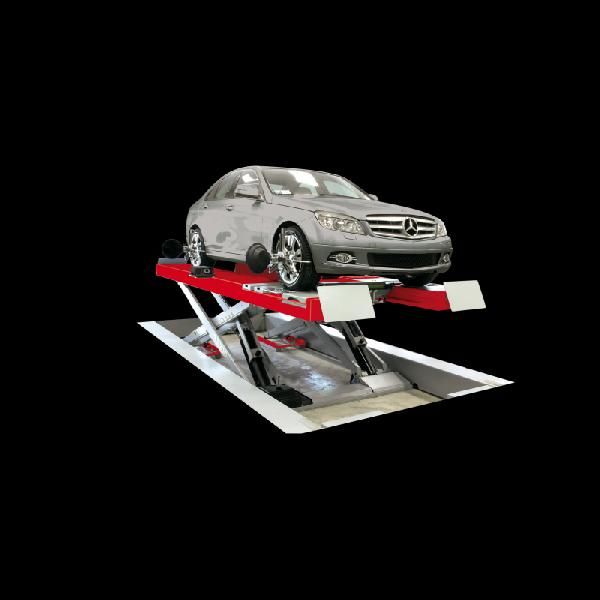

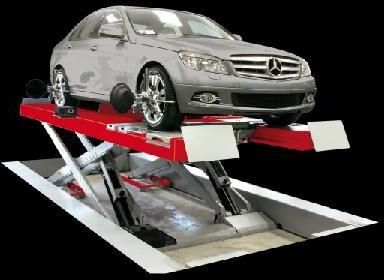

3-D Wheel Aligner S300ATS.B

Availability 182 gm

Apart from online payment processing methods, we also facilitate payment through offline mediums. We are well equipped with the most recent machines and technology that help us in conducting stringent check on the raw materials that are used while manufacturing.

Details :

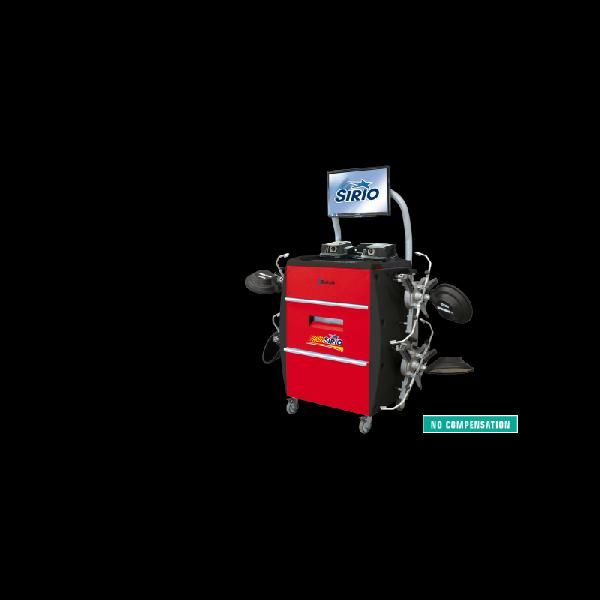

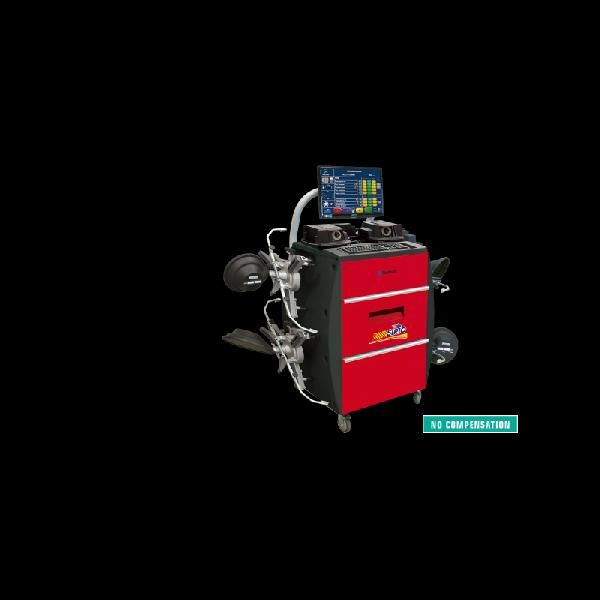

This revolutionary 3-D wheel aligner is equipped with a Bluetooth transmission between measuring heads and control unit.

It can be used on any 4 post or scissors lift through the automatic lift level compensation.

Quick clamp to the lift. Pivoting support to avoid damage with obstacles while lowering.

Model featuring the automatic research of the targets. It is equipped with tire grabbing 3 point clamps to avoid run out compensation.

Extremely fast. Automatic sensors (patent pending) with automatic positioning of the cameras.

Exclusive 3D targets:

no need for run out compensation
extremely light
no electronic components inside
no maintenance required.

The LED repeater makes possible a guided adjustments with no need to see the monitor. This together with TOP precision in targeting reading and megapixel resolution cameras makes this wheel aligner the best of its range.

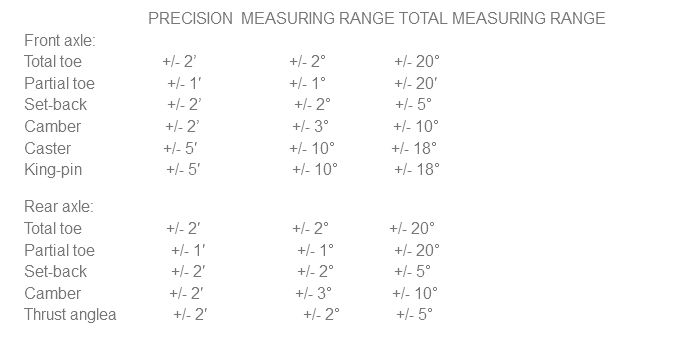

Technical Specifications

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details
