Our Products
We are leaders in the market for providing best range of Universal Levelling Assembly with Gearbox, Disc Harrow Axle and Levelling Box Shafts
In order to provide faultless products to the clients, we make sure that the inputs we use are of excellent quality. Thus, our experts keep a stringent check over the same. Customers highly prefer us because of our practice of delivering the orders in an organized condition and on time.

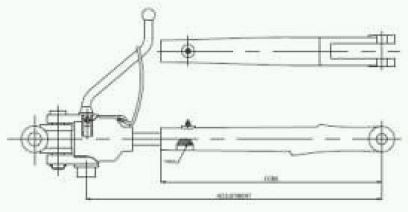

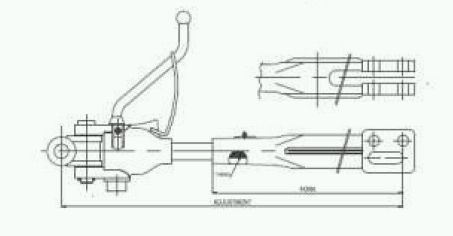

Graphical Image
Graphical Image
Technical Data
| Part number | Adjustment Min Max | 1 Fork | 2 Lift Rod | 3 Gear Box | 4 Knuckle |
|---|---|---|---|---|---|
| LUV495565 | 495 565 | K40937 | K325 | K539 | K1795 |
| LUV500600 | 500 600 | K392 | K237 | K539 | K1795 |
| LUV475575 | 475 575 | K2985 | K237 | K539 | K1795 |
| LUV600690 | 600 690 | K392 | K238 | K539 | K1795 |
| LUV545640 | 545 640 | K392 | K234 | K539 | K1795 |
| LUV520630 | 502 630 | K4281 | K4285 | K4280 | K4282 |
| LUV565675 | 656 675 | K4281 | K4288 | K4280 | K4282 |
| LUV665770 | 665 770 | K8625 | K4288 | K4280 | K4282 |
| LUV575660 | 575 660 | K8625 | K16865 | K4280 | K4282 |
| LUV510605 | 510 605 | K2985 | K234 | K539 | K1795 |
| LUV565655 | 650 760 | K2985 | K238 | K539 | K1795 |
| LUV650760 | 560 660 | K16577 | K4288 | K4280 | K4282 |
| LUV560660 | 650 655 | K392 | K243 | K4280 | K4282 |
| LUV725825 | 725 825 | K11315 | K243 | K539 | K1795 |
Based in Ludhiana(India), we hold specialization in offering quality products that are the perfect outcome of premium material and modern manufacturing techniques. Assistance from skilled professionals and brilliant packaging unit has enabled us to meet specific requirements of the clients. Besides this, we make sure that the material used for wrapping them is of high quality.

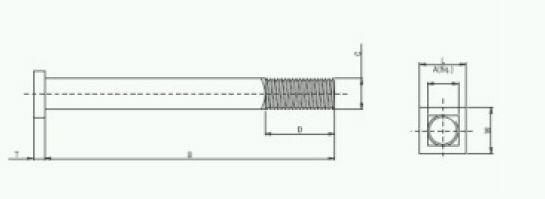

Graphical Images
Technical Data
| Part Number | SQ. Bar | Usable B | Thread C | D | LXWXT Head |
|---|---|---|---|---|---|
| JHDX 01 | 28 | 1023 | M27x3 RH | 60 | 45x45x20 |
| JHDX 02 | 28 | 1252 | M27x3 RH | 60 | 45x45x20 |
| JHDX 03 | 28 | 1420 | M27x3 RH | 60 | 45x45x20 |
| JHDX 04 | 28 | 1712 | M27x3 RH | 60 | 45x45x20 |
| JHDX 05 | 28 | 1945 | M27x3 RH | 60 | 45x45x20 |
| JHDX 06 | 28 | 2169 | M27x3 RH | 60 | 45x45x20 |
| JHDX 07 | 28 | 2180 | M27x3 RH | 60 | 45x45x20 |
| JHDX 08 | 28 | 2360 | M27x3 RH | 60 | 45x45x20 |
| JHDX 09 | 28 | 22862 | M27x3 RH | 60 | 45x45x20 |
| JHDX 10 | 38 | 3093 | M27x3 RH | 60 | 45x45x20 |
| JHDX 11 | 38 | 1458 | M36x4.0 RH | 60 | 65x65x25 |
| JHDX 12 | 38 | 1986 | M36x4.0 RH | 60 | 65x65x25 |
| JHDX 13 | 38 | 2520 | M36x4.0 RH | 60 | 65x65x25 |
| JHDX 14 | 40 | 2000 | M36x4.0 RH | 60 | Without Head |
We have well-organized warehouse that is divided into specified areas according to technological operations in order to automate inbound, outbound and in-stock operations. This helps us in making quick deliveries in the shortest time span. We conduct payment procedure in a safe manner through both online and offline processes. You can conveniently pay in cash as well as through bank transfer.

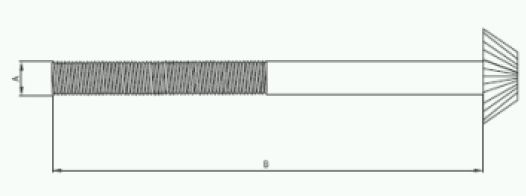

Graphical Images
Technical Data
| Part Number | A MM | Length MM | ET. kg |
|---|---|---|---|
| LVBS346 | 3/4" | 346 | 0.78 |
| LVBS257 | 3/4" | 257 | 0.58 |
| LVBS305 | 3/4" | 305 | 0.68 |
| LVBS360 | 3/4" | 360 | 0.79 |
| LVBS321 | 3/4" | 321 | 0.71 |
| LVBS292 | 3/4" | 292 | 0.65 |
| LVBS315 | 1" | 315 | 1.28 |
| LVBS360 | 1" | 360 | 1.44 |
| LVBS274 | 1" | 274 | 1.13 |
