Our Products
Leading Manufacturer, Supplier & Retailer of MF Levelling Assembly, Thread M36x3 Heavy Model 80-Head Metric Top Link Assembly, Thread M36x3 Heavy Model 96-Head Metric Top Link Assembly, Thread M40x3 Heavy Model 80-Head Metric Top Link Assembly and Thread M40x3 Heavy Model 96-Head Metric Top Link Assembly.
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (D) |
|---|---|---|---|
| TL0419000R | 0-0(16) | 190 | M20x2.5 |
| TL0425000R | 0-0(16) | 250 | M20x2.5 |
| TL0440000R | 0-0(16) | 400 | M20x2.5 |
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (D) |
|---|---|---|---|
| TL0512011R | 1-1 | 120 | M22x2.5 |
| TL0516011R | 1-1 | 160 | M22x2.5 |
| TL0518011R | 1-1 | 180 | M22x2.5 |
| TL0522011R | 1-1 | 220 | M22x2.5 |
| TL0523011R | 1-1 | 230 | M22x2.5 |
| TL0530011R | 1-1 | 300 | M22x2.5 |
| TL0532011R | 1-1 | 320 | M22x2.5 |
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (T) |
|---|---|---|---|
| TL0712011R | 1-1 | 120 | M24x3 |
| TL0714011R | 1-1 | 140 | M24x3 |
| TL0715011R | 1-1 | 150 | M24x3 |
| TL0716511R | 1-1 | 165 | M24x3 |
| TL0718011R | 1-1 | 180 | M24x3 |
| TL0720011R | 1-1 | 200 | M24x3 |
| TL0723011R | 1-1 | 230 | M24x3 |
| TL0725011R | 1-1 | 250 | M24x3 |
| TL0727011R | 1-1 | 270 | M24x3 |
| TL0730011R | 1-1 | 300 | M24x3 |
| TL0733011R | 1-1 | 330 | M24x3 |
| TL0737011R | 1-1 | 370 | M24x3 |
| TL0740011R | 1-1 | 400 | M24x3 |
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (D) |
|---|---|---|---|
| TL0612011R | 1-1 | 120 | M24x2.5 |
| TL0614011R | 1-1 | 140 | M24x2.5 |
| TL0615011R | 1-1 | 150 | M24x2.5 |
| TL0616511R | 1-1 | 165 | M24x2.5 |
| TL0618011R | 1-1 | 180 | M24x2.5 |
| TL0620011R | 1-1 | 200 | M24x2.5 |
| TL0624511R | 1-1 | 245 | M24x2.5 |
| TL0628011R | 1-1 | 280 | M24x2.5 |
| TL0630011R | 1-1 | 300 | M24x2.5 |
| TL0632011R | 1-1 | 320 | M24x2.5 |
| TL0637011R | 1-1 | 370 | M24x2.5 |
| TL0640011R | 1-1 | 400 | M24x2.5 |
With us, one can stay completely assured for top-notch quality products that are designed and developed using the premium material and cutting-edge techniques. Also, we ensure that the material is sourced from the reliable places only. Catering to the ever-evolving packaging requirements of the clients, we make certain that our professionals use only the finest packaging material to circumvent loss during transit.
Graphical Images
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TL0818011R | 1-1 | 180 | M27x3 |
| TL0818022R | 1-2 | 180 | M27x3 |
| TL0802011R | 1-1 | 220 | M27x3 |
| TL0802022R | 1-2 | 220 | M27x3 |
| TL0827511R | 1-1 | 275 | M27x3 |
| TL0827522R | 1-2 | 275 | M27x3 |
| TL0832011R | 1-1 | 320 | M27x3 |
| TL0832012R | 1-2 | 320 | M27x3 |
| TL0832022R | 1-1 | 320 | M27x3 |
| TL0835011R | 1-2 | 350 | M27x3 |
| TL0835012R | 1-1 | 350 | M27x3 |
| TL0835022R | 1-2 | 350 | M27x3 |
| TL0838011R | 1-1 | 380 | M27x3 |
| TL0838012R | 1-2 | 380 | M27x3 |
| TL0838022R | 1-1 | 380 | M27x3 |
| TL0840011R | 1-2 | 400 | M27x3 |
| TL0840012R | 1-1 | 400 | M27x3 |
| TL0840022R | 1-2 | 400 | M27x3 |
| TL0843011R | 1-1 | 430 | M27x3 |
| TL0843012R | 1-2 | 430 | M27x3 |
| TL0843022R | 1-1 | 430 | M27x3 |
| TL0845011R | 1-2 | 450 | M27x3 |
| TL0845012R | 1-1 | 450 | M27x3 |
| TL0845022R | 1-2 | 450 | M27x3 |
| TL0847011R | 1-1 | 470 | M27x3 |
| TL0847012R | 1-2 | 470 | M27x3 |
| TL0847022R | 1-1 | 470 | M27x3 |
| TL0850011R | 1-2 | 500 | M27x3 |
| TL0850012R | 1-1 | 500 | M27x3 |
| TL0850022R | 1-2 | 500 | M27x3 |
| TL0855011R | 1-1 | 550 | M27x3 |
| TL0855012R | 1-2 | 550 | M27x3 |
| TL0855022R | 1-1 | 550 | M27x3 |
| TL0857022R | 1-2 | 570 | M27x3 |
| TL0860022R | 1-1 | 600 | M27x3 |
| TL0860011R | 1-2 | 600 | M27x3 |
| TL0860011R | 1-1 | 650 | M27x3 |
| TL0865022R | 1-2 | 650 | M27x3 |
| TL0860011R | 1-1 | 650 | M27x3 |
| TL0870011R | 1-2 | 700 | M27x3 |
| TL0870012R | 1-1 | 700 | M27x3 |
| TL0870022R | 1-2 | 700 | M27x3 |
Be cash payment or bank transfer, we are capable of making transactions using them all. Worry not! We have organized and maintained database to keep a stern check on the transactions made. Our comprehensive range of products is packed in sturdy, safe, and industrial grade materials that safeguard the contents inside from harm, dampness, dust, movement etc. Besides, the packing has printed product information.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLHP0916022 | 2-2 | 160 | M30x3.5 |
| TLHP0927022 | 2-2 | 270 | M30x3.5 |
| TLHP0930011 | 1-1 | 300 | M30x3.5 |
| TLHP0930013 | 2-2 | 300 | M30x3.5 |
| TLHP0930022 | 1-1 | 300 | M30x3.5 |
| TLHP0933011 | 2-2 | 330 | M30x3.5 |
| TLHP0933012 | 1-1 | 330 | M30x3.5 |
| TLHP0933022 | 2-2 | 330 | M30x3.5 |
| TLHP0937011 | 1-1 | 370 | M30x3.5 |
| TLHP0937022 | 2-2 | 370 | M30x3.5 |
| TLHP0937022 | 1-1 | 370 | M30x3.5 |
| TLHP09340011 | 2-2 | 400 | M30x3.5 |
With outstanding storage facilities, we are capable of making fast and urgent requirements of the customers. Owing to our automated and spacious infrastructure, we make systematic packaging followed by delivery to the clients in set time. In order to settle the financial transaction with our clients through the transfer of monetary value, we offer diverse options including online and offline payment procedures.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLHD01135022 | 2-2 | 350 | M36x3 |
| TLHD01138022 | 2-2 | 380 | M36x3 |
| TLHD01140022 | 2-2 | 400 | M36x3 |
| TLHD01146022 | 2-2 | 460 | M36x3 |
| TLHD01152022 | 2-2 | 520 | M36x3 |
| TLHD01157022 | 2-2 | 570 | M36x3 |
| TLHD01158022 | 2-2 | 580 | M36x3 |
| TLHD01160022 | 2-2 | 600 | M36x3 |
| TLHD01164022 | 2-2 | 640 | M36x3 |
| TLHD01170022 | 2-2 | 700 | M36x3 |
| TLHD01180022 | 2-2 | 800 | M36x3 |
| TLHD01190022 | 2-2 | 900 | M36x3 |
| TLHD011100022 | 2-2 | 1000 | M36x3 |
Be it online payment or offline, we make possible for you to make trade transactions as per your convenience. We offer both offline and online mediums to make payment. Our comprehensive range of products is packed in sturdy, safe, and industrial grade materials that safeguard the contents inside from harm, dampness, dust, movement etc. Besides, the packing has printed product information.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLHD01180022 | - | 800 | M36x3 |
| TLHD01180023 | - | 800 | M36x3 |
| TLHD01180033 | - | 800 | M36x3 |
| TLHD011100023 | - | 1000 | M36x3 |
| TLHD011100033 | - | 1000 | M36x3 |
| TLHD011100033 | - | 1000 | M36x3 |
| TLHD01136022 | - | 360 | M36x3 |
| TLHD01140011 | - | 400 | M36x3 |
| TLHD01140012 | - | 400 | M36x3 |
| TLHD01140022 | - | 400 | M36x3 |
| TLHD01146011 | - | 460 | M36x3 |
| TLHD01146012 | - | 460 | M36x3 |
| TLHD01146022 | - | 460 | M36x3 |
| TLHD01152011 | - | 520 | M36x3 |
| TLHD01152012 | - | 520 | M36x3 |
| TLHD01152022 | - | 520 | M36x3 |
| TLHD01158011 | - | 580 | M36x3 |
| TLHD01158012 | - | 580 | M36x3 |
| TLHD01158022 | - | 580 | M36x3 |
| TLHD01162011 | - | 620 | M36x3 |
| TLHD01162012 | - | 620 | M36x3 |
| TLHD01162022 | - | 620 | M36x3 |
| TLHD01170011 | - | 700 | M36x3 |
| TLHD01170012 | - | 700 | M36x3 |
| TLHD01170022 | - | 700 | M36x3 |
As a famed organization in Ludhiana(India), we make sure that our customers will receive their orders at their preferred destination. We have divided our infrastructure into different units including packaging unit wherein we pack our offerings meticulously to circumvent loss during transit.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLHD01240022 | 3-3 | 400 | M40x3 |
| TLHD01250022 | 3-3 | 500 | M40x3 |
| TLHD01252022 | 3-3 | 520 | M40x3 |
| TLHD01258022 | 3-3 | 580 | M40x3 |
| TLHD01262022 | 3-3 | 620 | M40x3 |
We are acknowledged for providing only damage-free products to the clients. For this, we make use of quality and tamper-free packing materials along with sophisticated packing machines. We have garnered wide appreciation for offering the best quality products that are the best outcome premium material and modern manufacturing techniques.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLHD01240033 | 3-3 | 400 | M40x3 |
| TLHD01250033 | 3-3 | 500 | M40x3 |
| TLHD01252033 | 3-3 | 520 | M40x3 |
| TLHD01258033 | 3-3 | 580 | M40x3 |
| TLHD01262033 | 3-3 | 620 | M40x3 |
We are acknowledged for providing only damage-free products to the clients. For this, we make use of quality and tamper-free packing materials along with sophisticated packing machines. The team of quality auditors ensures the product quality on several counts prior to final dispatch.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLHD0936022 | 2-2 | 360 | M30x3.5 |
| TLHD0940022 | 2-2 | 400 | M30x3.5 |
| TLHD0946022 | 2-2 | 460 | M30x3.5 |
| TLHD0952022 | 2-2 | 520 | M30x3.5 |
| TLHD0958022 | 2-2 | 580 | M30x3.5 |
| TLHD0964022 | 2-2 | 640 | M30x3.5 |
| TLHD0970022 | 2-2 | 700 | M30x3.5 |
| TLHD0980022 | 2-2 | 800 | M30x3.5 |
Graphical Images
Our comprehensive range of products is packed in sturdy, safe, and industrial grade materials that safeguard the contents inside from harm, dampness, dust, movement etc. Besides, the packing has printed product information. We offer our clients to make online and offline payment to facilitate the trade and make payment process completely hassle free.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLHD01336022 | 2-2 | 360 | M42x3 |
| TLHD01340022 | 2-2 | 400 | M42x3 |
| TLHD01346022 | 2-2 | 460 | M42x3 |
| TLHD01352022 | 2-2 | 520 | M42x3 |
| TLHD01358022 | 2-2 | 580 | M42x3 |
| TLHD01336022 | 2-3 | 360 | M42x3 |
| TLHD01340033 | 2-3 | 400 | M42x3 |
| TLHD01346033 | 2-3 | 460 | M42x3 |
| TLHD01352033 | 2-3 | 520 | M42x3 |
Graphical Images
We are acknowledged for providing only damage-free products to the clients. For this, we make use of quality and tamper-free packing materials along with sophisticated packing machines. We are a quality-driven firm and dedicatedly work towards attaining maximum client satisfaction. And, for this, we have adopted several measures for ensuring high quality of our products.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLRH0822012 | 1-2 | 220 V | M27x3 |
| TLRH0832022 | 2-2 | 320 | M27x3 |
| TLRH0837022 | 2-2 | 370 | M27x3 |
| TLRH0843022 | 2-2 | 430 | M27x3 |
| TLRH0847022 | 2-2 | 170 | M27x3 |
| TLRH0857022 | 2-2 | 570 | M27x3 |
Graphical Images
Only after getting approval from the quality experts, we make use of the inputs sourced from the vendors. We make sure that our entire range is of excellent quality and faultless. We provide customized packaging solutions, as we understand each customer is unique. The packaging we provide is strong, non-toxic, and capable of braving shipping and handling.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLRH01036022 | 2-2 | 360 | M30x3 |
| TLRH0840022 | 2-2 | 400 | M30x3 |
| TLRH01045022 | 2-2 | 450 | M30x3 |
| TLRH01050022 | 2-2 | 500 | M30x3 |
| TLRH010505022 | 2-2 | 550 | M30x3 |
| TLRH01060022 | 2-2 | 600 | M30x3 |
| TLRH01073022 | 2-2 | 430 | M30x3 |
| TLRH01080022 | 2-2 | 800 | M30x3 |
| TLRH01090022 | 2-2 | 900 | M30x3 |
| TLRH010100022 | 2-2 | 1000 | M30x3 |
We own a well-structured warehouse where the entire lot is carefully stored before making the final dispatch. The unit helps in providing protection from moisture, dust, rain, sunlight and more. We are acknowledged for providing only damage-free products to the clients. For this, we make use of quality and tamper-free packing materials along with sophisticated packing machines.
Technical Data
| Part Number | Car D1-D2 | Pipe L1 (MM) | Thread (D) |
|---|---|---|---|
| TLRH01136022 | 2-3 | 400 | M36x3 |
| TLRH01140022 | 3-2 | 400 | M36x3 |
| TLRH01140023 | 3-3 | 400 | M36x3 |
| TLRH01140032 | 2-2 | 400 | M36x3 |
| TLRH01140033 | 2-3 | 450 | M36x3 |
| TLRH01145022 | 3-2 | 450 | M36x3 |
| TLRH01145023 | 2-3 | 450 | M36x3 |
| TLRH01145032 | 3-3 | 450 | M36x3 |
| TLRH01145033 | 2-2 | 450 | M36x3 |
| TLRH01146022 | 2-3 | 460 | M36x3 |
| TLRH01146023 | 3-2 | 460 | M36x3 |
| TLRH01146032 | 3-3 | 460 | M36x3 |
| TLRH01146033 | 2-2 | 460 | M36x3 |
| TLRH01150022 | 3-3 | 500 | M36x3 |
| TLRH01150023 | 2-2 | 500 | M36x3 |
| TLRH01150032 | 2-3 | 500 | M36x3 |
| TLRH01150033 | 2-2 | 500 | M36x3 |
| TLRH0118022 | 2-3 | 580 | M36x3 |
| TLRH01158023 | 3-3 | 580 | M36x3 |
| TLRH01158032 | 2-2 | 580 | M36x3 |
| TLRH01158033 | 2-3 | 580 | M36x3 |
| TLRH01162022 | 3-3 | 620 | M36x3 |
| TLRH01162023 | 2-3 | 620 | M36x3 |
| TLRH01162032 | 2-2 | 620 | M36x3 |
| TLRH01162033 | 3-2 | 620 | M36x3 |
| TLRH01170022 | 3-3 | 700 | M36x3 |
| TLRH01170023 | 2-2 | 700 | M36x3 |
| TLRH01170032 | 2-3 | 700 | M36x3 |
| TLRH01170033 | 3-3 | 700 | M36x3 |
| TLRH01173022 | 2-3 | 730 | M36x3 |
| TLRH01173023 | 3-3 | 730 | M36x3 |
| TLRH01173032 | 2-3 | 730 | M36x3 |
| TLRH01173033 | 2-2 | 730 | M36x3 |
We have tied-up with certified vendors who assure us about the quality of the material that we used for product manufacturing. Thus, the finished products comply with high quality standards. Customers highly prefer us because of our practice of delivering the orders in an organized condition and on time.
Graphical Images
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (D) |
|---|---|---|---|
| TLRHY01136022 | 2-2 | 360 | M36x3 |
| TLRHY01140022 | 2-3 | 400 | M36x3 |
| TLRHY01140023 | 2-3 | 400 | M36x3 |
| TLRHY01140032 | 3-2 | 400 | M36x3 |
| TLRHY01140033 | 3-2 | 400 | M36x3 |
| TLRHY01145022 | 2-2 | 450 | M36x3 |
| TLRHY01145023 | 2-3 | 450 | M36x3 |
| TLRHY01145032 | 3-2 | 450 | M36x3 |
| TLRHY01145033 | 3-3 | 450 | M36x3 |
| TLRHY01150022 | 2-2 | 500 | M36x3 |
| TLRHY01150023 | 2-3 | 500 | M36x3 |
| TLRHY01150032 | 3-2 | 500 | M36x3 |
| TLRHY01150033 | 3-3 | 500 | M36x3 |
| TLRHY01158022 | 2-2 | 580 | M36x3 |
| TLRHY01158023 | 2-3 | 580 | M36x3 |
| TLRHY01158032 | 3-2 | 580 | M36x3 |
| TLRHY01158033 | 3-3 | 580 | M36x3 |
| TLRHY01162022 | 2-2 | 620 | M36x3 |
| TLRHY01162023 | 2-3 | 620 | M36x3 |
| TLRHY01162032 | 3-2 | 620 | M36x3 |
| TLRHY01162033 | 2-2 | 620 | M36x3 |
| TLRHY01170022 | 2-3 | 700 | M36x3 |
| TLRHY01170023 | 2-3 | 700 | M36x3 |
| TLRHY01170032 | 3-2 | 700 | M36x3 |
| TLRHY01170033 | 3-3 | 700 | M36x3 |
| TLRHY01173022 | 2-2 | 730 | M36x3 |
| TLRHY01173023 | 2-3 | 730 | M36x3 |
| TLRHY01173032 | 3-2 | 730 | M36x3 |
| TLRHY01173033 | 3-3 | 730 | M36x3 |
The company is located in Ludhiana(India) and caters to the diverse requirements of the buyers. We have our own storage unit wherein we keep a large stock for meeting urgent and massive requirements of the clients. Laced with modern amenities, this unit keeps the lot free from the damaging factors.
Technical Data
| Part Number | PIPE A(MM) | Thread B | LH BALL ID/HT (D1/H2) | RH BALL ID/HT (D2/H2) | TL.PIN & Chain F/G |
|---|---|---|---|---|---|
| TLMTZ360 | 360 | M30-TPZ | 22.1/51 | 22.1/51 | 22x100-R.H.S |
| TLMTZ360/A | 360 | M30-TPZ | 22.1/51 | 25.4/44 | 25x100-R.H.S |
Graphical Images
In order to deliver quality content, our entire production process is commenced under the strict eyes of quality examiners. We are a quality-centralized firm and make use of only high quality material for manufacturing the offered lot. Also, we ensure that the material is sourced from the reliable places.
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (D) |
|---|---|---|---|
| TLVAL0348022 | 2-2 | 480 | 1.14"UNC |
Graphical Images
Customers highly prefer us because of our practice of delivering the orders in an organized condition and on time. We understand that the superior grade raw material is essential for the development of high quality products. And, for maintaining these standards, we have adopted several quality measures for ensuring the quality.
Graphical Images
Technical Data
| Part Number | PIPE A(MM) | Thread B | LH BALL ID/HT (D1/H2) | RH BALL ID/HT (D2/H2) | TL.PIN & Chain F/G |
|---|---|---|---|---|---|
| TLUTB09440 | 440 | M30x3.5 | 25.4/51 | 25.4/51 | 25x117x11x45 Both Ends |
Before making the final dispatch of the orders, the entire range is strictly checked against varied quality parameters. With the aid of our sophisticated packaging system, our skilled personnel are able to meet the standard as well as customized packaging requirements of the clients. Moreover, we check the entire lot before dispatch.
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (D) |
|---|---|---|---|
| TLFRD0336022 | - | 360 | 1.1/4" UNC |
| TLFRD0340022 | - | 400 | 1.1/4" UNC |
| TLFRD0346022 | - | 460 | 1.1/4" UNC |
| TLFRD0352022 | - | 520 | 1.1/4" UNC |
Graphical Images
Being a quality conscious firm, we conduct strict quality checks for ensuring the product quality. We are working with experienced staff and veteran professional; they make every effort to keep the products safe from external damaging factors, by using finest material for wrapping.
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (D) |
|---|---|---|---|
| TLJD0831812 | 1(20.0)-2 | 318 | M 27x3 |
| TLJD0831812/A | 1(20.0)-2 | 318 | 1.1/8" UNC |
| TLJD0831822 | 2/44-2/51 | 318 | 1.1/8" UNC |
Graphical Images
Our product is wrapped in industrial grade packaging supplies that are ecological and offer defense to the products against mechanical and transit damage. Furthermore, the product is correctly branded to offer data. We have tied-up with the leading names offering qualitative raw material. Also, we check on several parameters prior to procurement for ensuring high quality standards.
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (D) |
|---|---|---|---|
| TLCIJD01628022 | - | 280 | M 36x4 |
| TLCIJD01628023 | - | 280 | M 36x4 |
| TLCIJD01628033 | - | 280 | M 36x4 |
We offer a variety of packaging options to our patrons and even provide customized packaging solutions. The labels on products are superior grade and do not smudge during shipping. We procure the inputs only from the trustworthy vendors present in the market. We know the importance of the raw materials and thus make sure that their quality will never be compromised.
Graphical Images
Technical Data
| Part Number | CAT D1-D2 | Pipe L1 (mm) | Thread (D) |
|---|---|---|---|
| TLIMT01121022 | 2-2 | 210 | M36x3 |
| TLIMT01124522 | 2-2 | 245 | M36x3 |
| TLIMT01045011 | 1-1 | 450 | M30x3 |
| TLIMT01047012 | 1-2 | 470 | M30x3 |
| TLIMT01047022 | 2-2 | 470 | M30x3 |
Raw material that we use for preparing our offering is sourced from the reliable places and that too after complete quality confirmation. As a result of which, our products have no match in the market. Customers highly prefer us because of our practice of delivering the orders in an organized condition and on time.
Technical Data
| Part Number | Pin | Spring | Handle | Clip |
|---|---|---|---|---|
| KRKT-2 | 1 | 1 | 1 | 1 |
| KRKT-2 | 1 | 1 | 1 | 1 |

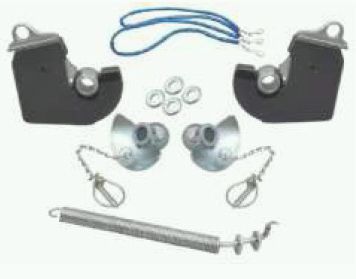

We are a high-flying name when it comes to superlative Lower Link Hook Repair Kit! Rely on us for premium quality of the products as we make use of the finest grade raw material for preparing them. Also, we procure it from the reliable places after complete quality satisfaction.
Technical Data
| Part Number | Handle | Stopper | Spring | Spring Cotter Pin |
|---|---|---|---|---|
| LLHRK-2 | 1 | 1 | 1 | 5 type |
| LLHRK-2 | 1 | 1 | 1 | 5 type |
We are capable of delivering the orders in a safe manner at customer's end and for this; we have a capacious warehouse that is installed with all required amenities required for safe storage. In order to deliver an exceptional lot of products, we make use of the finest grade material for producing them. As a result, the finished products comply with high quality standards.
We conduct payment procedure in a safe manner through both online and offline processes. You can conveniently pay in cash as well as through bank transfer. With the assistance of our capacious warehouse, we are able to meet the bulk as well as urgent requirements of the buyers. Our unit is supervised by the experts ensuring complete safety of the lot.
Technical Data
| Part Number | L (Min) | L (Max) | L1 | D | d | H1 | h1 | d1 | h2 |
|---|---|---|---|---|---|---|---|---|---|
| LV19530 | 380 | 530 | 230 | M24x3 | 18 | 24 | 72 | 19.0 | 44 |
| LV22530 | 380 | 530 | 230 | M24x3 | 18 | 24 | 72 | 22.1 | 35 |
| LV19560 | 410 | 560 | 260 | M24x3 | 18 | 24 | 72 | 19.0 | 44 |
| LV22560 | 410 | 560 | 260 | M24x3 | 18 | 24 | 72 | 22.1 | 35 |
| LV22660 | 490 | 660 | 340 | M24x3 | 16 | 24 | 72 | 22.1 | 35 |
| LV22690 | 520 | 690 | 380 | M24x3 | 16 | 24 | 72 | 22.1 | 35 |
Graphical Images
Before making the final dispatch, our entire lot is carefully stored in our capacious warehouse under the administration of experts. Thus, there are minimal chances of defects at buyer's end. We conduct payment procedure in a safe manner through both online and offline processes. You can conveniently pay in cash as well as through bank transfer.
Being a quality-centralized firm, we have hired a group of quality auditors who work in adherence with the defined norms and deliver the best products to the clients. With the aid of our sophisticated packaging system, our skilled personnel are able to meet the standard as well as customized packaging requirements of the clients. Moreover, we check the entire lot before dispatch.
In order to keep the products in safe condition during transit and handling, we meticulously pack them at our own packaging facility. Also, we make sure that the packaging material is sourced from the trusted vendors. As we ensure complete safety of the products at our end, we follow stringent and organized warehousing system in our state-of-the-art warehouse. Moreover, the system is supervised by experts.
Graphical Images
Technical Data
| Part Number | Pipe (A)mm | Thread (B) | Ball. ID/Ht (D/H) | U.Hole.D.(D1) | U.Size (E) | U.Slo (F) | Min/Max G |
|---|---|---|---|---|---|---|---|
| LVHD25250 | 250 | M36x3.0 RH | 28.4x45 | 25.4 | 33x172 | 26x95 | 495/625 |
| LVHD25350 | 350 | M30x3.5 RH | 28.4x45 | 25.4 | 33x100 | 80 | 535/745 |
To avoid any type of mechanical and biochemical harms, we pack our products in high-grade packing items that are sturdy as well. Moreover, we provide product details on it as well. We have online payment processing system to avoid security issues. In order to make it more reliable, we have maintained payment logs accessible for the convenience of our customers.
Graphical Image (Gearbox)
Graphical Image (Knuckle)
Technical Data
| Part number |
A MM |
B MM |
C MM |
Wt. Kg. |
|---|---|---|---|---|
| K539 | 19 | 16 | 50 | 1.23 |
| K4280 | 25.4 | 19 | 50 | 1.40 |
Technical Data
| Part Number |
A MM |
B MM |
C MM |
D MM |
WT. Kg. |
|---|---|---|---|---|---|
| K1795 | 16.5 | 48 | 16.5 | 48 | 0.43 |
| K4282 | 20 | 48 | 23 | 42 | 0.58 |
We are working with a group of professionals who make special emphasis on the products packaging and ensure that the material is procured from the reliable sources only. We have adopted secure payment methods that are approved by authority and featured with options that facilitate quick transfers.
Graphical Images
Technical Data
| Part Number | Cat | ID | Thread D | L1 | D1 | D2 | H |
|---|---|---|---|---|---|---|---|
| TLEU011R332 | 3 | 32 | M36x3R | 200 | 96 | 70 | 51 |
| TLEU011L332 | 3 | 32 | M36x3L | 200 | 96 | 70 | 51 |
| TLEU019R225 | 2 | 25.4 | M40x3R | 170 | 80 | 60 | 51 |
| TLEU019L225 | 2 | 25.4 | M40x3L | 170 | 80 | 60 | 51 |
By keeping records of the leading market demands, we have developed a secure payment procedure that offers a plenty of options for making transactions. With the assistance of our experts, we have become capable of providing superior-grade products to the clients as we source the raw materials only from dependable vendors.
Technical Data
| Part Number | Cat | ID | Thread D | L1 | D1 | D2 | H |
|---|---|---|---|---|---|---|---|
| TLEHD09R225 | 2 | 25.4 | M30x3.5R | 170 | 80 | 55 | 51 |
| TLEHD09L225 | 2 | 25.4 | M30x3.5L | 170 | 80 | 55 | 51 |
| TLEHD019R332 | 3 | 32 | M40x3R | 200 | 96 | 70 | 51 |
| TLEHD019L332 | 3 | 32 | M40x3L | 200 | 96 | 70 | 51 |
| TLEHD013R225 | 2 | 25.4 | M42x3R | 200 | 96 | 70 | 51 |
| TLEHD013L225 | 2 | 25.4 | M42x3L | 200 | 96 | 70 | 51 |
| TLEHD013R332 | 3 | 32 | M42x3R | 200 | 96 | 70 | 51 |
| TLEHD013L332 | 3 | 32 | M42x3L | 200 | 96 | 70 | 51 |
We have advanced packaging systems available to make sure that the products are packed using the experts approved packaging stuff. We source the material from the leading vendors in the industry. Based in Ludhiana(India), we have gained wide appreciation owing to our high quality products and client-centric approach.
Graphical Images
Technical Data
| Part Number | Cat | ID | Thread D | L1 | D1 | D2 | H |
|---|---|---|---|---|---|---|---|
| TLEF03L119 | 1 | 19 | 1.1/4"UNC L | 128 | 58 | 208 | 44 |
| TLEF03L225 | 2 | 25.4 | 1.1/4"UNC L | 128 | 76 | 208 | 51 |
| TLEF03R225 | 2 | 25.4 | 1.1/4"UNC L | 168 | 76 | 86 | 51 |
We work in close coordination with the team members and packaging professionals; they ensure that the products are packed sternly using the finest quality packaging materials. Our range of products is manufactured under the administration of qualified quality control executives by using optimum supplies and ultramodern technologies.
Graphical Images
Technical Data
| Part Number | Cat | ID | Thread D | L1 | D1 | D2 | H |
|---|---|---|---|---|---|---|---|
| TLEJD02R225 | 2 | 25.4 | 1.1/8"UNC R | 145 | 66 | 162 | 51 |
| TLEJD02L120 | 1 | 20 | 1.1/8"UNC L | 160 | 66 | 56 | 44 |
| TLEJD08R225 | 2 | 25.4 | M27x3 R | 145 | 66 | 162 | 51 |
| TLEJD08L120 | 1 | 20 | M27x3 L | 160 | 66 | 56 | 44 |
Working in assistance with a brilliant inventory management system and capacious storehouse has enabled us to entertain urgent and massive requirements of the customers. We conduct payment procedure in a safe manner through both online and offline processes. You can conveniently pay in cash as well as through bank transfer.
Graphical Images
Technical Data
| Part Number | Cat | ID | Thread D | L1 | D1 | D2 | H |
|---|---|---|---|---|---|---|---|
| TLEMF017R119 | 1 | 19 | 11/16"UNF R | 128 | 58 | 167 | 44 |
| TLEMF017L119 | 1 | 19 | 11/16"UNF R | 128 | 58 | 167 | 44 |
| TLEMF017R225 | 2 | 25.4 | 11/16"UNF R | 128 | 66 | 167 | 51 |
| TLEMF017L225 | 2 | 25.4 | 11/16"UNF R | 128 | 66 | 167 | 51 |
We always make use of quality raw materials for the production of our products as we comply with all set quality standards. Only after getting approval from the quality experts, we make use of the inputs sourced from the vendors. We make sure that our entire range is of excellent quality and faultless.
Graphical Images
Technical Data
| Part Number | ID | Thread D | L1 | D1 | D2 | H |
|---|---|---|---|---|---|---|
| TLEMTZ02R25 | 25.4 | 1.1/8"UNC L | 145 | 66 | 162 | 51 |
| TLEMTZ02L20 | 20 | 1.1/8"UNC L | 160 | 66 | 56 | 44 |
We have superior storage facility to keep large product range that we make available. In order to meet elevated quality norms, we keep it updated with modern work methods. We conduct payment procedure in a safe manner through both online and offline processes. You can conveniently pay in cash as well as through bank transfer.
Graphical Images
Technical Data
| Part Number | D | E | A | B | C |
|---|---|---|---|---|---|
| LLWE287126 | 28.4 | 45 | 71 | 40 | 70 |
We procure the basic material, required for manufacturing flawless lot of products, from the genuine and authorized vendors only. As a result of which, our offerings have no match in the market. Our up-to-date logistic facilities support us in meeting the delivery deadlines promised to the customers.
Graphical Images
Technical Data
| Part Number | D | E | A | B | C |
|---|---|---|---|---|---|
| LLWE2810027 | 28.4 | 45 | 100 | 130 | 100 |
| LLWE3710028 | 37 | 45 | 100 | 130 | 100 |
| LLWE3710029 | 38 | 45 | 100 | 130 | 100 |
Our up-to-date logistic facilities support us in meeting the delivery deadlines promised to the customers. We have hired experienced quality auditors who stringently check the raw materials against varied quality parameters before procurement. Thus, we ensure quality products at buyer's end.
Graphical Images
Technical Data
| Part Number | d | D | A | B | C | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| TLWE1975 | 19 | 51 | 75 | 55 | 35 | 12 | 6 | 4 | 4 |
| TLWE2275 | 22.1 | 51 | 75 | 55 | 35 | 12 | 6 | 4 | 4 |
| TLWE2575 | 25.4 | 51 | 75 | 55 | 35 | 12 | 6 | 4 | 4 |
| TLWE3075 | 30 | 51 | 75 | 55 | 35 | 12 | 6 | 4 | 4 |
Our storage facility is laced with all the modern amenities, required for maintaining high quality of the products. Also, we upgrade it on regular intervals to meet defined industry standards. With the aid of our sophisticated packaging system, our skilled personnel are able to meet the standard as well as customized packaging requirements of the clients. Moreover, we check the entire lot before dispatch.
Technical Data
| Part Number | A | B | C | D | E |
|---|---|---|---|---|---|
| HB2263 | 28.4 | 22.2 | 63 | 12 | 12 |
| HB2263/A | 28.4 | 22.2 | 63 | 12 | 16 |
| HB2863 | 36.5 | 28.6 | 63 | 17 | 16 |
Graphical Images
For the utmost customer satisfaction, we are flexible in delivering the product range at the place agreed by the customers and that too in the set time. With our streamlined packaging system, we are capable of meeting standard as well as tailored packaging needs of the patrons. And, we make use of premium material for packaging.
Graphical Images
Technical Data
| Part Number | A | B | C |
|---|---|---|---|
| Br1641 | 19 | 16 | 41 |
| Br1633 | 22 | 16 | 33 |
| Br1941 | 25.4 | 19 | 33 |
| Br1950 | 25.4 | 19 | 41 |
| Br2244 | 25.4 | 19 | 50.8 |
| Br2263 | 28.4 | 22.2 | 44.5 |
| Br2250 | 28.4 | 22.2 | 63 |
| Br2250 | 28.6 | 22.2 | 50.8 |
| Br2844 | 32 | 25.4 | 50.8 |
| Br2852 | 36.5 | 28.6 | 44.5 |
| Br2864 | 36.5 | 28.6 | 65 |
| Br2844 | 38 | 28 | 44 |
Utilizing state-of-the-art packaging tools and superior grade supplies, we pack our products and help them remain protected from external damages. Furthermore, the packages are labeled properly for information. Working in close coordination with the genuine logisticians, we dispatch the products in the dedicated time.
Technical Data
| Part Number | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| Br3817 | 3x1.5 | 38 | 17 | 3x1.5 | 38 | 17 |
| Br5627 | 5x2.5 | 56 | 27 | 5x2.5 | 56 | 27 |
Graphical Images
Our packaging experts look after the ideal packaging of the product so that it reached the buyer in uncompromised state. Also, we make sure that the packaging material is of premium quality. Our well-structured warehouse is the reason behind the safety of the products we offer. Moreover, we have installed advanced amenities essential for the safe storage of the lot.
Features:
Graphical Images
Technical Data
| Part Number | A | B | C | d | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| KH 01 | 208 | 32 | 50 | 20 | 28 | 54 | 60 | 8 | 175 |
Utilizing state-of-the-art packaging tools and superior grade supplies, we pack our products and help them remain protected from external damages. Furthermore, the packages are labeled properly for information. Our organization has worked diligently to create a well-organized supply network. Thus, patrons can order the goods in wholesale and expect timely arrival of consignments.
Graphical Images
Technical Data
| Part Number | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| KDB 6330-403AF | 507 | 52 | 51.5 | 50 | 22 | 21 |
| KDB 6330-620AF | 730 | 55 | 106 | 51 | 22 | 21 |
Our company stocks the product in mass. Thus, we can cater to bulk/retail requirements with easy and ensure fast delivery of product. We are a quality-driven firm and dedicatedly work towards attaining maximum client satisfaction. And, for this, we have adopted several measures for ensuring high quality of our products.
Graphical Image 01
Graphical Image 02
Technical Data
| Part Number | A Min | A Max | B | C | D | E |
|---|---|---|---|---|---|---|
| JSA0203815 | 245 | 315 | 130 | M16x2 | 38 | 15 |
| JSA0213815 | 245 | 320 | 135 | M18x2.5 | 38 | 15 |
| JSA043815 | 280 | 350 | 130 | M20x2.5 | 38 | 15 |
| JSA053815 | 280 | 350 | 150 | M22x2.5 | 38 | 15 |
| JSA065525 | 300 | 370 | 150 | M24x2.5 | 55 | 25 |
| JSA063815 | 300 | 370 | 150 | M24x2.5 | 55 | 25 |
| JSA0213220 | 255 | 330 | 140 | M18x2.5 | 32 | 20 |
As a trusted name, we always make sure that our products are properly packed and remain free from damage during transit. For this, we have hired an adroit team of experts having immense experience in packaging. For the safe storage of the entire lot, we have a capacious and well-structured warehouse. Moreover, regular up-gradation in the warehouse is done to meet the changing scenario.
Graphical Images
Technical Data
| Part Number | d | L | D | D1 |
|---|---|---|---|---|
| JSEB06 | M18x2.5 | 70 | 39 | 15 |
| JSEB07 | M20x2.5 | 75 | 39 | 15 |
| JSEB08 | M22x2.5 | 80 | 39 | 15 |
| JSEB09 | M16x2 | 70 | 39 | 15 |
| JSEB10 | M24x2.5 | 66 | 55 | 25 |
We have strong tie-ups with the leading e-commerce merchants who provide us a secure payment gateway that helps us in avoiding physical movement of money. Development of modular control inside our warehouse helps in proper organization of the products and ensure complete safety while storage. The entire system is properly managed by our warehousing experts.
Graphical Images
Technical Data
| Part Number | d | L | D | D1 |
|---|---|---|---|---|
| JSEB06 | M18x2.5 | 70 | 39 | 15 |
| JSEB07 | M20x2.5 | 75 | 39 | 15 |
| JSEB08 | M22x2.5 | 80 | 39 | 15 |
| JSEB09 | M16x2 | 70 | 39 | 15 |
| JSEB10 | M24x2.5 | 66 | 55 | 25 |
Stay confident for the delivery schedules with us as we are recognized for making on-time deliveries. Our entire array of products is sternly manufactured using certified array of raw materials. These inputs are sourced only from trustworthy vendors present in the market.
Graphical Images
Technical Data
| Part Number | D | L | DIA-d | D1 | L1 |
|---|---|---|---|---|---|
| JSEB 20B | M20x2.5 | 125 | 20 | 42 | 65 |
| JSEB 24B | M24x2 | 125 | 24 | 42 | 65 |
Only quality packing material has been used for the packing of the products. Customers can stay rest assured for the safe delivery of the orders as our experts keep a vigil eye on the entire procedure. The offered lot is prepared using the best in class raw material that is sourced from the reliable places only. Besides, we check it for quality prior to procurement.
Graphical Images
Technical Data
| Part Number | Length A | Thread D |
|---|---|---|
| JTLPTR 08270 | 270 | M27X3 |
| JTLPTR 08330 | 330 | M27X3 |
| JTLPTR 08400 | 400 | M27X3 |
| JTLPTR 08420 | 420 | M27X3 |
| JTLPTR 08460 | 460 | M27X3 |
| JTLPTR 08480 | 480 | M27X3 |
| JTLPTR 08520 | 520 | M27X3 |
| JTLPTR 08600 | 600 | M27X3 |
Our well-structured warehouse is installed with the latest warehouse management software that helps in storing the entire lot in a safe and organized manner till the final dispatch. The assistance of our quality auditors helps us in acquiring quality-approved raw materials from the certified vendors. Thus, we ensure that our products are of unmatched quality.
Graphical Images
Technical Data
| Part Number | Length A | Thread D |
|---|---|---|
| JTLPTR 010350 | 350 | M30X3 |
| JTLPTR 010410 | 410 | M30X3 |
| JTLPTR 010460 | 490 | M30X3 |
Only quality-tested material is used for preparing the offered lot. As a result of which, we our offerings stand high on the expectations of the clients. No third party involvement is there while transactions, we keep the details confidential, as we known the security issues involved while making online payment. We make available offline payment options for you in case you don't want to opt for other mode.
Graphical Images
Technical Data
| Part Number | Length A | Thread D |
|---|---|---|
| JTLPTR 09270 | 270 | M30X3.5 |
| JTLPTR 09330 | 330 | M30X3.5 |
| JTLPTR 09370 | 370 | M30X3.5 |
| JTLPTR 09405 | 405 | M30X3.5 |
| JTLPTR 09450 | 450 | M30X3.5 |
| JTLPTR 09510 | 510 | M30X3.5 |
Stay confident for the delivery schedules with us as we are recognized for making on-time deliveries. We believe in providing quality-approved products to the clients. For this, we make sure that all the inputs are procured from certified vendors after complete analysis of the quality.
Graphical Images
Technical Data
| Part Number | Length A | Thread D |
|---|---|---|
| JTLPTR 011255 | 255 | M36X3 |
| JTLPTR 011370 | 370 | M36X3 |
| JTLPTR 011400 | 400 | M36X3 |
| JTLPTR 011440 | 440 | M36X3 |
| JTLPTR 011460 | 460 | M36X3 |
| JTLPTR 011500 | 500 | M36X3 |
| JTLPTR 011580 | 580 | M36X3 |
| JTLPTR 011660 | 660 | M36X3 |
We settle the financial transactions with our customers through the secured payment procedures. We also settle down upon a variety of negotiable instruments. We have high-tech and spacious storage unit that is incorporated with all required amenities vital for a safe storage of the products till the final send off. Supervised by efficient personnel, they ensure zero damage to the items to keep up the standards.
Graphical Images
Technical Data
| Part Number | D1 | D2 | L1 | L2 | L3 | Type |
|---|---|---|---|---|---|---|
| JF8720 | 20.2 | 28 | 63 | 40 | 87 | A |
| JF8725 | 25.4 | 28 | 63 | 40 | 87 | A |
| JF8728 | 28.4 | 28 | 63 | 40 | 87 | A |
| JF8732 | 32 | 28 | 63 | 40 | 87 | A |
| JF8720/A | 20.2 | 28 | 133 | 40 | 87 | B |
| JF8725/A | 25.4 | 28 | 133 | 40 | 87 | B |
| JF8728/A | 28.4 | 28 | 133 | 40 | 87 | B |
| JF8732/A | 32 | 28 | 133 | 40 | 87 | B |
| JF7028 | 28.4 | 28 | 57 | 40 | 70 | C |
We have well-maintained and capacious storage unit that includes all required facilities vital for a safe stacking of the products. We are working with experts and professionals and they supervise the range sternly ensuring zero damage to the stored items. We settle the financial transactions with our customers through the secured payment procedures. We also settle down upon a variety of negotiable instruments.
Technical Data
| Part Number | A (mm) | Length (mm) | ET. kg |
|---|---|---|---|
| JTLRJ346 | 3/4" | 346 | 0.78 |
| JTLRJ257 | 3/4" | 257 | 0.58 |
| JTLRJ305 | 3/4" | 305 | 0.68 |
| JTLRJ360 | 3/4" | 360 | 0.79 |
| JTLRJ321 | 3/4" | 321 | 0.71 |
| JTLRJ292 | 3/4" | 292 | 0.65 |
| JTLRJ315 | 1" | 315 | 1.28 |
| JTLRJ360 | 1" | 360 | 1.44 |
| JTLRJ274 | 1" | 274 | 1.13 |
As a trusted name, we always make sure that our products are properly packed and remain free from damage during transit. For this, we have hired an adroit team of experts having immense experience in packaging. Owing to the immense and well-maintained storage space, we efficiently keep the wide assortment of products in safe place to ensure complete safety. Our automated storage space helps us in maintaining the quality standards as well.
In order to make hassle free transactions, we have adopted an online payment procedure that ensures immediate transfer of money and confidentiality of clients' information. Since, we have stringent quality control policies, our entire range of products are trusted throughout the industry.

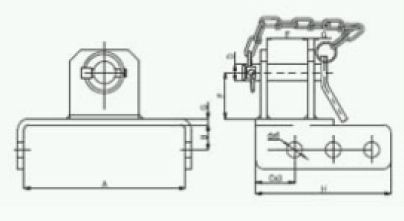

Graphical Images
Technical Data
| Part Number | A | B | C | D | E |
|---|---|---|---|---|---|
| JLLUR1970 | 19x70 | 28.4 | 45 | 800 | 150 |
We have maintained high quality standards in the market by offering quality-centralized lot of products. And, this is done by using high grade raw material obtained from reliable sources. In order to deliver qualitative lot of products, we have hired a team of quality examiners who strictly check the product quality at several stages.
Graphical Images
Technical Data
| Part Number | A | B | C | D | E |
|---|---|---|---|---|---|
| JLLUN1970 | 19x70 | 22.1 | 35 | 740 | 140 |
