Our Products
We are leaders in the market for providing best range of Mitsubishi FX5U 64MT ESS Extension Module, Mitsubishi FX5U 64MR ES Extension Module, Mitsubishi FX5U 32MR ES Extension Module, Mitsubishi FX5U8AD Extension Module and Mitsubishi FX5U4AD Extension Module
Specifications
| FA-COM PLC: Main Unit | |
|---|---|
| Type | FX5U |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 32 |
| Integrated Digital Outputs | 32 |
| Integrated Analogue Inputs | 2 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 40 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC IQ-F SERIES |
| Product Dimensions & Weight | |
| Width (mm) | 220 |
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 1 |
| Conformity | |
| CE | COMPLIANT |
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA | COMPLIANT |
Specifications
| FA-COM PLC: Main Unit | |
|---|---|
| Type | FX5U |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 32 |
| Integrated Digital Outputs | 32 |
| Integrated Analogue Inputs | 2 |
| Output Type | RELAY |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 40 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC IQ-F SERIES |
| Product Dimensions & Weight | |
| Width (mm) | 220 |
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 1 |
| Conformity | |
| CE | COMPLIANT |
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA | COMPLIANT |

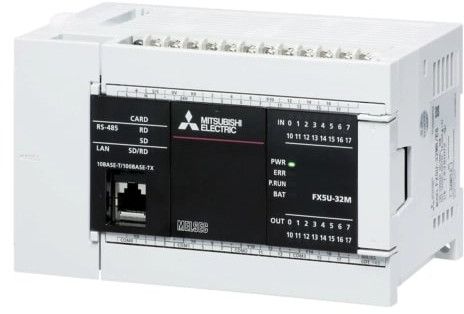

Specifications
| FA-COM PLC: Main Unit | |
|---|---|
| Type | FX5U |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Integrated Analogue Inputs | 2 |
| Output Type | RELAY |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 30 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC IQ-F SERIES |
| Product Dimensions & Weight | |
| Width (mm) | 150 |
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 0,65 |
| Conformity | |
| CE | COMPLIANT |
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA | COMPLIANT |

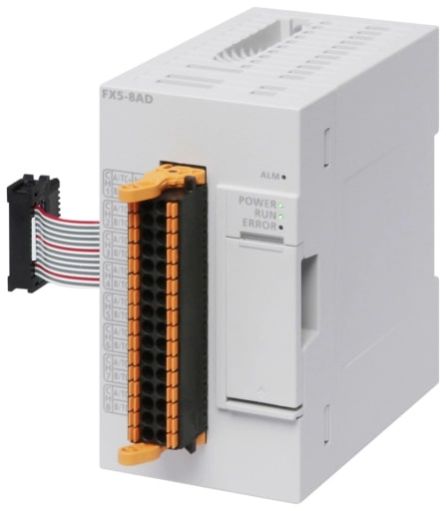

Specifications
| FA-COM PLC: Analogue I/O Module | |
|---|---|
| Series | MELSEC IQ-F SERIES |
| Type | ANALOG INPUT (+ THERM./RTD) |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 8 |
| Integrated Analogue Inputs | 8 |
| Input Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Input Current Range (mA) | -20-20; 0-20; 4-20 |
| Min. Ambient Temperature (°C) | -20 |
| Max. Ambient Temperature (°C) | 55 |
| Product Dimensions & Weight | |
| Width (mm) | 50 |
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 0,3 |
| Conformity | |
| CE | COMPLIANT |
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA | COMPLIANT |
Specifications
| FA-COM PLC: Analogue I/O Module | |
|---|---|
| Series | MELSEC IQ-F SERIES |
| Type | ANALOG INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Integrated Analogue Inputs | 4 |
| Input Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Input Current Range (mA) | -20-20; 0-20; 4-20 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Product Dimensions & Weight | |
| Width (mm) | 40 |
| Height (mm) | 90 |
| Depth (mm) | 102,2 |
| Weight (kg) | 0,2 |
| Conformity | |
| CE | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
| UKCA | COMPLIANT |
Specifications
| Delivery information | |
|---|---|
| Export Control Regulations | AL : N / ECCN : EAR99H |
| Estimated dispatch time (Working Days) | 1 Day/Days |
| Net Weight (lb) | 0.648 lb |
| Packaging Dimension | 3.74 x 4.173 x 2.953 |
| Package size unit of measure | Inch |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4034106029463 |
| UPC | 887621847289 |
| Commodity Code | 85389091 |
| LKZ_FDB/ CatalogID | STLOGO! |
| Product Group | 4071 |
| Group Code | R131 |
| Country of origin | China |
| Compliance with the substance restrictions according to RoHS directive | Since: 08/04/2014 |
| Returnable | Yes |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) |
Data Sheet

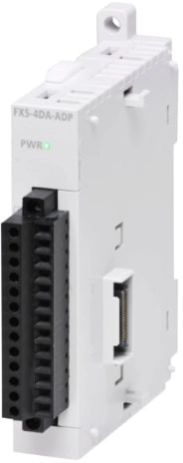

Specifications
| FA-COM PLC: Analogue I/O Module | |
|---|---|
| Series | MELSEC IQ-F SERIES |
| Type | ANALOG OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Integrated Analogue Outputs | 4 |
| Output Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Output Current Range (mA) | 0-20; 4-20 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Product Dimensions & Weight | |
| Width (mm) | 17,6 |
| Height (mm) | 106 |
| Depth (mm) | 89,1 |
| Weight (kg) | 0,1 |
| Conformity | |
| CE | COMPLIANT |
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA | COMPLIANT |
