Instrumentation & Control Equipment

Our product range contains a wide range of AB 20 HIM B1 Bezel Kit, AB 22COMME IP Adapter, AB 207502262C2R Power PCB, Mitsubishi FX5U-32MTESS Main Unit and Mitsubishi FX5U-80MTESS Main Unit

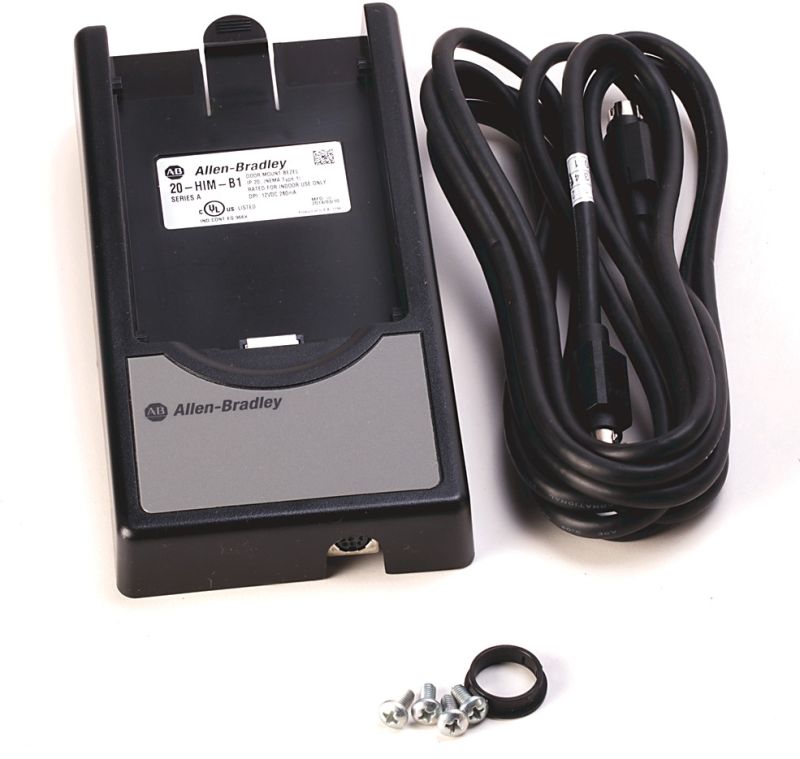

AB 20 HIM B1 Bezel Kit

Min. Order (MOQ) 5 Piece
Brand Name AB
Driven Type Electric
Packaging Type Black
Application Industrial
Voltage 220V
Warranty 1 Year

View Complete Details

Ask Latest Price & Details

AB 22COMME IP Adapter

Min. Order (MOQ) 5 Piece
Brand Name AB
Application Industrial
Power 1-3kw
Certification CE Certified
Voltage 220V
Warranty 1year

View Complete Details

Ask Latest Price & Details

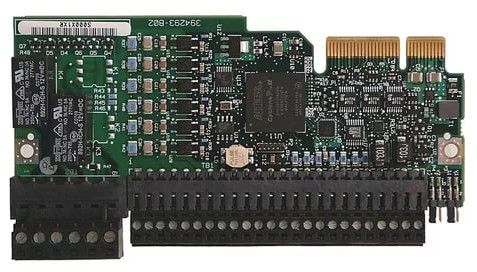

AB 207502262C2R Power PCB

Min. Order (MOQ) 5 Piece
Brand Name AB
Packaging Type Green
Material Plastic
Finishing Polished
Shape Rectangular
Usage Industrial
Warranty 1 Year

View Complete Details

Ask Latest Price & Details

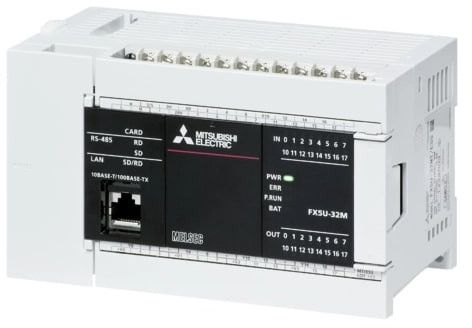

Mitsubishi FX5U-32MTESS Main Unit

Min. Order (MOQ) 5 Piece
Brand Name Mitsubishi
Usage/Application Industrial
Finishing Polished
Driven Type Electric
Color White
Automatic Grade Automatic
Warranty 1year

Specifications

FA-COM PLC: Main Unit
Type	FX5U
Power Supply (V)	100-240
Current Type	AC
Program Memory	64K STEPS
Program Memory Unit	FLASH
Integrated Digital Inputs	16
Integrated Digital Outputs	16
Integrated Analogue Inputs	2
Output Type	TRANSISTOR
Output Logic	SOURCE
Local I/O Points	256
Local + Remote I/O Points	512
Expandable	YES
Cycle Time LD (ns)	34
Cycle Time MOV (ns)	34
Ethernet Port	1
RS-485	1
Power Consumption (W)	30
Buffer Battery	OPTION
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Series	MELSEC IQ-F SERIES
Product Dimensions & Weight
Width (mm)	150
Height (mm)	90
Depth (mm)	83
Weight (kg)	0,65
Conformity
CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA	COMPLIANT

View Complete Details

Ask Latest Price & Details

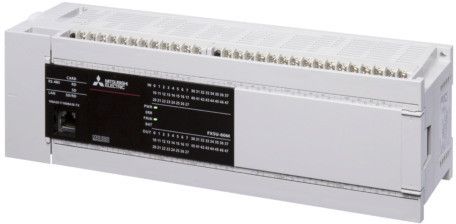

Mitsubishi FX5U-80MTESS Main Unit

Min. Order (MOQ) 5 Piece
Brand Name Mitsubishi
Usage/Application Industrial
Finishing Polished
Driven Type Electric
Color White
Automatic Grade Automatic
Warranty 1year

Specifications

FA-COM PLC: Main Unit
Type	FX5U
Power Supply (V)	100-240
Current Type	AC
Program Memory	64K STEPS
Program Memory Unit	FLASH
Integrated Digital Inputs	40
Integrated Digital Outputs	40
Integrated Analogue Inputs	2
Output Type	TRANSISTOR
Output Logic	SOURCE
Local I/O Points	256
Local + Remote I/O Points	512
Expandable	YES
Cycle Time LD (ns)	34
Cycle Time MOV (ns)	34
Ethernet Port	1
RS-485	1
Power Consumption (W)	45
Buffer Battery	OPTION
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Series	MELSEC IQ-F SERIES
Product Dimensions & Weight
Width (mm)	285
Height (mm)	90
Depth (mm)	83
Weight (kg)	1,2
Conformity
CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA	COMPLIANT

View Complete Details

Ask Latest Price & Details

Mitsubishi FX3U 48MT ES PLC Base Unit

Min. Order (MOQ) 5 Piece
Brand Name Mitsubishi
Power 100-240V AC
Usage/Application Industrial
Size Standard
Warranty 1 Year

Specifications

FA-COM PLC: Main Unit
Type	FX3U
Power Supply (V)	100-240
Current Type	AC
Program Memory	64K STEPS
Program Memory Unit	RAM
Integrated Digital Inputs	24
Integrated Digital Outputs	24
Output Type	TRANSISTOR
Output Logic	SINK
Local I/O Points	256
Local + Remote I/O Points	384
Expandable	YES
Cycle Time LD (ns)	65
Cycle Time MOV (ns)	642
RS-422	1
Power Consumption (W)	40
Buffer Battery	YES
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Series	MELSEC-F SERIES
Product Dimensions & Weight
Width (mm)	182
Height (mm)	90
Depth (mm)	86
Weight (kg)	0,85
Conformity
CE	COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA	COMPLIANT

View Complete Details

Ask Latest Price & Details

Mitsubishi FX3U 48MR ES PLC Base Unit

Min. Order (MOQ) 5 Piece
Brand Name Mitsubishi
Automation Grade Automatic
Usage/Application Industrial
Color White
Size Standard
Warranty 1 Year

Specifications

FA-COM PLC: Main Unit
Type	FX3U
Power Supply (V)	100-240
Current Type	AC
Program Memory	64K STEPS
Program Memory Unit	RAM
Integrated Digital Inputs	24
Integrated Digital Outputs	24
Output Type	RELAY
Local I/O Points	256
Local + Remote I/O Points	384
Expandable	YES
Cycle Time LD (ns)	65
Cycle Time MOV (ns)	642
USB	OPTION
RS-422	1
Power Consumption (W)	40
Buffer Battery	YES
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Series	MELSEC-F SERIES
Product Dimensions & Weight
Width (mm)	182
Height (mm)	90
Depth (mm)	86
Weight (kg)	0,85
Conformity
CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA	COMPLIANT
