Description :

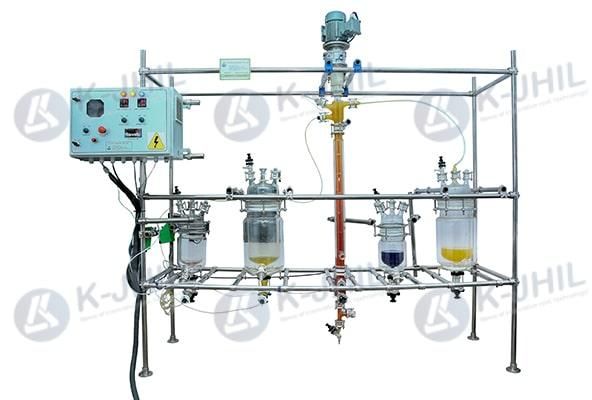

• Liquid extraction, sometimes called solvent extraction, it the separation of a liquid of a liquid solution by contact with another insoluble liquid. The Fully Automatic Solvent Extraction Plant described is for semi-batch operation.
• The liquid to be extracted is poured into extraction vessel. Solvent is boiled in a re-boiler vessel and condensed in an overhead condensed, the condensed liquid in a reflux divider and passing through pipe work to the extraction vessel. The pipe work incorporates valve in order that the solvent can enter the extraction vessel at either the base of the top, depending on the relative density of the solvent and liquid to be extracted.
• The solvent and the extracted liquid pass back to the re-boiler and the process is reputed until the extraction is complete. The extraction vessel is than drained and the solvent evaporated from the re-boiler vessel and collected in the extraction vessel enabling the two liquids to be drained from their respective vessel.
• The Solvent Extraction Plant is available in vessel size upto 500 Ltr. and is suitable for operation under atmosphere pressure and vacuum. Today, we have carved a niche as one of the prime Modular Solvent Extraction Plant Exporters based in India.

We are one of the trusted companies in India, which is manufacturer and exporter of Liquid Liquid Extraction unit. The unit we provide is based on latest technology, which is mechanically designed and tested by our engineers so that it can give the best of its performance. Our unit is fully customized to meet our client’s requirement.

Features :

• Easy maintenance
• Sturdy structure
• Fine functionality

Liquid extraction, sometimes called solvent extraction, is the separation of constituents of a liquid solution by contacting with another insoluble liquid. The unit described here is for a semi-batch operation.

Process Description :The liquid to be extracted is poured into an extraction vessel. Solvent is boiled in a reboiler vessel and condensed in an overhead condenser, the pipework to the extraction vessel. The pipework incorporates valves in order that the solvent can enter the extraction vessel at either the base or the top, depending on the relative densities of the solvent and liquid to be extracted.
The solvent and the extracted liquid pass back to the reboiler and the process is repeated until the extraction is complete. The extraction vessel is then drained and the solvent evaporated from the reboiler vessel and collected in the extraction vessel enabling the two liquids to be drained form their respective vessels.
The units are available in vessel sizes of 10, 20, & 50 Ltr.  and are suitable for operation under atmospheric pressure.

K-JHILs Fully Automatic Gold Refining System is designed to operate automatically under the set parameters, e.g. batch Start / Stop time, batch quantity, emergency stop button etc. Everything is controlled through specially designed control panel containing dynamic graphics for ease of access.

Features :

• Control Panel Equipped with Touch Screen for :
• Auto/Manual Facilities
• Automatic Ratio Calculation
• Auto Acid Charging System
• Auto Scrubbing System
• Auto Precipitation
• Auto Transfer system
• Auto Temperature control and Graphs
• Emergency Stop Push button

We are one of the trusted companies in India, which is manufacturer and exporter of Solid Liquid Extraction Unit. The unit we provide is based on latest technology, which is mechanically designed and tested by our engineers so that it can give the best of its performance. Our unit is fully customized to meet our client’s requirement.
Process Description :This operation involves preferential solubilising of one or more soluble constituents (solutes) of a solid mixture by a liquid solvent. The unit described here is for a semi-batch operation. The solid to be extracted is put inside a glass fibre bag and placed in an extraction vessel. Solvent from the reboiler is continuously evaporated, condensed and circulated through a reflux divider by means of piping network and valves.
When desired/ steady concentration of solute is achieved in the solution the operation is discontinued. The solution is drained off and collected for further use. After charging fresh solid in fibre bag and solvent in reboiler, the cycle can be restarted again.
The units are available in vessel sizes of 10, 20, & 50 Ltr and are suitable for operation under atmospheric pressure.

Features :

• Easy maintenance
• Sturdy structure
• Fine functionality

K-JHILs Semi-Automatic Gold Refining System is designed with specially designed control panel where each operation is done by operating buttons manually. The only difference between automatic and semi-automatic is that you have to operate switch manually for each step.

Features :Control Panel Equipped With Switches For :

• Acid Charging System
• Scrubbing System
• Precipitation
• Transfer system
• Temperature control

At K-JHIL we specially design and engineer system for Platinum Group Metal (PGM) as per client’s requirement and convenience. Contact us for more details.
