Solid Liquid Extraction Plant, for Industrial, Certification : CE Certified

Listing ID #6087027

Get Latest Price

TypeAutomatic
CertificationCE Certified
ApplicationIndustrial
Voltage220V
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Type Automatic
Certification CE Certified
Application Industrial
Voltage 220V
Power 5-10kw
Warranty 1 Year

We are one of the trusted companies in India, which is manufacturer and exporter of Solid Liquid Extraction Unit. The unit we provide is based on latest technology, which is mechanically designed and tested by our engineers so that it can give the best of its performance. Our unit is fully customized to meet our client’s requirement.

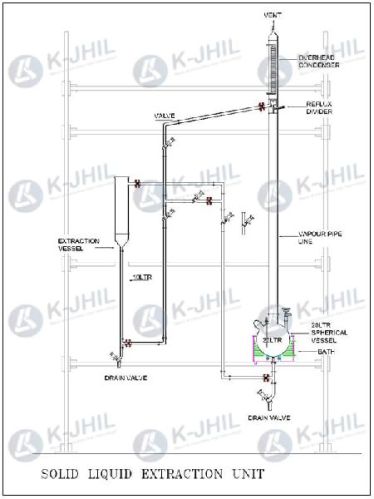

Process Description :
This operation involves preferential solubilising of one or more soluble constituents (solutes) of a solid mixture by a liquid solvent. The unit described here is for a semi-batch operation. The solid to be extracted is put inside a glass fibre bag and placed in an extraction vessel. Solvent from the reboiler is continuously evaporated, condensed and circulated through a reflux divider by means of piping network and valves.
When desired/ steady concentration of solute is achieved in the solution the operation is discontinued. The solution is drained off and collected for further use. After charging fresh solid in fibre bag and solvent in reboiler, the cycle can be restarted again.
The units are available in vessel sizes of 10, 20, & 50 Ltr and are suitable for operation under atmospheric pressure.
Features :

Easy maintenance
Sturdy structure
Fine functionality

Specifications

Reactor Capacity	Bath KW	Vapour Line	Extraction Vessel	Condenser M2
10 L	2	40mm x 1m	10 L	0.35
20 L	3	50mm x 1m	20 L	0.5
50 L	4.5	80mm x 1m	50 L	1.5

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Banking on a rich industry experience of over 2 decades, we at K-JHIL have emerged as a distinguished name in our functional domain. We are having expertise in manufacturing, supplying and exporting a wide range of Process Plants, Solvent Recovery Plant, Essential Oil Plants, Herbal Extraction Unit, Rose Oil Plant, Jasmine Oil Plant Our range includes Chemical Processing systems, Glass Units, Process Automation, PLC Scada design and development, instrumentation etc., which find use in Chemical Industries, Laboratory Glass Units, Acid Dilutions Units, Laboratory Glass Apparatus, Industrial Pipelines, and more.
We Design using quality raw material, such as borosilicate glass, our products are durable, reliable, and can be safely used with all types of vessels, including 5 to 200 liter stirrers, valves, flanges, gaskets, heat exchangers, pipeline & column components, automation measurement & control equipment, etc. In addition to engineering high quality Process Systems, we are also engaged in activities like Erection, Commissioning and Servicing of Process Systems. Owing to our quality products and services, we have attained coveted memberships and affiliations from TUV and DAR.
As an industry-leading manufacturer, we have set up a sophisticated manufacturing unit, where we fabricate a customized product range as per specifications provided by customers. This unit is fully outfitted with latest automation technology and advanced machinery, which ensures that the customized products we design are in strict agreement with clients’ specifications and conform to their specific requirements. We also manage a high-tech quality control unit where our trained quality control professionals test our manufactured range on prescribed parameters to guarantee delivery of flawless products. Empowered by technologically advanced machines and proficient professionals, we ensure swift production and delivery of quality-assured products within the scheduled time frame.
