Our Products

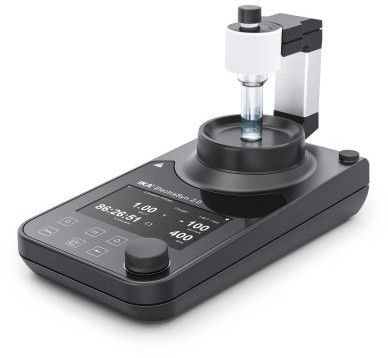

Our product range contains a wide range of Ika Electrochemistry Kit
Technical Data
| Nominal voltage (input) | 48 VDC |
| Current max. (input) | 1500 mA |
| Voltage output (electrode) | 30/10 V |
| Current output (electrode) | 100 mA |
| Motor rating output | 9 W |
| Speed range | 50 - 1500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring quantity max. per stirring position (H2O) | 0.1 l |
| Stirring bar length | 8 - 16 mm |
| Speed adjustment | Turning knob |
| Display | TFT |
| Output current resolution | 0.1 mA |
| Output voltage resolution | 0.01 V |
| Current measuring resolution | 0.1 mA |
| Voltage measuring resolution | 0.1 V |
| Current measuring accuracy | 0.1 mA |
| Voltage measuring accuracy | 0.01 V |
| Dimensions (W x H x D) | 130 x 150 x 250 mm |
| Weight | 3.72 kg |
| Permissible ambient temperature | 5 - 50 C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| USB interface | Micro-USB |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 39.84 W |
| Power input standby | 5 W |
| DC Voltage | 48 V= |
| Current consumption | 750 mA |
Scope of delivery
Additional Information:
Payment Terms : D/A
Packaging Details : Box
Delivery Time : 4-6 Weeks
