We offer a complete product range of Final Shaping Machine

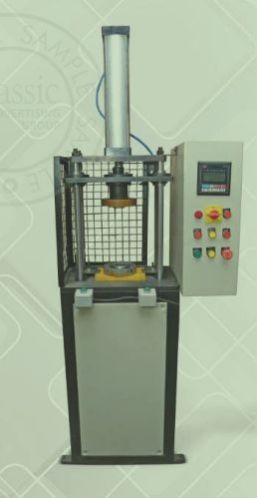

Final Shaping Machine
-
Min. Order (MOQ)
1 Piece
-
Rated Power
5HP
-
Stator Stack Height
10mm-150mm
-
Min. stator I.D
30mm
-
Max. stator O.D
20mm
-
Power Supply
3 Ph, 380v AC, 50 Hz
-
Net Weight
550 KG
-
Dimension
630 x 600 x 2000 mm
-
Operation Method
Hydraulic Based
Details
- This machine is specially designed for Coil forming purpose.
- The machine is suitable for forming up the small to medium size stator coil.
- This machine is especially suitable for the difficult rearrangement of 2 poles, 4poles, 6 poles coil shaping.
- The production cost will be highly reduced by decreasing the material loss and labor cost.
Controllers Features
- Using upper, lower and center axis molds, this machine can not only rearrange the outlook of tone coil, but also fit the sizing rearrangement.
- Vertical design minimizes the space requirement.
- One step operation.
- Molds are applicable to different stack height of stators.
