Wire Making Machines

We offer a complete product range of Coil Winding Machine, Coil Forming Machine, Wire Stripping Machine and Middle Forming Machine

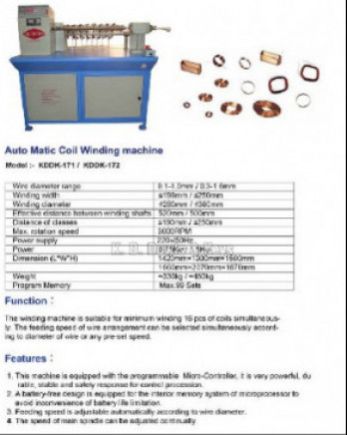

Coil Winding Machine

₹ 2.90 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece(s)
Number Of Flower Automatic
Suitable For Minimum 16 Pcs Of Coil
Material Metal
Packaging Type Multicolor
Packaging Type Industrial Standard Packaging
Usage Coil Winding
Power Source Electric
Functions Winding 16 Pcs Of Coil Simultaneously
Feeding Speed Selectable Based On Wire Diameter Or Pre-set Speed
Wire Arrangement Adjustable Feeding Speed
Maximum Coil Capacity 16 Pcs
Control System Programmable

We offer coil winding machine. Functions. The winding machine is suitable for minimum winding 16 pcs of coil simultaneously. The feeding speed of wire arrangement can be selected simultaneously according to diameter of wire or any pre -set speed.

View Complete Details

Ask Latest Price & Details

Coil Forming Machine

Min. Order (MOQ) 1 Piece
Power 5HP
Power Supply 3 Ph, 380v AC, 50 Hz
Stator stack height 10mm-150mm
Min. Stator I.d 30mm
Max. Stator O.d 200mm
Net weight 550 KG
Dimension 630 x 600 x 2000 mm
Operation Method Hydraulic Based

Details

This machine is specially designed for Coil forming purpose.
The machine is suitable for forming up the small to medium size stator coil.
This machine is especially suitable for the difficult rearrangement of 2 poles, 4poles, 6 poles coil shaping.
The production cost will be highly reduced by decreasing the material loss and labor cost.

Controllers Features

Using upper, lower and center axis molds, this machine can not only rearrange the outlook of tone coil, but also fit the sizing rearrangement.
Vertical design minimizes the space requirement.
One step operation.
Molds are applicable to different stack height of stators.

View Complete Details

Ask Latest Price & Details

Wire Stripping Machine

₹ 45,000 - ₹ 50,000 / Piece Get Latest Price

Min. Order (MOQ) 1 Piece(s)
Number Of Flower Automatic Wire Stripping Machine
Material Metal
Application Wire Cutting And Stripping
Control Panel Convenient And Explicit Touch Panel
Display Digital Display
Capacity Up To 999 Units Of Information
Automatic Stop Feature Automatically Stops When Coil Wire Ends
Wastage Zero Wastage Under Instructions

Wire Striping Machine manufactured by us is designed specifically in price steady body with convenient and explicit touch panel. Wire Cutting Cum Stripping Machine offered by us is fully computerized with digital display and capacity to store up to 999 units of information. Its new improved safety features ensures zero wastage, when operating under instructions. The machine can stop operating automatically when the coil wire ends. The increasing demand of this machine has made us one of the efficient Automatic Wire Striping Machine Manufacturers in India.

View Complete Details

Ask Latest Price & Details

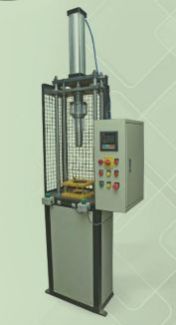

Middle Forming Machine

Min. Order (MOQ) 1 Piece
Stator Stack Height 18mm – 100mm
Max. stator O.D ø, 130mm
Min. stator I.D range ø, 30mm
Power Supply 1-phase, 220v/50HZ
Air Pressure 5.5 PH
Dimension 600 x 550 x 2300mm
Net Weight 250 KG
Operation method Pneumatic/ Hydraulic based

Details

This machine is specially designed for middle forming purpose.
In this machine coil is pressed automatically in accordance with stack height of stator.
This machine can rearrange the outlook of tone coil.
The production cost will be highly reduced by decreasing the material loss and labor cost.

Controllers Features
