Khurmi Communication

Barnala, Punjab

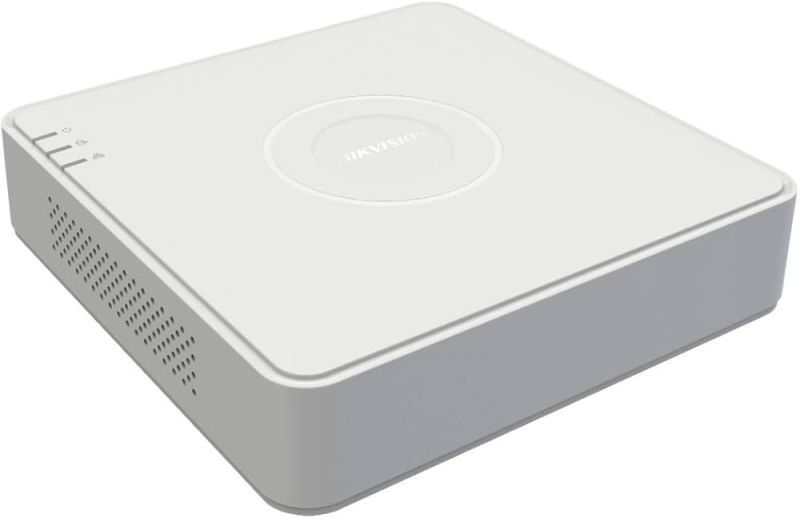

Short Description :

• Connector Type    Wired
• Item Dimensions LxWxH 20x20x4.5Centimeters
• Brand HIKVISION
• Memory Storage Capacity    6 TB
• Wattage    12 Watts

Features and Functions

• Video Input and Transmission
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 2-ch 4 MP IP cameras input
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Up to 3 MP resolution for recording of channel 1 of DS-7A04HQHI-K1, channel 1/2 of DS-7A08HQHI-K1, and channel 1/2/3/4 of DS-7A16HQHI-K1
• Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
• Video Output
• Simultaneous HDMI/VGA output

Storage and Playback

• One SATA interface (up to 6 TB capacity per HDD)
• 4/8/16-ch synchronous playback
• Smart search for efficient playback
• Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• VQD (Video Quality Diagnostics)
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• One RJ45 10M/100M Ethernet network interface
• Output bandwidth limit configurable

Specifications

Model : DS-7A16HQHI-K1

• Video/Audio input
• Video compression : H.265+/H.265/H.264+/H.264
• Analog video input : 4-ch , BNC interface (1.0 Vp-p, 75 Q), supporting coaxitron connection
• HDTVI input : 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 mP signal input is only available for channel 1 of DS-7A04HQHI-K1, channel 1/2 of DS-7A08HQHI-K1, and channel 1/2/3/4 of DS-7A16HQHI-K1.
• AHD input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 1080p25, 1080p30, 720p25, 720p30
• CVBS input : Support
• IP video input : 1-ch, Up to 4 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
• Audio compression : G.711u
• Audio input/Two-way audio input    : 1-ch, RCA (2.0 Vp-p, 1 KQ)
• Video/Audio output

HDMI/VGA output    : 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz        Encoding resolution : When 1080p Lite mode not enabled: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF        Frame rate : Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)        Video bit rate : 32 Kbps to 6 Mbps

Features and Functions

Video Input and Transmission

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 2-ch 6 MP IP cameras input
• 5 MP/4 MP HDTVI video input and live view
• Defogging function enabled for the supported analog cameras
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Full channel recording at up to 5 MP resolution

Video Output

• Simultaneous HDMI/VGA output
• HDMI output at up to 4K (3840 × 2160) resolution for DS-7B08/7B16HUHI-K2
• Separate CVBS output

Storage and Playback

• 2 SATA interfaces (up to 8 TB capacity per HDD)
• 8/16-ch synchronous playback
• Smart search for efficient playback
• Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
• VCA information overlay in live view and smart playback
• VQD (Video Quality Diagnostics)
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• 1 RJ45 10M/100M self-adaptive Ethernet interface for DS-7B04HUHI-K2, and 1 RJ45 10M/100M/1000M self-adaptive
• Ethernet interface for DS-7B08/7B16HUHI-K2
• Output bandwidth limit configurable
• Hikvisiion Model No : DS-7B04HUHI-K2 : 4ch
• Hikvision Model No : DS-7B08HUHI-K2 : 8ch
• Hikvision Model No DS-7B16HUHI-K2 : 16ch

Hikvision Model No : DS-7B04HUHI-K2 Series 4port 5megapixel 2 Sata hard disk DVR

Specifications

Video/Audio input

• Model : DS-7B04HUHI-K2
• Video compression : H.265+/H.265/H.264+/H.264
• Analog video input : 4-ch,  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input : 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• AHD input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 1080p25, 1080p30, 720p25, 720p30
• CVBS input : PAL/NTSC
• IP video input : 2-ch,  Up to 6 MP resolution,  Supports H.265+/H.265/H.264+/H.264 IP cameras
• Audio compression : G.711u
• Audio input : 4-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• CVBS output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI/VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding resolution : 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame rate : Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
• Video bit rate : 32 Kbps to 10 Mbps
• Audio output : 1-ch, RCA (Linear, 1 KΩ)
• Audio bit rate : 64 Kbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Synchronous playback : 4-ch

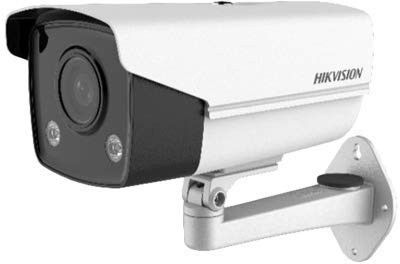

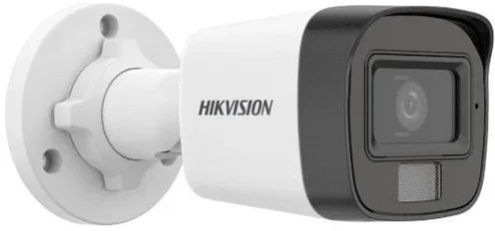

3K ColorVu Smart hybrid light Fixed Mini Bullet Camera

• High quality imaging with 3K, 2960 × 1665 resolution
• 24/7 color imaging with F1.0 aperture
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• High quality audio with audio over coaxial cable, built-in mic
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options

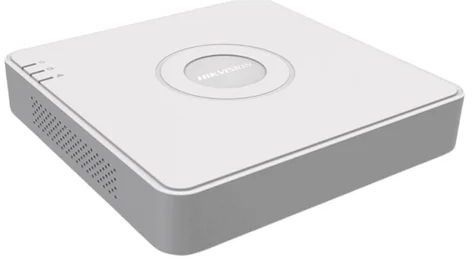

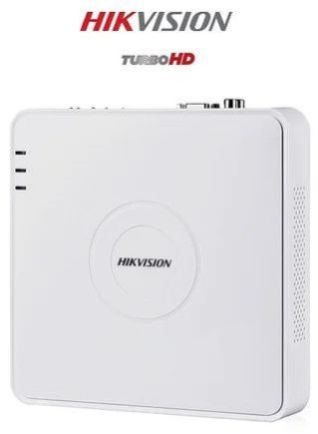

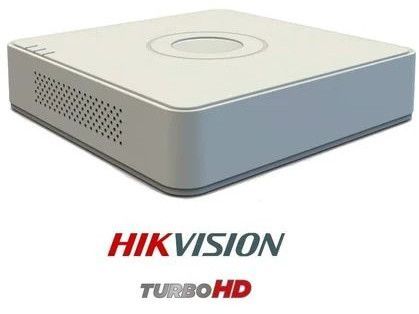

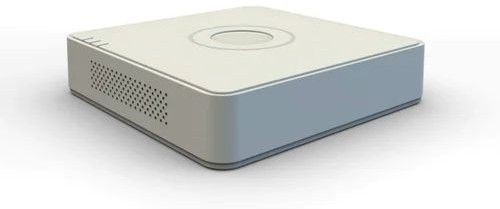

HD-TVI DVR

Video Input and Transmission

• Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
• Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal

Compression and Recording

• One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
• Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p

Video Output

• HDMI/VGA output at up to 1920 × 1080 resolution

• Storage and PlaybackOne SATA interface (up to 6 TB capacity per HDD);4/8/16-ch synchronous playback;Smart search for efficient playback
• Smart FunctionVQD (Video Quality Diagnostics);Unlock pattern for device login for the admin and clear-text password available;GUID file can be exported for password resetting and imported for finding the forgotten password;Supports PTZ control via Omnicast VMS of Genetec protocol
• Network & Ethernet AccessHik-Connect & DDNS (Dynamic Domain Name System) for easy network management; One RJ45 10M/100M Ethernet network interface; Output bandwidth limit configurable

Video/Audio input

• Video compressionH.264+/H.264
• Analog and HD-TVI video input8-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Turbo HD input1080p25, 1080p30, 720p25, 720p30
• AHD input1080p25, 1080p30, 720p25, 720p30
• HDCVI input1080p25, 1080p30, 720p25, 720p30
• CVBS inputSupport
• IP video input2-ch(up to 10-ch)Up to 2MP resolution
• Audio compressionn G.711u
• Audio input/Twoway audio input1-ch , RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding resolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIFWhen 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
• Frame rateMain stream:When 1080p Lite mode not enabled:For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:Frame rate 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:2CIF@6fps;CIF/QVGA/QCIF@ 25fps(P)/30fps (N)Sub-stream:4CIF/2CIF@6fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)
• Video bit rate32 Kbps to 4 Mbps
• Dual streamSupport
• Stream typeVideo, Video & Audio
• Synchronous playback8-ch

Network management

• Remote connections128
• Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk

External Interface

• Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
• USB interfaceRear panel: 2 × USB 2.0

General

• Power supply12 VDC
• Consumption (without HDD)≤ 12 W
• Working temperature-9 ºC +55 ºC (14 ºF 131 ºF)
• Working humidity10% to 90%
• Dimensions200 × 200 × 45 mm (20.07 × 20.07 × 4.57 cm)
• Weight (without HDD)≤ 0.8 kg (1.8 lb)

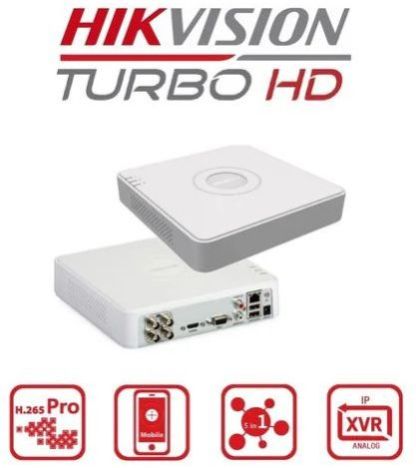

Support H.265 Pro+/H.265 Pro/H.265 video compressionSupport HDTVI/AHD/CVI/CVBS/IP video inputUp to 18-ch IP camera input (up to 5 MP)Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmissionUp to 10 TB capacity per HDD

Compression and Recording

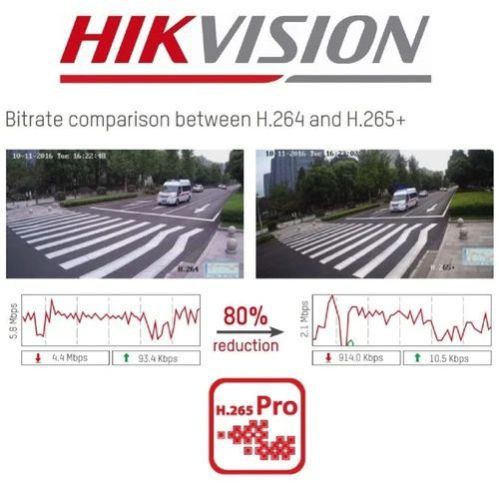

• H.265 Pro+ video compression improves encoding efficiency and reduces data storage costs
• Full channel recording at up to 1080p lite resolution

Storage and Playback

• Smart search for efficient playback

Smart Function

• Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Support 1-ch line crossing detection and intrusion detection

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Configurable output bandwidth limit

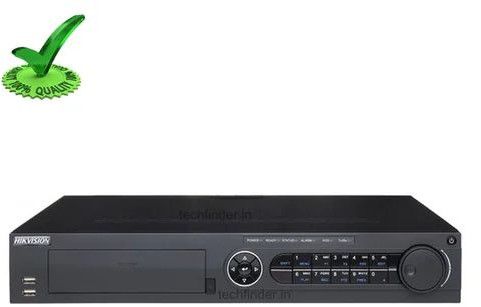

SpecificationModel : DS-7216HGHI-K1Recording

• Video compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution : 1080p lite/720p/VGA/WD1/4CIF/CIF
• Frame rate : Main stream:For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps, (P)/30fps (N), For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N), For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), Sub-stream:For 1080p and 720p stream access: CIF/QVGA@15fps, For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
• Video bit rate : 32 Kbps to 4 Mbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Audio compression : G.711u
• Audio bit rate : 64 Kbps

Video and Audio

• IP video input : 2-ch (up to 18-ch), Up to 5 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input : 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input : 1080p25, 1080p30, 720p25, 720p30
• AHD input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 1080p25, 1080p30, 720p25, 720p30
• CVBS input : PAL/NTSC
• HDMI/VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio output : 1-ch, RCA (Linear, 1 KΩ)
• Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback : 16-ch

Network

• Remote connections : 128
• Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network interface : 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary interface

• SATA : 1, SATA interface
• Capacity : Up to 10 TB capacity for each disk
• USB interface : 2 × USB 2.0

General

• Power supply : 12 VDC
• Consumption (without HDD) : ≤ 10 W
• Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity : 10% to 90%

Key Features

• 1/3" progressive scan CMOS
• Up to 3.0 megapixel
• 2.8 mm/4 mm/6 mm fixed focal lens
• Upto30mIRrange
• Dual stream
• Digital WDR (Wide Dynamic Range)
• 3D DNR (Digital Noise Reduction)
• PoE (Power over Ethernet)
• IP67
• Mobile monitoring via Hik-Connect or iVMS-4500

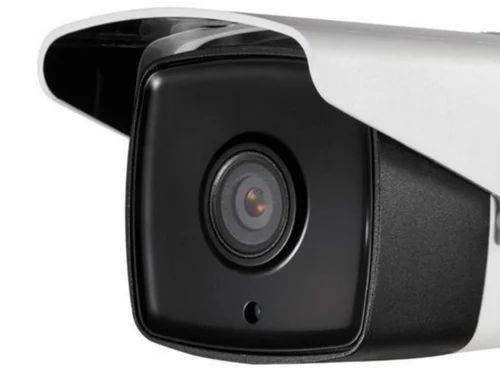

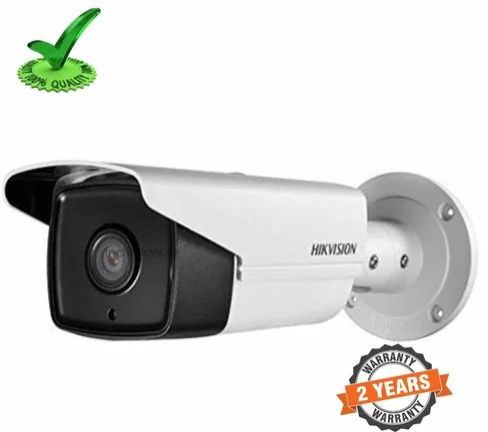

Hikvision DS-2CD123P-I3 3mp CMOS Network Ip Ir Bullet Camera

Specification

Camera

• Image Sensor : 1/3" progressive scan CMOS
• Min. Illumination : Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
• Shutter Speed : 1/3 s to 1/100, 000 s, support slow shutter
• Lens : 2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6° 6 mm @F2.0, horizontal field of view 55°
• Lens Mount : M12
• Day &Night : IR cut filter with auto switch
• 3-Axis Adjustment (Bracket) : Pan: 0° to 360°, tilt: -90° to 90°, rotation: 0° to 360°
• DNR (Digital Noise Reduction) : 3D DNR
• WDR (Wide Dynamic Range) : Digital WDR

Compression Standard

• Video Compression : Main stream: H.264+/H.264 Sub stream: H.264/MJPEG
• H.264 Type : Main profile/High profile
• Video Bit Rate : 32 Kbps to 16 Mbps


• Max. Resolution : 2304 × 1296
• Main Stream / Max. Frame Rate : 50Hz: 20fps @(2304 × 1296), 25fps @(1920 × 1080, 1280 × 720) / 60Hz: 20fps @(2304 × 1296), 30fps @(1920 × 1080, 1280 × 720)
• Sub-stream / Max. Frame Rate : 50Hz: 25fps @(640 × 360, 352 × 288) / 60Hz: 30fps @(640 × 360, 352 × 240)
• Image Settings : Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
• Day/Night Switch : Support auto, scheduled
• Others : Mirror, BLC (area configurable), region of interest (support 1 fixed region)

Network

• Network Storage : NAS (NFS, SMB/CIFS)
• Detections : Motion Detection
• Alarms : Video tampering, network disconnected, IP address conflicted
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Standard : ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
• General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Interface

• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port

General

• Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, PoE (802.3af)
• Power Consumption : Max. 5 W/6.5 W (PoE)
• Ingress Protection : IP67
• IR Range : Up to 30 m
• Dimensions : 69.1 mm × 66 mm × 172.7 mm ( 2.7" × 2.6" × 6.8")
• Weight : 500 g (1.1 lb.)

Short Description :

• Appearance Design
• Typical chassis design to guarantee the low noise and environmental protection of the device
• Front slot for insertion of DVD-R/W with bracket to make it more convenient to install and maintain

Video Input and Transmission

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 6 MP IP cameras input
• Long distance transmission over UTP and coaxial cable

Compression and Recording

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Supports 4 MP lite
• Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
• Supports POS triggered recording and POS information overlay

Video Output

• Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 ×2160) resolution
• Separate CVBS output

Storage and Playback

• Four SATA interfaces (up to 8 TB capacity per HDD) and 1 eSATA interface
• 16-ch synchronous playback
• Smart search for efficient playback
• Supports playback by main stream, or sub-stream for IP cameras
• Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Supports 4-ch line crossing detection and intrusion detection, and 1-ch sudden scene change detection
• VQD (Video Quality Diagnostics)
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• One RJ45 10M/100M/1000M Ethernet network interface
• Output bandwidth limit configurable

SpecificationsModel : DS-7324HQHI-K4 DS-7332HQHI-K4Video/Audio input

• Video compression : H.265+/H.265/H.264+/H.264
• Analog video input : 24-ch, 32-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input : 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60, Note: The 3 MP signal input is only available for channel 1/2/3/4.
• AHD input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 1080p25, 1080p30, 720p25, 720p30
• CVBS input : PAL/NTSC
• IP video input : 8-ch (up to 32-ch) 8-ch (up to 40-ch), Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
• Audio compression : G.711u
• Audio input : 4-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• CVBS output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI1/VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI2 output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding resolution : When 1080p Lite mode not enabled:4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF, When 1080p Lite mode enabled:4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Key Feature

• Deep learning-based motion detection 2.0 for all analog channels
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 6/12/24-ch IP camera inputs (up to 6 MP)
• Up to 10 TB capacity per HDD

Compression and Recording

• H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
• Full channel recording at up to 1080p resolution

Storage and Playback

• Smart search for efficient playback
• Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Deep learning-based motion detection, perimeter protection (line crossing and intrusion detection), or facial detection
• Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras

Network & Ethernet Access

• Compatible with major Wi-Fi dongle products in the market
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Output bandwidth limit configurable

Specification

• Model : iDS-7216HQHI-M1/S

Motion Detection 2.01

• Human/Vehicle Analysis : Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Perimeter Protection1

• Human/Vehicle Analysis : Up to 4-ch

Facial Detection1

• Facial detection and capture : 1-ch human face capture (HD analog camera)

Recording

• Video compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution :  Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)  Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
• Video bitrate : 32 Kbps to 6 Mbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Audio compression : G.711u
• Audio bitrate : 64 Kbps

Video and Audio

• IP video input2 : 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps
• Analog video input : 16-ch (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input :  4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps,  720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS- 7216HQHI-M1/S.
• AHD input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS input : PAL/NTSC
• CVBS output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI/VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output.

Video Input and Transmission

• Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
• Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal

Compression and Recording

• One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
• Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p

Video Output

• HDMI/VGA output at up to 1920 × 1080 resolution

• Storage and PlaybackOne SATA interface (up to 6 TB capacity per HDD);4/8/16-ch synchronous playback;Smart search for efficient playback
• Smart FunctionVQD (Video Quality Diagnostics);Unlock pattern for device login for the admin and clear-text password available;GUID file can be exported for password resetting and imported for finding the forgotten password;Supports PTZ control via Omnicast VMS of Genetec protocol
• Network & Ethernet AccessHik-Connect & DDNS (Dynamic Domain Name System) for easy network management; One RJ45 10M/100M Ethernet network interface; Output bandwidth limit configurable

Video/Audio input

• Video compressionH.264+/H.264
• Analog and HD-TVI video input8-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Turbo HD input1080p25, 1080p30, 720p25, 720p30
• AHD input1080p25, 1080p30, 720p25, 720p30
• HDCVI input1080p25, 1080p30, 720p25, 720p30
• CVBS inputSupport
• IP video input2-ch(up to 10-ch)Up to 2MP resolution
• Audio compressionn G.711u
• Audio input/Twoway audio input1-ch , RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding resolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIFWhen 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
• Frame rateMain stream:When 1080p Lite mode not enabled:For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:Frame rate 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:2CIF@6fps;CIF/QVGA/QCIF@ 25fps(P)/30fps (N)Sub-stream:4CIF/2CIF@6fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)
• Video bit rate32 Kbps to 4 Mbps
• Dual streamSupport
• Stream typeVideo, Video & Audio
• Synchronous playback8-ch

Network management

• Remote connections128
• Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk

External Interface

• Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
• USB interfaceRear panel: 2 × USB 2.0

General

• Power supply12 VDC
• Consumption (without HDD)≤ 12 W
• Working temperature-9 ºC +55 ºC (14 ºF 131 ºF)
• Working humidity10% to 90%
• Dimensions200 × 200 × 45 mm (20.07 × 20.07 × 4.57 cm)
• Weight (without HDD)≤ 0.8 kg (1.8 lb)

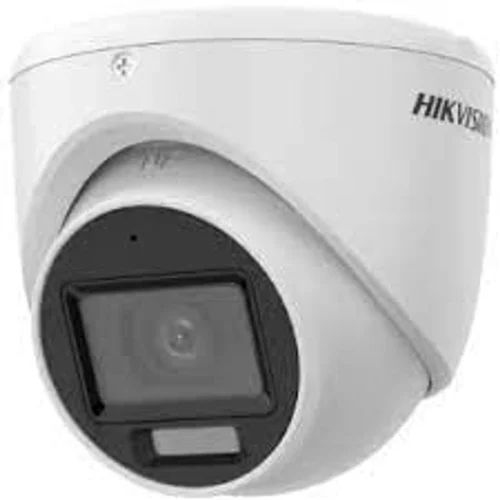

• High quality imaging with 3K, 2960 × 1665 resolution
• 24/7 color imaging with F1.0 aperture
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options

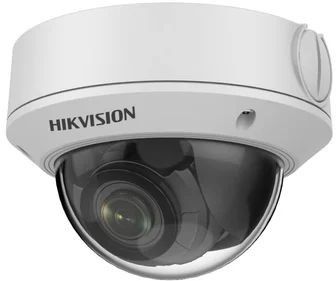

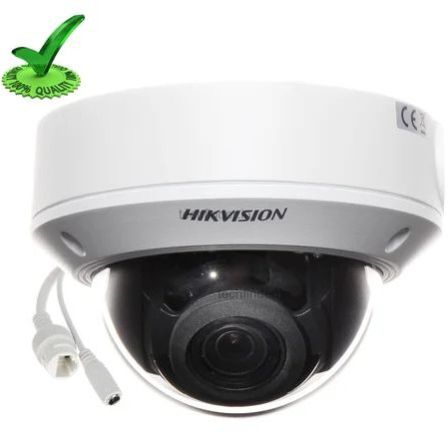

Short description :

• 1/3" progressive scan CMOS
• 3D DNR (Digital Noise Reduction)
• 2560 × 1440@20fps
• Up to 30 m IR range
• 2.8 mm to 12 mm manual/motorized (with-Z) vari-focal lens
• PoE (Power over Ethernet)
• IP67
• H.265+, H.265, H.264+, H.264
• Dual stream
• 120 dB WDR (Wide Dynamic Range)

Camera Specification

• Image Sensor : 1/3" progressive scan CMOS
• Min. Illumination : Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
• Shutter Speed : 1/3 s to 1/100, 000 s, support slow shutter
• Slow Shutter : Yes
• Auto-Iris : No
• Day &Night : IR cut filter
• Digital Noise Reduction : 3D DNR
• WDR : 120 dB
• Angle Adjustment : Pan: 0° to 355°, tilt: 0°to 70°, rotation: 0° to 360°

Lens

• Focal Length : 2.8 to 12 mm
• Aperture : F1.6
• Focus : -I: Manual-IZ: Auto
• FOV : Horizontal field of view: 98°to 28°, Vertical field of view: 51°to 16°, Diagonal field of view: 115°to 32°
• Lens Mount : Φ14

IR

• IR Range : Up to 30 m
• Wavelength : 850 nm

Compression Standard

• Video Compression : Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.264+ : Main stream supports
• H.265 Type : Main Profile
• H.265+ : Main stream supports
• Video Bit Rate : 32 Kbps to 8 Mbps
• Smart Feature-set
• Region of Interest : 1 fixed region for main stream and sub-stream


• Max. Resolution : 2560 × 1440
• Main Stream : Max. Frame Rate, 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720), 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-stream : Max. Frame Rate, 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement : BLC, 3D DNR
• Image Setting : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch : Auto, scheduled

Network

• Network Storage : Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS, SMB/CIFS), ANR
• Alarm Trigger : Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function : One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version : 5.5.3
• API : ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View : Up to 6 channels
• User/Host : Up to 32 users, 3 levels: Administrator, Operator and User
• Client : iVMS-4200, Hik-Connect, iVMS-5200
• Web Browser : IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
• Video Output (Without -Z) : 1Vp-p composite output (75 Ω/BNC)
• Reset Button : Yes
• Operating Conditions : -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

General :

• Power Supply : 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
• Power Consumption and Current : -IZ: 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W, -I: 12 VDC, 0.5 A, Max: 6

• Wishlist

 1, 350 1, 430 6% OffSKU : DS2CE1ADOTIRP

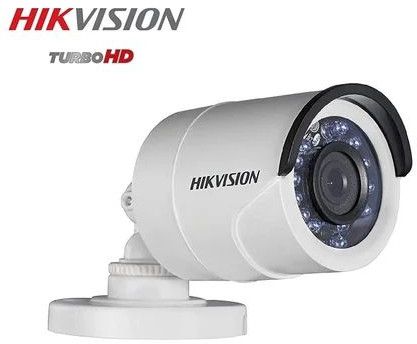

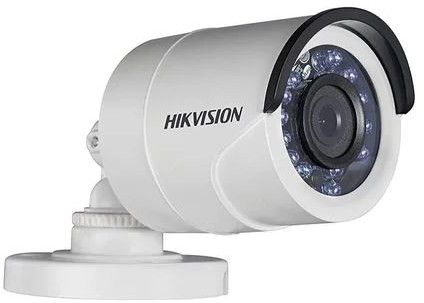

Hikvision DS-2CE1ADOT-IRP Eco 2mp IR Bullet Camera

• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night, Smart IR
• Up to 20m IR distance
• IP66 weatherproof

Hikvision DS-2CE1ADOT-IRP Eco 2mp IR Bullet Camera

Camera

• Image Sensor : 2MP CMOS Image Sensor
• Signal System : PAL/NTSC
• Effective Pixels : 1920(H)*1080(V)
• Min. illumination : 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time : 1/25(1/30)s to 1/50, 000s
• Lens: 2.8mm, 3.6mm, optional
• Angle of View : 92°(2.8 mm), 70.9°(3.6 mm)
• Lens Mount : M12
• Day & Night : ICR
• Angle Adjustment : Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
• Synchronization : Internal synchronization
• Video Frame Rate : 1080p@25fps/1080p@30fps
• HD Video Output : 1 Analog HD output
• S/N Ratio : 62dB

Short Description :

• Max. 2560 × 1440 @25fps
• 4 mm/6 mm fixed lens
• H.265+, H.264+
• 120dB WDR
• 0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @F1.2 (1/30 s, AGC ON), 0 Lux with LED on
• 12 VDC & PoE (802.3af, class 3)
• Built-in micro SD/SDHC/SDXC slot, up to 128G
• IP67
• BLC/3D DNR/HLC/Defog
• 24-hour colorful video

Camera Specification

• Image Sensor : 1/1.8" Progressive Scan CMOS
• Min. Illumination : 0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on
• Shutter Speed : 1/3 s to 1/100, 000 s
• Slow Shutter : Yes
• Focal length : 4/6 mm
• Focus : Fixed
• Aperture : F1.0
• FOV : 4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 107.5°, 6 mm, horizontal FOV: 54°, vertical FOV: 29°, diagonal FOV: 63°
• Lens Mount : M16
• Auto-Iris : No
• DNR : 3D DNR
• Wide Dynamic Range : 120dB
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°

Compression Standard

• Video Compression : Main stream: H.265/H.264
• Sub stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.264+ : Main stream supports
• H.265 Type : Main Profile
• H.265+ : Main stream supports
• Video Bit Rate : 32 Kbps to 8 Mbps


• Max. Resolution : 2560 × 1440
• Main Stream : 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720), 60Hz: 24fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third stream : 50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240), 60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)
• Image Enhancement : BLC/3D DNR/HLC/Defog
• Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• ROI (Region of Interest) : No

Network

• Network Storage : Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR
• Alarm Trigger : Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function : One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

General

• Operating Conditions : -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
• Power Consumption : 12 VDC, 0.5 A, max: 6 W, PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max: 7.5 W
• Visible Light Range : Warm white LEDs (3000K), up to 30m
• Protection Level : IP67
• Accessory : The wall mount is included in the package, and the wall mount model is DS-1292ZJ
• Material : Front cover: metal, back cover: metal
• Dimensions : Camera: 114 × 110 × 220 mm (4.5″ × 4.3″ × 8.7″)
• Weight : Camera: 920 g (2 lb.)

Hikvision DS-7A16HGHI-F1 Eco Model 16ch Turbo HD Dvr

Video Input and Transmission

• Connectable to Turbo HD/HDCVI/AHD/CVBS signal input.
• Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal

Compression and Recording

• One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs.
• Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p

Video Output

• Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution

Storage and Playback

• One SATA interface (up to 6 TB capacity per HDD).
• 4/8/16-ch synchronous playback.
• Smart search for efficient playback

Smart Function

• VQD (Video Quality Diagnostics).
• Unlock pattern for device login for the admin and clear-text password available.
• GUID file can be exported for password resetting and imported for finding the forgotten password.
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management.
• One self-adaptive 10/100 Mbps network interface.
• Output bandwidth limit configurable

Video/Audio input

• Video compression : H.264+/H.264
• Analog video input : 4-ch 8-ch 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Turbo HD input : 1080p25, 1080p30, 720p25, 720p30
• AHD input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI input : 1080p25, 1080p30, 720p25, 720p30
• CVBS input : Support
• IP video input : 1-ch(up to 5-ch), 2-ch(up to 10-ch), 2-ch(up to 18-ch), Up to 1.3MP resolution
• Audio compression : G.711u
• Audio input/Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• HDMI/VGA output  : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding resolution : When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF, When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
• Frame rate : Main stream:When 1080p lite mode enabled:1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N), When 1080p lite mode not enabled:For 720p stream access:720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N), For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), Sub-stream:CIF/QVGA/QCIF@25fps (P)/30fps (N)
• Video bit rate : 32 Kbps to 4 Mbps
• Audio output : 1-ch, RCA (Linear, 1 KΩ)
• Audio bit rate : 64 Kbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Synchronous playback : 4-ch 8-ch 16-ch

Network management

• Remote connections : 32 128
• Network protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, , UPnP™, HTTPS

Hard disk

• SATA : 1 SATA interface
• Capacity : Up to 6 TB capacity for each disk

External interface

• Network interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
• USB interface : Rear panel: 2 × USB 2.0

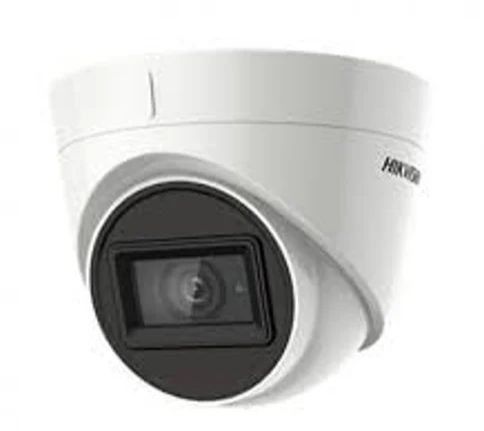

Hikvision DS-2CE5ADOT-IRP Eco 2MP IR Dome Camera

• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night, Smart IR
• Up to 20m IR distance

Hikvision DS-2CE5ADOT-IRP Eco 2MP IR Dome Camera

Camera

• Image Sensor : 2MP CMOS Image Sensor
• Signal System : PAL/NTSC
• Effective Pixels : 1920(H)*1080(V)
• Min. illumination : 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time : 1/25(1/30)s to 1/50, 000s
• Lens : 2.8mm, 3.6mm optional
• Angle of View : 92°(2.8 mm), 70.9°(3.6 mm)
• Lens Mount : M12
• Day & Night : ICR
• Angle Adjustment : Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
• Synchronization : Internal synchronization
• Video Frame Rate : 1080p@25fps/1080p@30fps
• HD Video Output : 1 Analog HD output
• S/N Ratio : 62dB

Short Description :

• 2 MP high performance CMOS
• 1920 × 1080 resolution
• Full time color
• 3.6 mm, 6 mm fixed lens
• Up to 20 m white light distance
• OSD menu, 3D DNR, true WDR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (HIKVISION-C)

Camera Specification

• Image Sensor : 2 MP CMOS image sensor
• Resolution : 1920 (H) × 1080 (V)
• Frame Rate : PAL: 1080p@25fps, NTSC: 1080p@30fps
• Min. illumination : Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time : PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
• Slow Shutter : Max. 16x
• Lens : 3.6 mm, 6 mm fixed lens
• Horizontal Field of View : 83.6° (3.6 mm), 52.8° (6 mm)
• Lens Mount : M16
• Day & Night : Color
• Angle Adjustment : Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
• Synchronization : Internal synchronization
• WDR (Wide Dynamic Range) : 130 dB

Menu

• AGC : Yes
• White Balance : Auto/Manual
• HLC : Yes
• BLC (Backlight Compensation) : Yes
• Privacy Mask : 4 programmable privacy masks
• Motion Detection : 4 programmable areas
• WDR : Yes
• Functions : Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

• Video Output : 1 HD analog output
• Switch Button : TVI/AHD/CVI/CVBS

General

• Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply : 12 VDC ±25%
• Power Consumption : Max. 3 W
• Protection Level : IP67
• Material : Metal
• White Light : Up to 20 m
• Communication : Up the coax, Protocol: HIKVISION-C (TVI output)
• Dimensions : 181.4 mm × 70 mm × 68 mm (7.14" × 2.75" × 2.68")
• Weight : Approx. 390 g (0.86 lb.)
