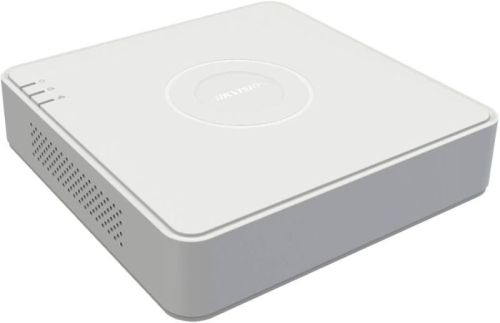

    DS-7A04HQHI-K1 Hikvision Digital Video Recorder

    ₹ 4,000 / Piece
    Get Latest Price
    • MOQ10 Piece
    • Brand NameHikvision
    • Power SourceElectric
    • ApplicationVideo Recording
    • Country of OriginIndia
    • Supply TypeExporter, Supplier, Trader
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 1 Year
    • building Nature of Business Supplier
    • gst icon GST No. 03PZLPS1978E1ZP

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • ApplicationVideo Recording
    • Country of OriginIndia
    • Video QualityFull Hd
    • Availability1 Kg
    • Brand NameHikvision
    • Power SourceElectric
    • AHD input5 MP
    • Dimensions200 x 200 x 45 mm (W x D x H)
    • Audio Input1-ch
    • Model Name/NumberDS-7A04HQHI-K1
    • Stream TypeVideo And Audio
    • Resolution1080p
    • Network ProtocolsTCP/IP
    • Number of Channels4
    • HDCVI input1080p25

    Short Description :

    • Connector Type    Wired
    • Item Dimensions LxWxH 20x20x4.5Centimeters
    • Brand HIKVISION
    • Memory Storage Capacity    6 TB
    • Wattage    12 Watts


    Features and Functions

    • Video Input and Transmission
    • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
    • Up to 2-ch 4 MP IP cameras input
    • Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

    Compression and Recording

    • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
    • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
    • H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
    • Up to 3 MP resolution for recording of channel 1 of DS-7A04HQHI-K1, channel 1/2 of DS-7A08HQHI-K1, and channel 1/2/3/4 of DS-7A16HQHI-K1
    • Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
    • Video Output
    • Simultaneous HDMI/VGA output

    Storage and Playback

    • One SATA interface (up to 6 TB capacity per HDD)
    • 4/8/16-ch synchronous playback
    • Smart search for efficient playback
    • Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

    Smart Function

    • VQD (Video Quality Diagnostics)
    • Supports PTZ control via Omnicast VMS of Genetec protocol

    Network & Ethernet Access

    • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
    • One RJ45 10M/100M Ethernet network interface
    • Output bandwidth limit configurable


    Specifications

    Model : DS-7A16HQHI-K1

    • Video/Audio input
    • Video compression : H.265+/H.265/H.264+/H.264
    • Analog video input : 4-ch , BNC interface (1.0 Vp-p, 75 Q), supporting coaxitron connection
    • HDTVI input : 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 mP signal input is only available for channel 1 of DS-7A04HQHI-K1, channel 1/2 of DS-7A08HQHI-K1, and channel 1/2/3/4 of DS-7A16HQHI-K1.
    • AHD input : 1080p25, 1080p30, 720p25, 720p30
    • HDCVI input : 1080p25, 1080p30, 720p25, 720p30
    • CVBS input : Support
    • IP video input : 1-ch, Up to 4 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
    • Audio compression : G.711u
    • Audio input/Two-way audio input    : 1-ch, RCA (2.0 Vp-p, 1 KQ)
    • Video/Audio output

    HDMI/VGA output    : 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
    Encoding resolution : When 1080p Lite mode not enabled: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
    Frame rate : Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
    Video bit rate : 32 Kbps to 6 Mbps
