Our Products
Our product range contains a wide range of Bench Type Pillar Drilling Machine 25mm (KR PANCHAL), Bench Drilling Machine 20mm(19KFR) Heavy, Bench Drilling Machine 13mm(13SSR), Bench Drilling Machine 20mm 15inch Center Drill (Heavy Duty) and Pillar Type KR Panchal Drilling Machine 25mm (25LKPR)
We are offering 25mm (new) heavy duty pillar drilling machines (with fine feed) (25lkpr) technical specifications & general dimensions model no. 25lkpr (new) drilling capacity in steel 25 m.m. Number of spindle speed 8 range of spindle speed 115 - 2820r.p.m morse taper in spindle nose mt 3 distance between spindle centre to column face 240 m.m quill movement spindle travel 150 m.m. Working surface of the table 395 m.m. (round table) dimension of base plate 540 x 310 m.m. Working surface of base plate 365 x 255 m.m. Maximum distance between spindle nose to base plate 1040 m.m. Maximum distance between spindle nose to working table 655 m.m. Diameter of column 87 m.m. Height of column 255 m.m. Power required 1 h.p. Motor speed 1440 rpm nett weight of machine (app.) 135 kg belt size a 48 standard accessories motor pulley, drill drift. Extra accessories drill chuck with key, arbour, rf switch, v- belt, electric motor. specification may be changed without prior notice in case of the design modification.
Additional Information:
Payment Terms :
Packaging Details : STANDARD : GOONY PLASTIC BAG SCRATCH ROLL PACKING
EXTRA : WOODEN CASE PACKING
Additional Information:
Payment Terms :
We are offering 20mm heavy duty pillar drilling machine (20378KCR) technical specifications & general dimensions:- model no. 20378kcr drilling capacity in steel 19 drilling capacity in c.i. 22 tapping capacity in steel 14 spindle travel 130 spindle taper mt 2 no. Of spindle speed 86 3360 range of spindle speed 8 column diameter 87 m.m maximum distance between spindle center to column face 378 m.m maximum distance between spindle nose to working table 585 maximum distance between spindle nose to base plate 980 size of square table 395 x 395 size of base plate 435 x 265 electric motor 1 h.p 1440 r.p.m v-belt size a-58 net weight of machine 280 k.g overall dimensions of machine 1600 x 850 x 500 standard accessories motor pulley, drill drift. Extra accessories drill chuck & arbour, rf switch, v- belt, electric motor. Specifiaction may be changed without prior notice in case of the desgin modification.
Additional Information:
Payment Terms :
Packaging Details : PLASTIC BAG & SCRATCH ROLL PACKING
OR
WOODEN CASE PACKING
Model no. 25lkpr (with fine feed)
drilling capacity in m.s 25 mm
drilling capacity in c.i 30 mm
tapping capacity in steel 14 mm
spindle travel 150 mm
spindle taper mt-3
no. Of spindle speeds 8
range of spindle speeds 115 - 2820 rpm
column diameter (pillar) 87 mm
column height (pillar) 1375 mm max.
Dist. Centre to column face 240 mm
max. Dist. Spindle nose to working table 655 mm
max. Dist. Spindle nose to base plate 1040 mm
working table size (square) 330 x 325 mm
base plate size 540 x 310 mm
electric motor 1hp 3phase 1440rpm
v-belt size a-48
net weight of machine 165 kg
standard accessories : motor pulley, drill drift key
extra accessories : drill chuck with key, arbour, v - belt, electric motor, rf switch
specification may be changed without prior notice in case of design modification
Additional Information:
Payment Terms :
Packaging Details : - Plastic Bag & Scratch Roll
- Wooden Case Packing Charge Extra
Delivery Time : AS PER CUSTOMER
model no. 25kfr
max. 25mm drill cap., mt 3 bore, s.g material helical geared system, 4feet height, 73.80mm column dia, 9"inch (225mm) distance center, square table, m.s fabric full safety cover, rack & pinion attachment, with motor driven pulley & drill chuck remove key.
and extra accessories details :
1. electric motor 1.0hp / 3phase or 1phase / 1440rpm
2. drill chuck with key 1/2"
3. drill arbour mt 3 x 1/2"
4. v-belt a-45
5. switch
Additional Information:
Payment Terms :
Packaging Details : PLASTIC GOONY BAG & SCRATCH ROLL
Delivery Time : AS PER QUANTITY
we are offering pillar drilling machine (13mm) item code: 13lssr we offer pillar type bench drilling machine (13 mm) capacity drilling are extensively used in different industries. manufactured from highest grade of materials, these drilling machine 13mm are designed to deliver long lasting performance. model no. 13lssr drilling capacity in steel : 13 mm spindle travel : 80 mm spindle taper : solid no. of spindle speeds : 4 range of spindle speeds : 500 - 2825 rpm column diameter (pillar) : 46.80 mm column height (pillar) : 675 mm max. dist. spindle center to column face : 155 mm max. dist. spindle nose to working table : 315 mm max. dist. spindle nose to base plate : 530 mm working table size (square) : 210 x 210 mm base plate size : 220 x 360 mm electric motor : 0.5hp3phase1440rpm v-belt size : 2350 overall dimension of machine : 780 x 300 x 390 net weight of machine : 51 kg. notes: - this offer price is drill machine with standard accessories only. other extra & optional accessories charges extra. (as per required client) all related expenses are extra. specification may be changed without prior notice in case of design modification any more details this products without any hesitate call or email us.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union, ,
Packaging Details : in India - Goony & Plastic Packing, Out of County - Wooden case Box Packing
We are offering pillar drilling machine (20mm) item code: 20kfr we offer pillar type bench drilling machine (20 mm) capacity drilling are extensively used in different industries. Manufactured from highest grade of materials, these drilling machine 20mm are designed to deliver long lasting performance. overall dimension of machine : 800 x 450 x 1300 (l x w x h) notes: - this offer price is drill machine with standard accessories only. Other extra & optional accessories charges extra. (as per required client) all related expenses are extra.specification may be changed without prior notice in case of design modification any more details these products without any hesitate call or email us.
Additional Information:
Payment Terms :
Packaging Details : WOODEN CASE BOX PACKING, GOONY PACKING WITH SCRATCH PACKING

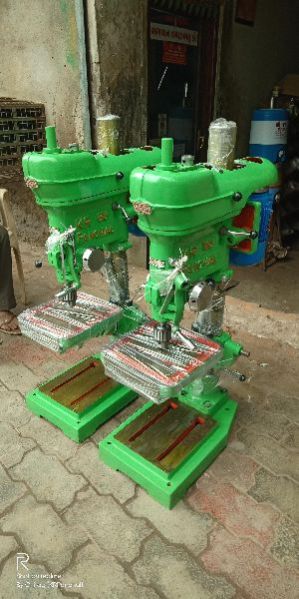

brand name : k.r panchal (estd. 1969) mfrs. by : - k.r.panchal
model no : 20kb(3'ft)
description :
20mm cap. bench type pillar drilling machine with rack & pinion attachment, square table, with standard accessories.
drilling capacity in steel: 20 mm
drilling capacity in c. i:22 mm
tapping capacity in steel:12 mm
spindle travel:130 mm
spindle taper:mt-2
spindle speeds no.:8
spindle speeds range (rpm):86-3360
maximum distance centre to pillar face:200 mm
maximum distance spindle nose to working table:405 mm
maximum distance spindle nose to baseplate: 635 mm
size of working table (square) : 270 x 270 mm
size of base plate : 480 x 310 mm
size of pillar height : 900 mm
size of pillar diameter : 73.80 mm
size of v belt : a-43
electric motor (power required motor speed) : 1.0hp, 3phase, 1440rpm
dimension of machine (l x w x h) : 32 x 18 x 40
nett weight of machine (approx.) : 115 k.g
standard accessories : 1. driver pulley (aluminium) for electric motor 2. drift key
extra accessories :- 1. drill chuck with key 2. arbour mt-2 3. electric motor 4. vee belt 5. switch
quality
1. outstanding performance with compact design
2. krp indicates the name of quality in drilling machine
3. main body (head) is boring on imported boring machine.
4. main spindle approx run out is check for accuracy as per is 2199
5. all moving parts are fine finished with grinding & polishing
6. easy to operate and maintenance free
7. handles fitted with sturdy knobs.
8. electricals are built & easily accessible to operator
9. base is provided with four holes foundation
10. color : special green & orange
notes : this offer price with standard accessories only.
Additional Information:
Payment Terms :
Packaging Details : JUNGLE WOOD BOX PACKING OUT OF INDIA
LOCAL : PLASTIC BAG & SCRATCH ROLL PACKING
OUT OF STATE : PLASTIC GOONY BAG
Delivery Time : AS PER OUR ORDER
