Testing Equipment

We offer the best product range of Insulation Testers, RCD Testers - MODEL 5406A, Earth Testers - MODEL 4105A and Digital Current Data Logger.

Insulation Testers

₹ 34,256 / Piece Get Latest Price

Min. Order (MOQ) 2 Piece
Power Source R6 (AA) (1.5V) X 8
Model Name KEW3005A
Brand Name Kyoritsu
AC voltage range 0 - 600V AC
IP Rating IEC 60529-IP54
1mA DC min. 1.5 mA DC approx.
Test Voltage 250V/500V/1000V
Weight 970g approx
Display Digital
Dimension 167(L) x 185(W) x 89(D)mm
20M/200M/2000M Rated test voltage+20%, -0%

• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

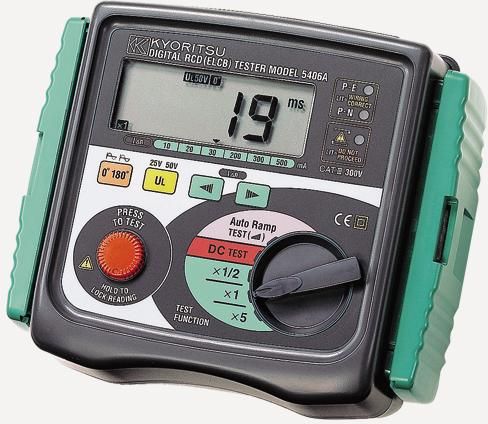

RCD Testers - MODEL 5406A

Min. Order (MOQ) 1 Piece(s)
Rated Tripping Current 10/20/30/200/300/500mA
Fault Condition Settings × 1/2, × 1, × 5, × DC, AUTO RAMP
Trip Current Duration 1000ms, 200ms (×5)
Lowest Resolution 1ms
Trip Time Accuracy ±0.6%rdg±4dgt
Operating Voltage 230V+10%-15% (195V – 253V) 50Hz
Withstand Voltage 3700V AC for 1 minute
IP Rating IEC 60529-IP54
Dimensions 167(L) × 186(W) × 89(D)mm
Weight 800g approx.
Accessories Molded plug test leads, Pouch for test leads, 9121 (Shoulder Strap), Instruction Manual
Optional 7121B (Simplified measurement probe)

kyoritsu rcd tester
custom microprocessor controlled for highest accuracy and reliability.3 leds for checking correct wiring status.0 and 180 degree phase angle switch permits quick tests and consistent readings.digital read-out of tripping time.constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings.large custom digital display readout.visual indication of reversed phase and neutral wiring at socket.designed to ip54 rating.complies with iec 61557test of a large kind of rcd's: standard, selective, ac and a (dc sensitive breakers)

RCD Testers - MODEL 5406A

Rated Tripping Current	10/20/30/200/300/500mA
Fault Condition Settings	× 1/2, × 1, × 5, × DC, AUTO RAMP
Trip Current Duration	1000ms, 200ms (×5)
Lowest Resolution	1ms
Trip Time Accuracy	±0.6%rdg±4dgt
Operating Voltage	230V+10%-15% (195V – 253V) 50Hz
Safety Standard	IEC 61557-1,-6 IEC 61010-1 CAT III 300V IEC 61010-2-031 Pollution Degree 2
Withstand Voltage	3700V AC for 1 minute
IP Rating	IEC 60529-IP54
Dimensions	167(L) × 186(W) × 89(D)mm
Weight	800g approx.
Accessories	Molded plug test leads Pouch for test leads 9121 (Shoulder Strap) Instruction Manual
Optional	7121B (Simplified measurement probe)

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Earth Testers - MODEL 4105A

Brand Name Kyoritsu
Application Industrial
Operating Temperature 2000
Power R6 (AA) (1.5V) x 6
Applicable standards IEC 60529 IP54
Dimensions 105(L) × 158(W) × 70(D)mm
Weight 550g approx.
Overload protection Earth Resistance: 280V AC for 10 seconds across 2 of the 3 terminal, Earth Voltage: 300V AC for 1 mi

Dust and drip proof.(designed to IEC 60529 IP54)
In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories.
(unit can be hung from the neck for simplified measurement)
Designed to meet IEC 61010-1 safety standard.
Capable of measuring earth voltage.
Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
Small and lightweight. Shock resistant new case material.

2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

Measurement ranges Accuracy Overload protection Applicable standards Safety Standard Power source Dimensions Weight Included Accessories Optional Accessories

Earth Resistance: 0 - 20/0 - 200/0 - 2000Earth Voltage [50, 60Hz]: 0 - 200V AC

Earth Resistance: 2%rdg0.1 (20range)2%rdg3dgt (200/2000range)Earth Voltage: 1%rdg4dgt

Earth Resistance: 280V AC for 10 secondsacross 2 of the 3 terminalsEarth Voltage: 300V AC for 1 minute

IEC 60529 IP54

IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557

R6 (AA) (1.5V) 6

105(L) 158(W) 70(D)mm

550g approx.

7095A (Earth resistance test leads) 1set(red-20m, yellow-10m, green-5m)8032 (Auxiliary earth spikes) 1set7127A (Simplified measurement probe) 1setR6 (AA) 69121 (Shoulder strap)Instruction ManualCarrying case : 9084(Carrying case[Soft]:4105A only): 9165(Carrying case[Hard]:4105A-H only)

7100A (Precision measurement cord set)

Earth Testers MODEL 4105A

Measurement ranges	Earth Resistance: 0 – 20Ω/0 – 200Ω/0 – 2000Ω Earth Voltage [50,60Hz]: 0 – 200V AC
Accuracy	Earth Resistance: ±2%rdg±0.1Ω (20Ωrange) ±2%rdg±3dgt (200Ω/2000Ωrange) Earth Voltage: ±1%rdg±4dgt
Overload protection	Earth Resistance: 280V AC for 10 seconds across 2 of the 3 terminals Earth Voltage: 300V AC for 1 minute
Applicable standards	IEC 60529 IP54
Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557
Power source	R6 (AA) (1.5V) × 6
Dimensions	105(L) × 158(W) × 70(D)mm
Weight	550g approx.
Included Accessories	7095A (Earth resistance test leads) × 1set (red-20m, yellow-10m, green-5m) 8032 (Auxiliary earth spikes) × 1set 7127A (Simplified measurement probe) × 1set R6 (AA) × 6 9121 (Shoulder strap) Instruction Manual Carrying case : 9084(Carrying case[Soft]:4105A only) : 9165(Carrying case[Hard]:4105A-H only)
Optional Accessories	7100A (Precision measurement cord set)

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Digital Current Data Logger

Total Carbohydrate 1 Year
Availability Approx. 265g
Type of Data Logger Digital Data Logger
Brand Kyoritsu
Model KEW 5010
No. of Channels Three Channel
Dimensions 111(L)x60(W)x42(D)mm
Display Digital
Recording mode Normal, Trigger, Capture
Operating system Successive Approximation (CH1 single synchronized sampling)
Rated max. working voltage AC 9.9Vrms, 14V peak value
Number of input channel 3ch
Measuring method True RMS
RMS measuring interval approx. 100ms
Sampling interval Normal/Trigger mode : approx. 1.65ms/CH Capture mode : approx. 0.55ms (waveform: at every 1.1ms)
Low battery warning Battery mark display (in 4 levels)
Over-range indication "OL" mark is displayed when exceeding the measuring range
Auto power off Power-off function operates automatically after a switch remains for 3min. (when recording is stopped)
Possible measurement time Approx. 10 days (with alkaline LR6 batteries)
Applicable standards IEC 61010-1:2001 III 300V Pollution degree2 IEC 61326 (EMC standard)
Dimensions 111(L)×60(W)×42(D)mm
Included Accessories Alkaline battery LR6×4pcs, 9118 (Carrying case) PC software "KEW LOG Soft 2", 7148 (USB cable) Instruction manual, Quick manual, Install manual, USB Notice sheet
Optional Accessories 8146/8147/8148 (Leakage & Load current Clamp Sensor), 8121/8122/8123 (Load current Clamp Sensor), 8129/8130 (Flexible Clamp Sensor), 8320 (AC Adapter), 9135 (Carrying bag), 9119 (Ha
