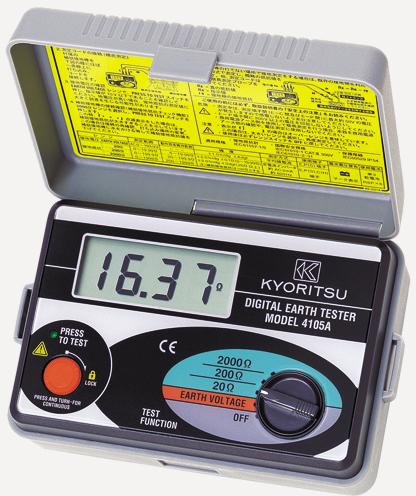

Earth Testers - MODEL 4105A, For Industrial

Get Latest Price

Brand NameKyoritsu
ApplicationIndustrial
Overload protectionEarth Resistance: 280V AC for 10 seconds across 2 of the 3 terminal, Earth Voltage: 300V AC for 1 mi
PowerR6 (AA) (1.5V) x 6
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Kyoritsu KEW India Instruments Pvt. Ltd.

Navrangpura, Ahmedabad, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer
GST No. 24AAGCK1062M1ZJ

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameKyoritsu
ApplicationIndustrial
Dimensions105(L) × 158(W) × 70(D)mm
Overload protectionEarth Resistance: 280V AC for 10 seconds across 2 of the 3 terminal, Earth Voltage: 300V AC for 1 mi
Operating Temperature2000
PowerR6 (AA) (1.5V) x 6
Weight550g approx.
Applicable standardsIEC 60529 IP54

Dust and drip proof.(designed to IEC 60529 IP54)
In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories.
(unit can be hung from the neck for simplified measurement)
Designed to meet IEC 61010-1 safety standard.
Capable of measuring earth voltage.
Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
Small and lightweight. Shock resistant new case material.

2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
Measurement ranges Accuracy Overload protection Applicable standards Safety Standard Power source Dimensions Weight Included Accessories Optional Accessories

Earth Resistance: 0 - 20Ω/0 - 200Ω/0 - 2000Ω
Earth Voltage [50,60Hz]: 0 - 200V AC

Earth Resistance: ±2%rdg±0.1Ω (20Ωrange)
±2%rdg±3dgt (200Ω/2000Ωrange)
Earth Voltage: ±1%rdg±4dgt

Earth Resistance: 280V AC for 10 seconds
across 2 of the 3 terminals
Earth Voltage: 300V AC for 1 minute

IEC 60529 IP54

IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557

R6 (AA) (1.5V) × 6

105(L) × 158(W) × 70(D)mm

550g approx.

7095A (Earth resistance test leads) × 1set
(red-20m, yellow-10m, green-5m)
8032 (Auxiliary earth spikes) × 1set
7127A (Simplified measurement probe) × 1set
R6 (AA) × 6
9121 (Shoulder strap)
Instruction Manual
Carrying case : 9084(Carrying case[Soft]:4105A only)
: 9165(Carrying case[Hard]:4105A-H only)

7100A (Precision measurement cord set)

Earth Testers MODEL 4105A

Measurement ranges	Earth Resistance: 0 – 20Ω/0 – 200Ω/0 – 2000Ω Earth Voltage [50,60Hz]: 0 – 200V AC
Accuracy	Earth Resistance: ±2%rdg±0.1Ω (20Ωrange) ±2%rdg±3dgt (200Ω/2000Ωrange) Earth Voltage: ±1%rdg±4dgt
Overload protection	Earth Resistance: 280V AC for 10 seconds across 2 of the 3 terminals Earth Voltage: 300V AC for 1 minute
Applicable standards	IEC 60529 IP54
Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557
Power source	R6 (AA) (1.5V) × 6
Dimensions	105(L) × 158(W) × 70(D)mm
Weight	550g approx.
Included Accessories	7095A (Earth resistance test leads) × 1set (red-20m, yellow-10m, green-5m) 8032 (Auxiliary earth spikes) × 1set 7127A (Simplified measurement probe) × 1set R6 (AA) × 6 9121 (Shoulder strap) Instruction Manual Carrying case : 9084(Carrying case[Soft]:4105A only) : 9165(Carrying case[Hard]:4105A-H only)
Optional Accessories	7100A (Precision measurement cord set)
