L & M Automatics

• Driven TypeElectric
• ApplicationIndustrial

• ApplicationIndustrial Use

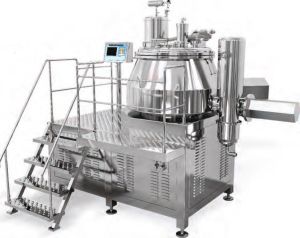

The Rapid Mixer Granulator was developed in close co-operation with pharmaceuticals and chemical industries. With the RMG wet shifting is generally no longer necessary. After the mixing of the dry components, subsequent wet granulation occurs (without transfer of dry mixture) producing loose granules in RMG. RMG is designed to meet the GMP requirements of the pharmaceutical industries. All contact parts in S.S. 304 or S.S. 316.

(30 Kg. with Specially Designed Filter Bag ) The basic concept of the Fluid Bed System begins with a simple Drying unit to which several different optional packages may be added for conversion to a granulation or coater. SPECIAL FEATURES Uniformity in drying and reduction in drying time. Atmospheric inlet air is filtered by means of single / multi stage filters of 20 microns to prevent any fine dust to pass through the product. Steam Coil made out of 1" dia. SS 304/316 finned tube & is designed to get pressure of around 3-4kg./cm^2 (working pressure 3 kg/cm^2). ADVANTAGES The conventional drying method for drying products in tray dryers is rather inadequate & troublesome. They also occupy large space & have very high & uneven drying times and also involved high labor input. To overcome this problem RIDDHI made Fluid Bed Dryer which is the simple sol

• ApplicationIndustrial

L&M Multi Mill is a self contained portable unit useful for high speed GRANULATING, PULVERISING, MIXING, SHREDDING & CHOPPING etc of a wide range of wet and dry materials. We used the S.S. Blades in the multi mill which is useful for breaking the material in granule form. Flow path of material in vertical rotor machine is streamlined. During material entering the chamber travels to the periphery of chamber and passes through the screen tangentially and radially avoiding chocking and temperature rise. APPLICATIONS Chemicals, Pharmaceuticals, Colour Ceramics, Food Products, Cosmetics, Pesticides, Fertilizers, Plastics, Bakeries. SPECIAL FEATURES All Contact parts are made of S.S. 304 quality. Machine rotated for continuous operation. High output with uniform output. Blade direction is reversing by switch. Higher screen opening for hi

(Size-20’’ & 30”) This is a mechanical shifter. This has gyratory motion therefore, it has many advantages over conventional reciprocating sifter faster & more effective screening. It is very useful when large quantity of material is to be processed through finger screens. NOTE: OUTPUT CAPACITY DEPENDS UPON MATTERIAL & SCREEN SIZE. SPECIAL FEATURES:- Portable & Compact. Lower energy consumption compared to the reciprocating vibratory systems. All contact parts & screens of 304 AISI stainless steel materials. Easy dismantling and cleaning facilities for contact parts. Easy change of wide range of screen size 4-300 mesh.

• L&M 82 H.P.
• 3 PHASE600 TABLET
