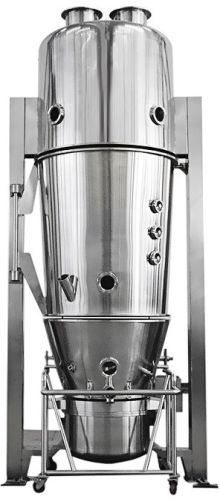

Fluid Bed Drier Machine

Supply TypeManufacturer, Exporter, Distributor, Trader
Preferred Buyer Location All over the world

(30 Kg. with Specially Designed Filter Bag ) The basic concept of the Fluid Bed System begins with a simple Drying unit to which several different optional packages may be added for conversion to a....

View More Details

Send Enquiry

Company Information

L & M AUTOMATICS

Panki, Kanpur, Uttar Pradesh

View Number

Member Since 3 Years
Nature of Business Manufacturer
GST No. 09AAAFL3575D1ZF

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

(30 Kg. with Specially Designed Filter Bag )
The basic concept of the Fluid Bed System begins with a simple Drying unit to which several different optional packages may be added for conversion to a granulation or coater.

SPECIAL FEATURES

Uniformity in drying and reduction in drying time.
Atmospheric inlet air is filtered by means of single / multi stage filters of 20 microns to prevent any fine dust to pass through the product.
Steam Coil made out of 1" dia. SS 304/316 finned tube & is designed to get pressure of around 3-4kg./cm^2 (working pressure 3 kg/cm^2).

ADVANTAGES

The conventional drying method for drying products in tray dryers is rather inadequate & troublesome. They also occupy large space & have very high & uneven drying times and also involved high labor input. To overcome this problem RIDDHI made Fluid Bed Dryer which is the simple sol

Product Informaion

Model	Product Bowl Volume In Ltr	Bacth Capacity In Kg	Heating Capacity In KW	Steam Consumption Kgs/Hr	Drying Temperature In 0 C	Blower Motor (HP)	Electrical
L&M-5	20	5	6	14	50-80	1.5	2800 rpm / 3 Phase / A.C.
L&M-30	100	30	18	25	50-80	5	2800 rpm / 3 Phase / A.C.
L&M-60	220	60	36	50	50-80	10	2800 rpm / 3 Phase / A.C.
L&M-120	440	120	60	100	50-80	15	2800 rpm / 3 Phase / A.C.
L&M-200	780	200	-	160	50-80	20	2800 rpm / 3 Phase / A.C.
L&M-250	960	250	-	200	50-80	25	2800 rpm / 3 Phase / A.C.
