Our Products
Our Complete range of products are Flood Lights, Waterproof LED Flood Light and Football Stadium LED Flood Light.
| GENERAL INFORMATION | |

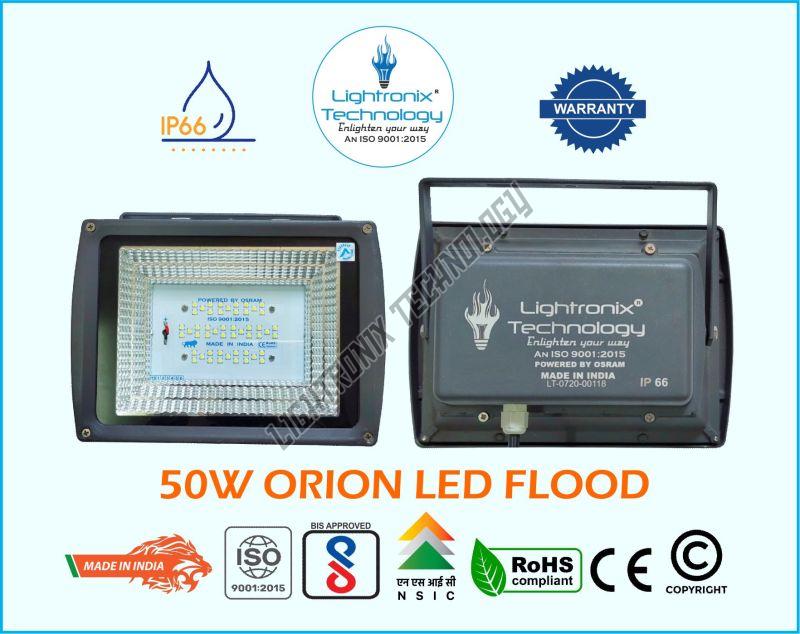

| Order Code | LT-50WFL(ORION MODEL) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 3030 LED |
| Number of LED | 50 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI(Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 7000(5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 50 Watt |
| Power Factor | >0.95 |
| THD | 90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 135X93 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 1.910 Kg |
| Luminaries Size | 182 254 120 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 169x224mm |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A
Packaging Details : 10 PCS BOX
Delivery Time : 1 DAY
GENERAL INFORMATION | |

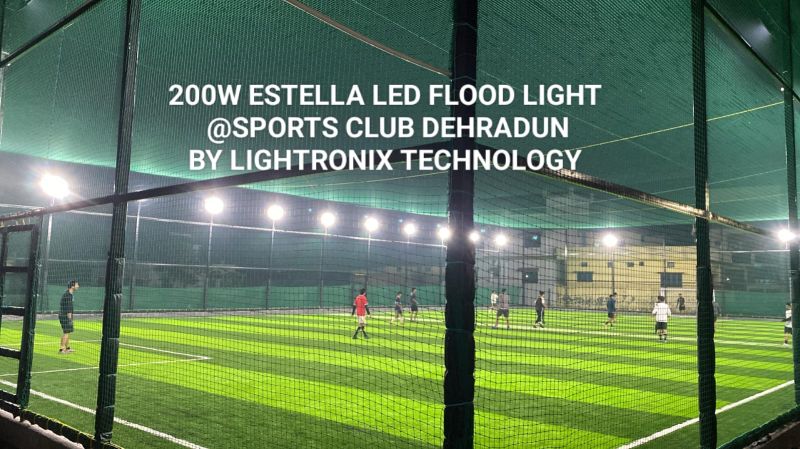

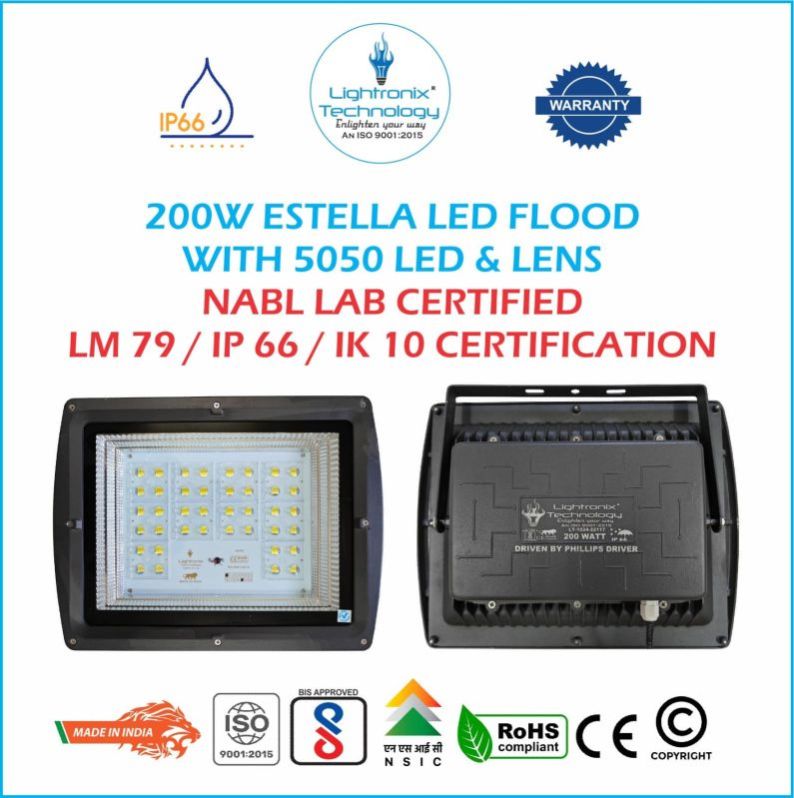

Order Code | LT-200WFL-ESTELLA |
Make | Lightronix Technology |
Country of Origin | INDIA |
Lighting Source & Type | SMD 5050 LED |
Number of LED | 40 |
OPTICAL PARAMETERS | |
Led Beam Angle | 30, 45, 60 or 90 degree Polycarbonate lens |
CRI (Color Rendering Index) | >80 |
LED Life Span | >60000 Hours |
Color | White/Warm White/Cool White (As Per Order) |
Color Temperature | 2700-6500K(As Per Order) |
Led Voltage/Current | 6.2V/750mA |
LED Make | Bridge lux |
Optical Lens | 30, 45, 60 or 90 degree Polycarbonate lens |
Luminous Efficiency | 170 Lm/W |
Total Lumens | 34000(5%) |
Optical Efficiency | >93% |
Thermal Efficiency | >90% |
ELECTRICAL PARAMETERS | |
Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
Operating Frequency | 50/60HZ |
Power Consumption | 200 Watt |
Power Factor | >0.95 |
THD | 90% |
Supply Phase | Single Phase Supply |
Over voltage Protection | 440VAC Protection |
Under voltage Protection | 90VAC |
Auto cutoff Voltage | Lower Side310VAC |
PCB INFORMATION | |
PCB Thickness | 1.6mm(5% Tolerance) |
PCB Material | Pure Aluminum-Copper |
Copper Layer Thickness | Standard 0.35 Micron |
Copper Conductivity | >1 Watt |
PCB Size | 267x200mm |
MECHANICAL PARAMETERS | |
Housing Material | Aluminum Pressure Die Casting |
Housing Color Type | Metal Powder Coated |
Housing Shape | Rectangle |
Total Luminaries Weight | 5.100 Kg |
Luminaries Size | 397 290 135 mm3 |
Mounting Device | Bracket |
Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
Glass Type | 4mm Toughen Glass |
Glass Size | 273x345 mm |
Cable Entry Option | PG7 Cable Gland with Rubber Washer |
Screw Type | Stainless Steel Screw |
Gasket Type | Silicone Rubber Gasket |
IP Rating | IP65/IP66 |
Impact Rating | IK08/IK10 |
Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,
Packaging Details : 6 PCS BOX
Delivery Time : 1 DAYS
| GENERAL INFORMATION | |

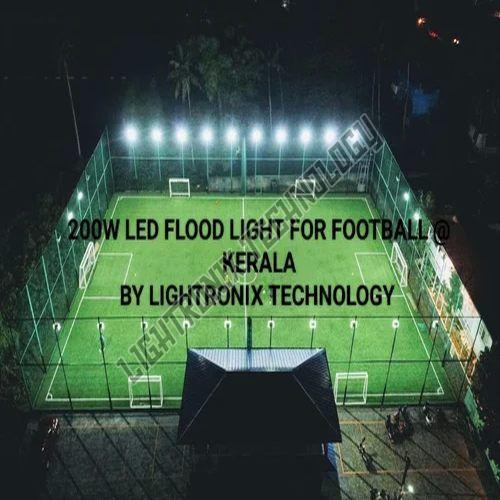

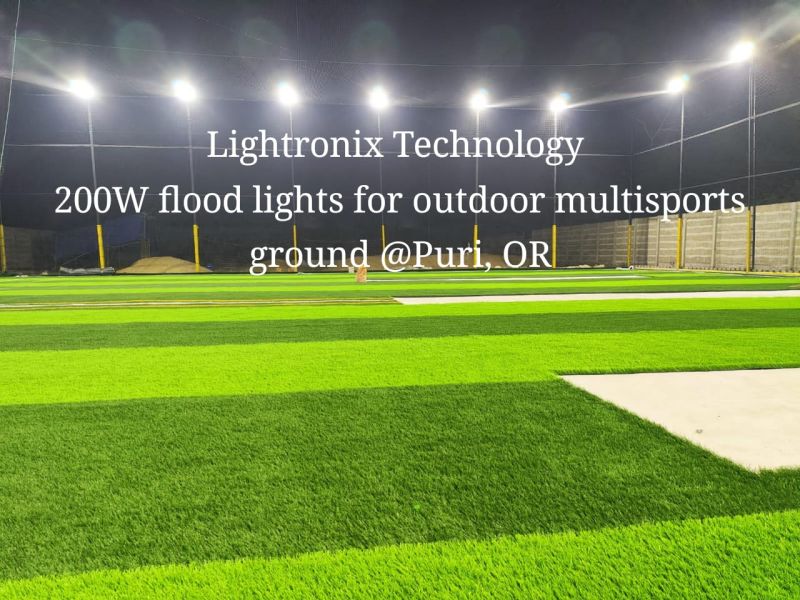

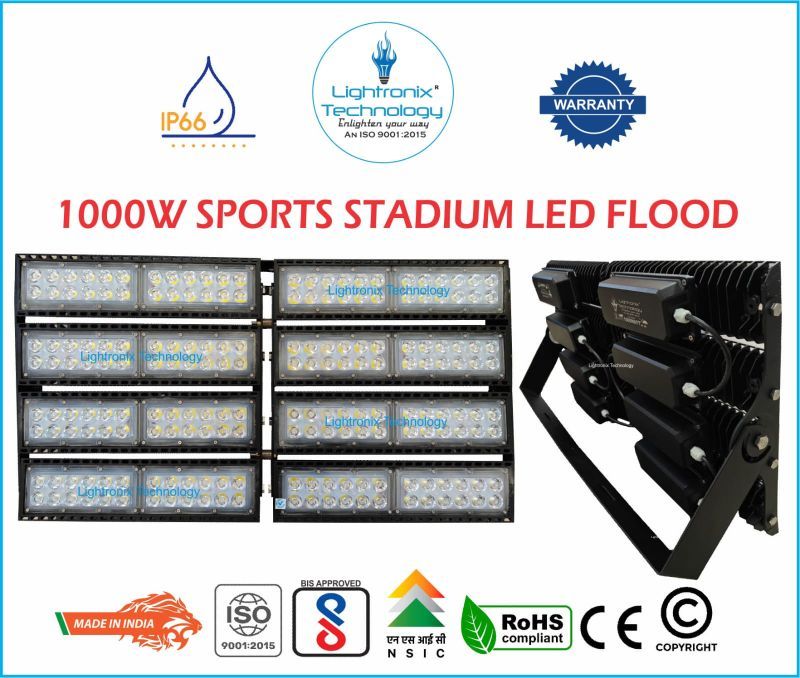

| Order Code | LT-200WFL-SPORTS (200W TO 2000W AVAILABLE) |
| Make | Lightronix Technology |
| Country of Origin | INDIA |
| Lighting Source & Type | SMD 5050 LED |
| Number of LED | 40 |
| OPTICAL PARAMETERS | |
| Led Beam Angle | 15, 30, 45, 60 degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White |
| Color Temperature | 6500K |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Bridge lux |
| Optical Lens | 15, 30, 45, 60 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 34000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| Vertical area Output | >100ft |
| Radius Area Output | 200-300ft |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 108-305VAC |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt (200W TO 2000W AVAILABLE) |
| Power Factor | >0.97 |
| THD | <10% |
| Driver Surge Protection | 6KV line-line, 10KV line-earth |
| External Surge Protection | 10KV (As per Requirement) |
| Control Gear | Constant current LED Driver |
| Operating Temperature | -40 to 75°C |
| Max. Case Temperature | +90°C |
| Working Humidity | 2095% RH non-condensing |
| Driver thermal Protection | Yes |
| Electrical Efficiency | >90% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection (48 Hours) |
| Under voltage Protection | 108VAC |
| Auto cutoff Voltage | Lower Side<90VAC & Higher Side>310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 148x45mm – 04 PCB |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 3.57 Kg |
| Luminaries Size | 390×210 ×100 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | PC Lens cover |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,
Packaging Details : 06 NOS
Delivery Time : 1 DAY
Specifications
| Beam Angle | 60/90/120 Degree |
|---|---|
| Body Material | Aluminum Pressure die cast |
| Lighting Color | Warm white, Cool White , Neutral white |
| CCT | 2700-6500K |
| Led Beam Angle | 30,45,60 or 90 degree Polycarbonate lens |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30,45,60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 34000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt |
| Power Factor | >0.95 |
| THD | <10% |
| Driver Surge Protection | 4-6KV |
| External Surge Protection | 10KV (As per Requirement) |
