Our Products

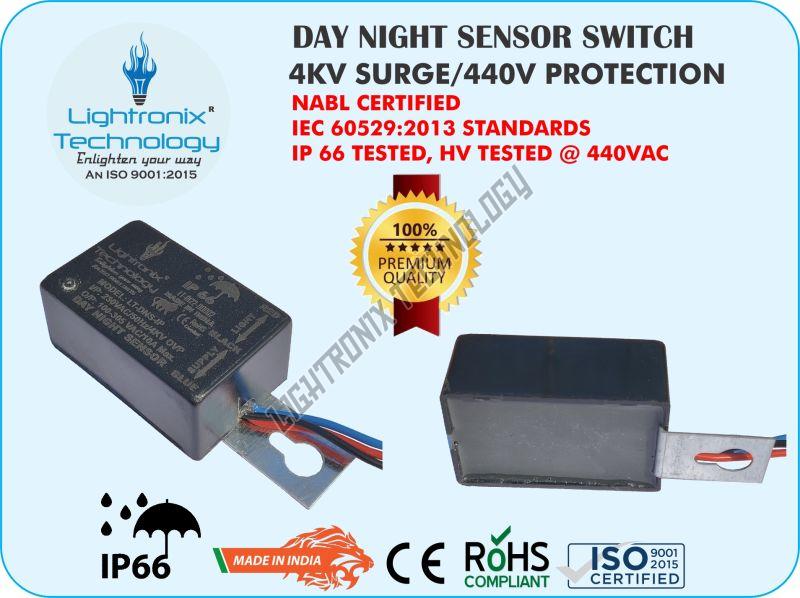

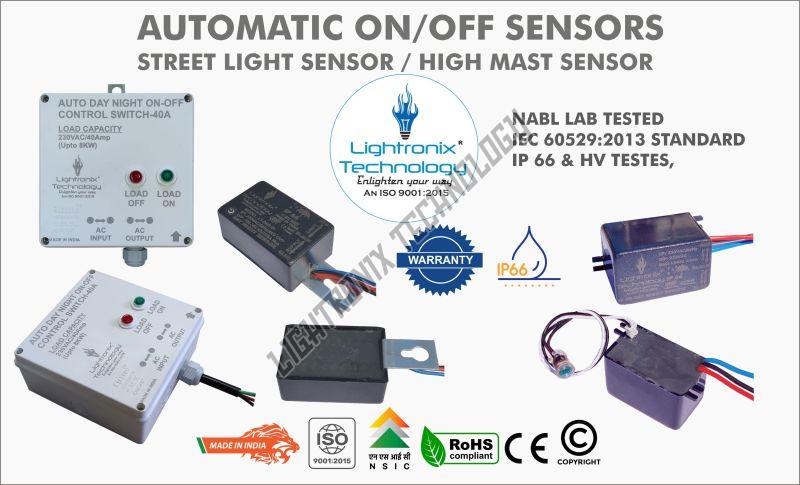

We are leaders in the market for providing best range of IP66 DAY NIGHT SENSOR SWITCH and Street Light Sensor
| Model | LT-DNS-IP (IP66 DAY NIGHT SENSOR) | |
| Certification | IEC 60529:2013 IP66 TEST (NABL CERTIFIED) | |
| Dimension |
| |
| Weight | 90 gm (IP) (±10gm Tolerance) | |
| Input Voltage | 100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC) | |
| Operating Frequency | 50 Hz | |
| External Load capacity | Up to 300 Watt | |
| Output Voltage/Current | 240VAC / 10 A / 16A / 20A (±10% Tolerance) | |
| Off load power consumption | 0.54 W | |
| Surge protection | 4 KV Protection | |
| Ambient Light | 6 lux to 40 lux (± 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX | |
| Availability | With IP66 Potted | |
| Potting Material | Hybrid polymer (Thermal conductivity – 0.7) | |
| Warranty | 1 Year ( Warranty will not cover if sensor is in burn condition) | |
| Additional Features | -With best quality and Original components for automatic circuit. -Single shot ON-OFF operation. -No flickering at load side. -Heavy duty and long life circuit. Fit and Forget module. | |
| Application | -Street light, Security lights, Garden lights, -Industrial lights, Outdoor lights | |
| Function | Automatic switch ON light in NIGHT. Automatic switch OFF light in MORNING. | |
| Terminology | AC Input – BLUE & BLACK Wires Output – RED & BLACK Wires (Connect with Light or Load) (0.5 square mm copper cable – 200mm length) |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 300 NOS BOX
Delivery Time : 1 DAY
| Model | LT-DNS-IP (IP66 DAY NIGHT SENSOR) | |
| Certification | IEC 60529:2013 IP66 TEST (NABL CERTIFIED) | |
| Dimension |
| |
| Weight | 90 gm (IP) (±10gm Tolerance) | |
| Input Voltage | 100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC) | |
| Operating Frequency | 50 Hz | |
| External Load capacity | Up to 300 Watt | |
| Output Voltage/Current | 240VAC / 10 A / 16A / 20A (±10% Tolerance) | |
| Off load power consumption | 0.54 W | |
| Surge protection | 4 KV Protection | |
| Ambient Light | 6 lux to 40 lux (± 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX | |
| Availability | With IP66 Potted | |
| Potting Material | Hybrid polymer (Thermal conductivity – 0.7) | |
| Warranty | 1 Year ( Warranty will not cover if sensor is in burn condition) | |
| Additional Features | -With best quality and Original components for automatic circuit. -Single shot ON-OFF operation. -No flickering at load side. -Heavy duty and long life circuit. Fit and Forget module. | |
| Application | -Street light, Security lights, Garden lights, -Industrial lights, Outdoor lights | |
| Function | Automatic switch ON light in NIGHT. Automatic switch OFF light in MORNING. | |
| Terminology | AC Input – BLUE & BLACK Wires Output – RED & BLACK Wires (Connect with Light or Load) (0.5 square mm copper cable – 200mm length) |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : 300 NOS BOX
Delivery Time : 1 DAY
