Our Products
We are leaders in the market for providing best range of Micro Pulverizer and Impex Pulverizer

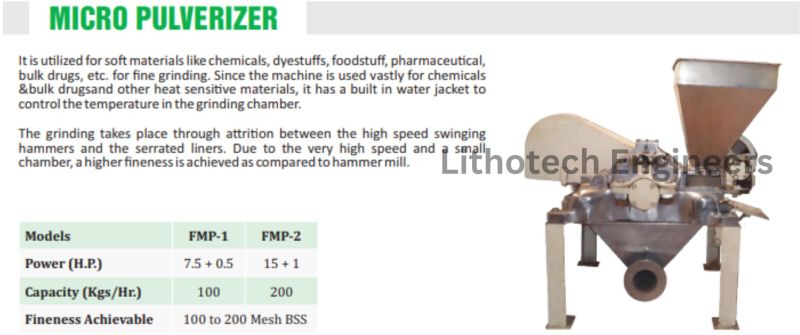

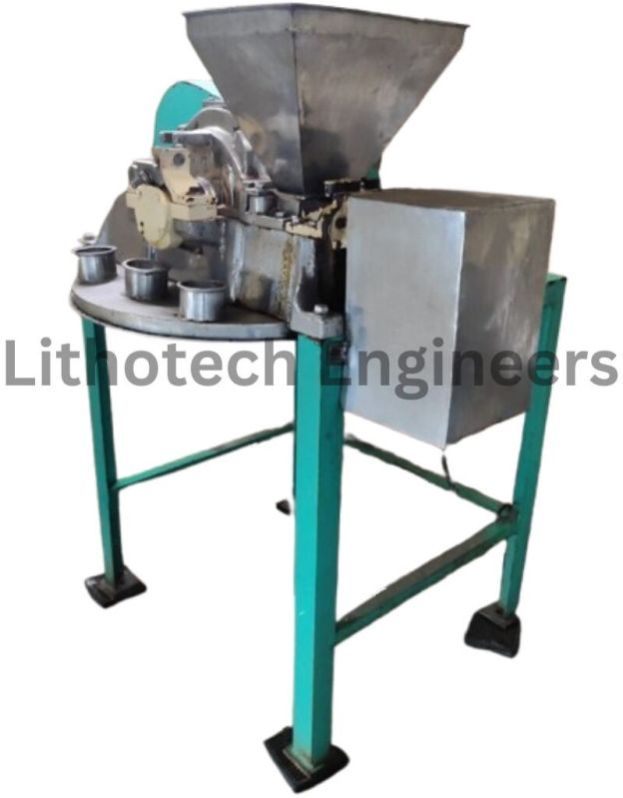

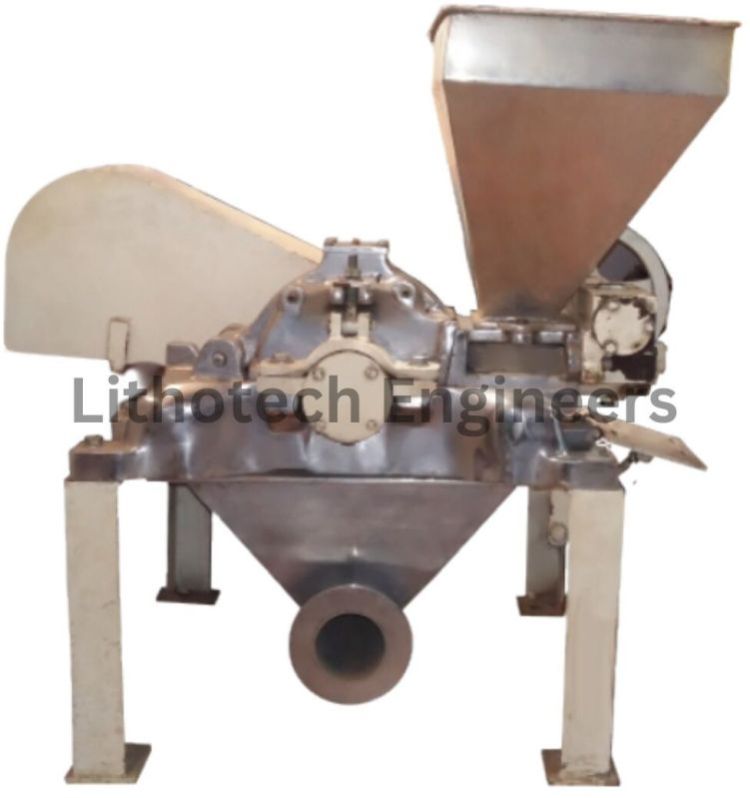

We manufacture and export Micro Pulverization Machine in Vasai, Maharashtra, India. These micro pulverizer utilized for soft materials like chemicals, dyestuff, foodstuff, pharma bulk drugs etc. for fine grinding. Since the pulverizer is used vastly for chemicals & bulk drugs, and other heat sensitive materials, it has a built-in water jacket to control the temperature in the grinding chamber.

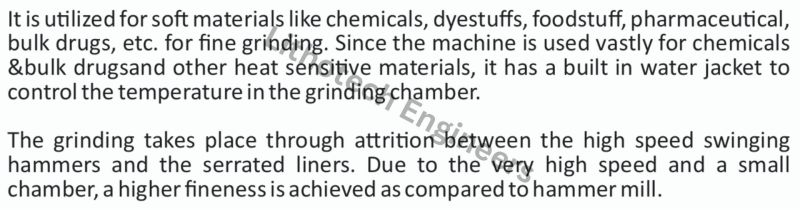

It is ulized for so materials like chemicals, dyestuffs, foodstuff, pharmaceucal, bulk drugs, etc. for fine grinding. Since the machine is used vastly for chemicals &bulk drugsand other heat sensive materials, it has a built in water jacket to control the temperature in the grinding chamber. The grinding takes place through arion between the high speed swinging hammers and the serrated liners. Due to the very high speed and a small chamber, a higher fineness is achieved as compared to hammer mill.

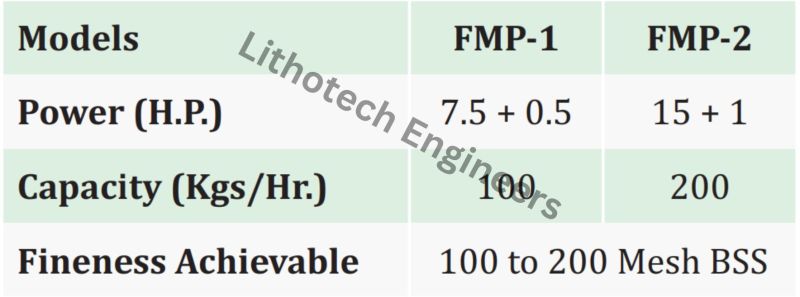

Technical Specification
| Model | FMP-1 | FMP-2 |
|---|---|---|
| Power (HP) | 7.5+0.5 | 15-1 |
| Capacity (Kg/ Hr) | 100 | 200 |
| Fineness Achievable | Upto 100 -250 Mesh BSS | |

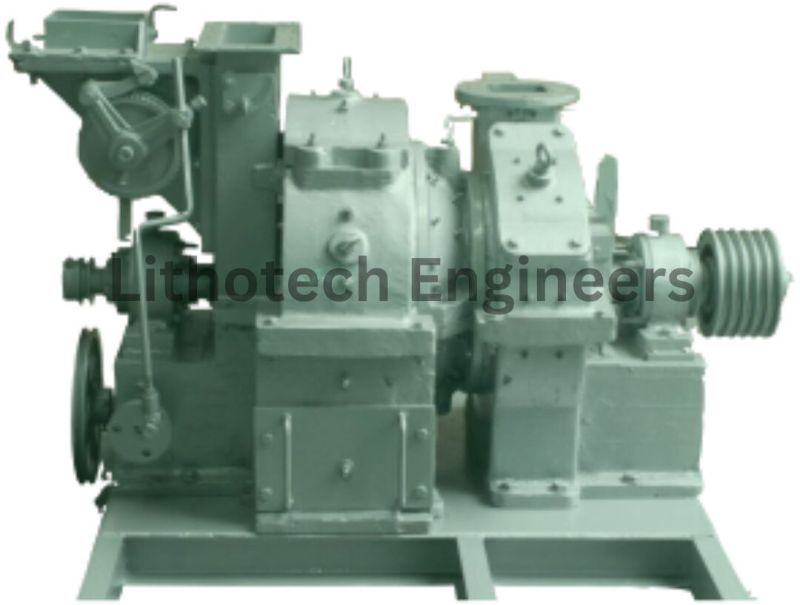

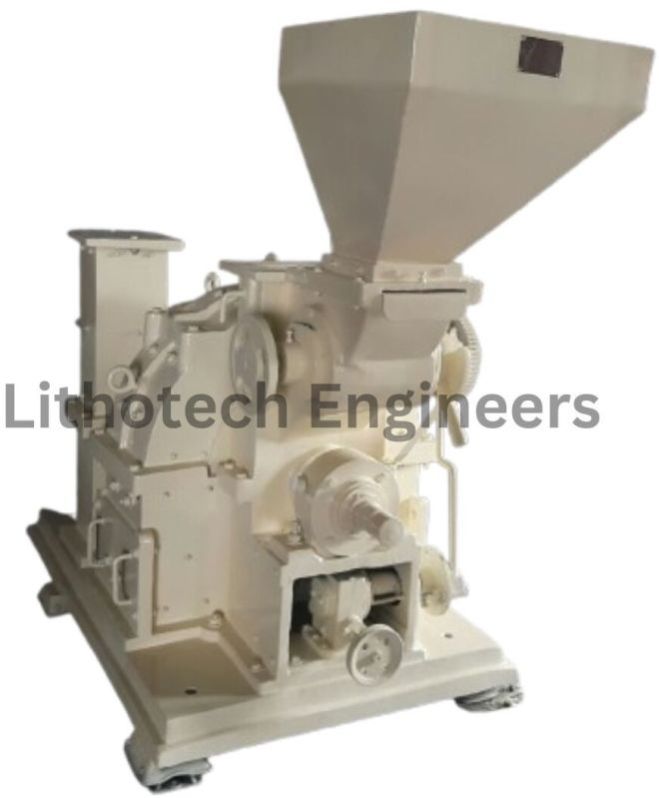

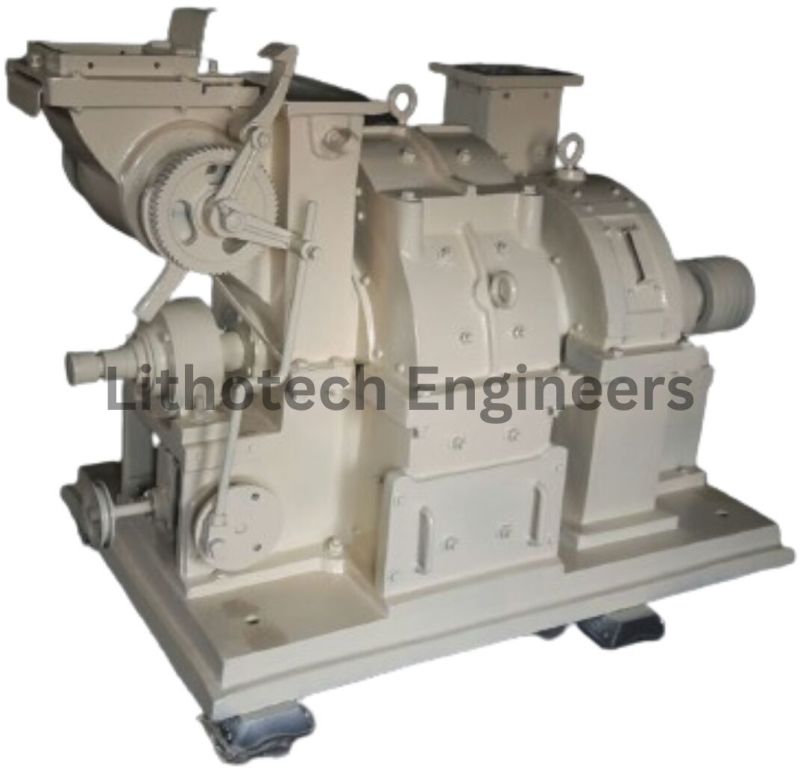

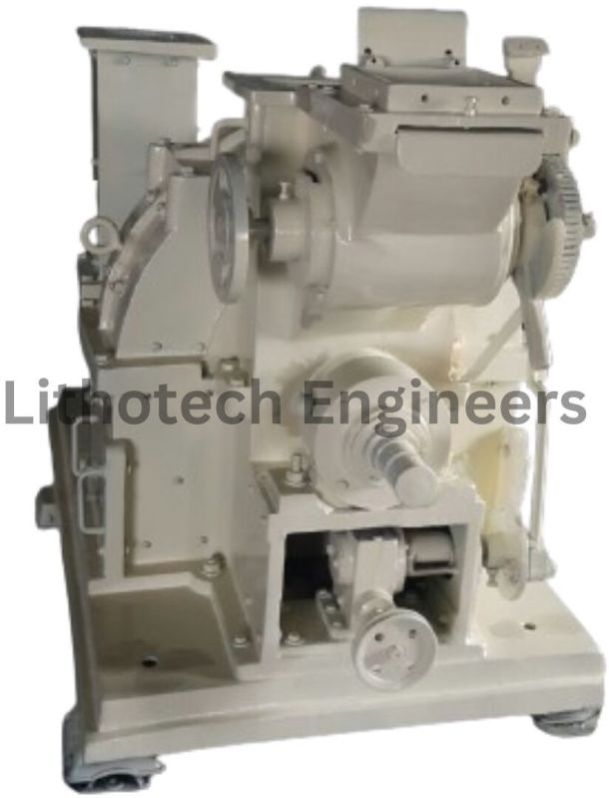

Impex Pulverizer is one among the wide range of Industrial Crushers that is designed for medium fine grinding of soft or semi hard materials

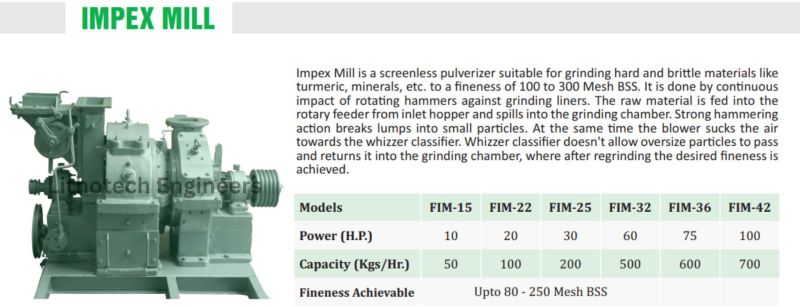

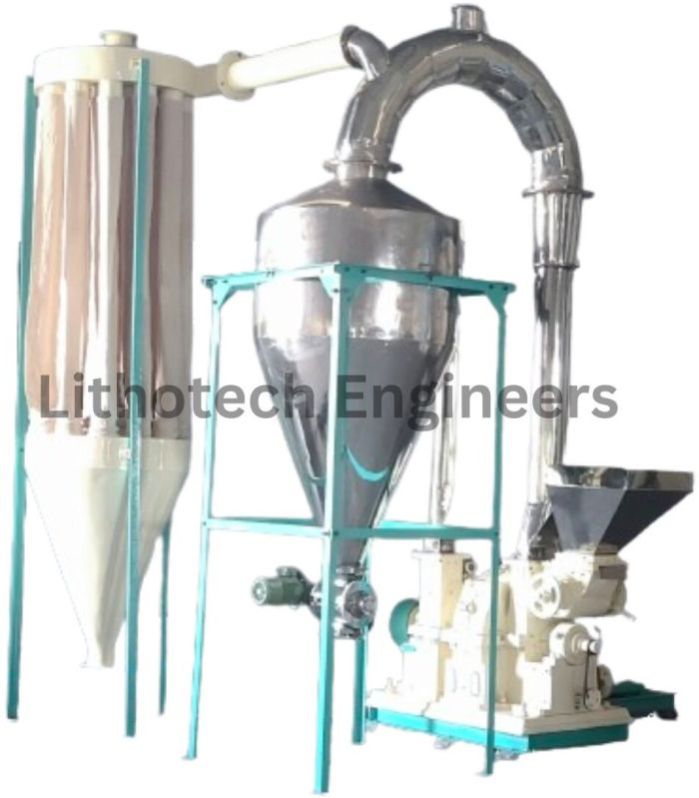

Impex Pulverizer is a screenless pulverizer suitable for grinding hard and brile materials like turmeric, minerals, etc. to a fineness of 100 to 300 Mesh BSS. It is done by connuous impact of rotang hammers against grinding liners. The raw material is fed into the rotary feeder from inlet hopper and spills into the grinding chamber. Strong hammering acon breaks lumps into small parcles. At the same me the blower sucks the air towards the whizzer classifier. Whizzer classifier doesn't allow oversize parcles to pass and returns it into the grinding chamber, where aer regrinding the desired fineness is achieved.
Technical Specification
| Model | FIM-15 | FIM-22 | FIM-25 | FIM-32 |
|---|---|---|---|---|
| Power (HP) | 10 | 20 | 30 | 60 |
| Capacity (Kg/ Hr) | 50 | 100 | 200 | 400 |
| Fineness Achievable | Upto 100 -250 Mesh BSS | |||
