Our Products

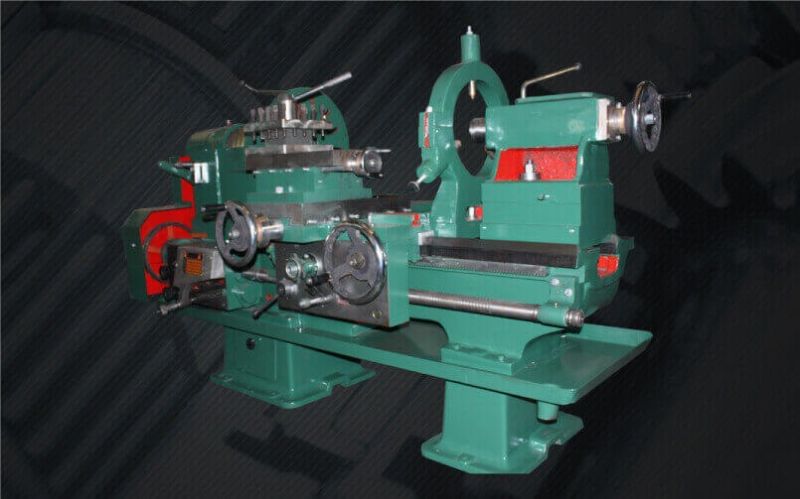

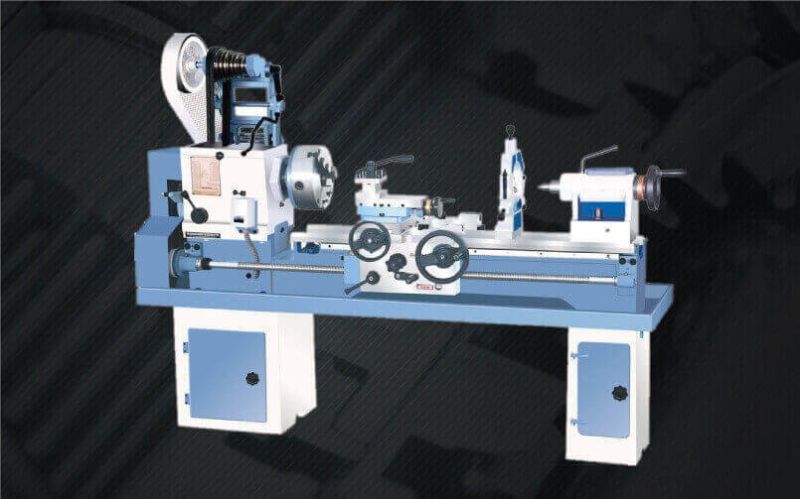

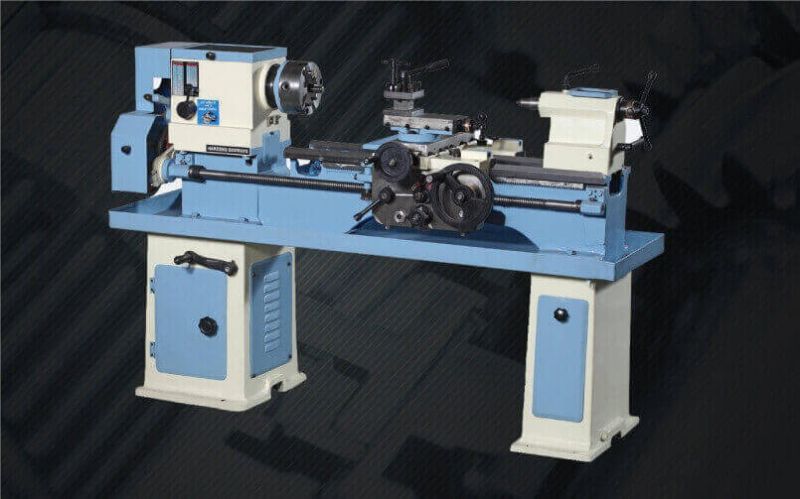

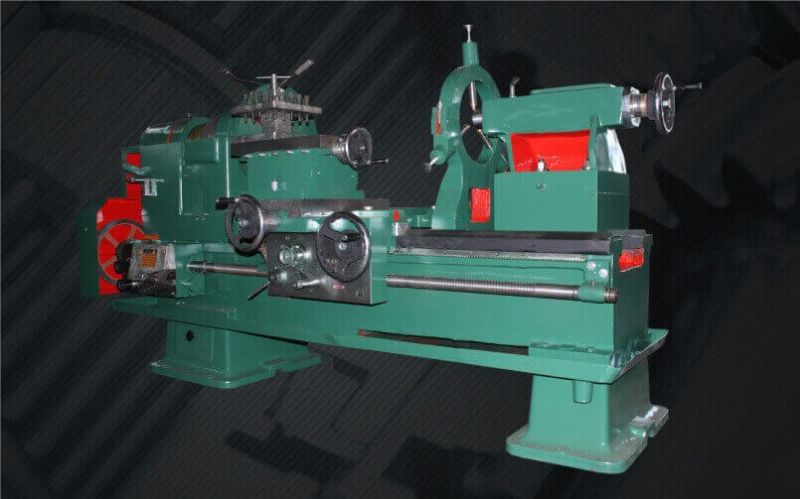

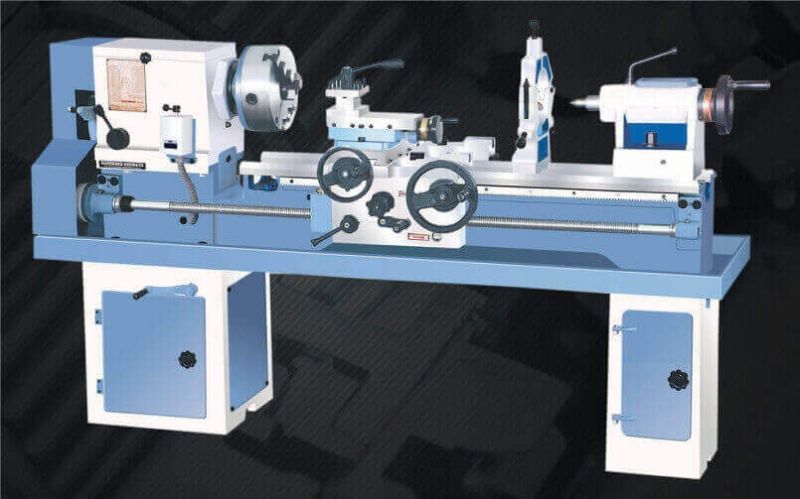

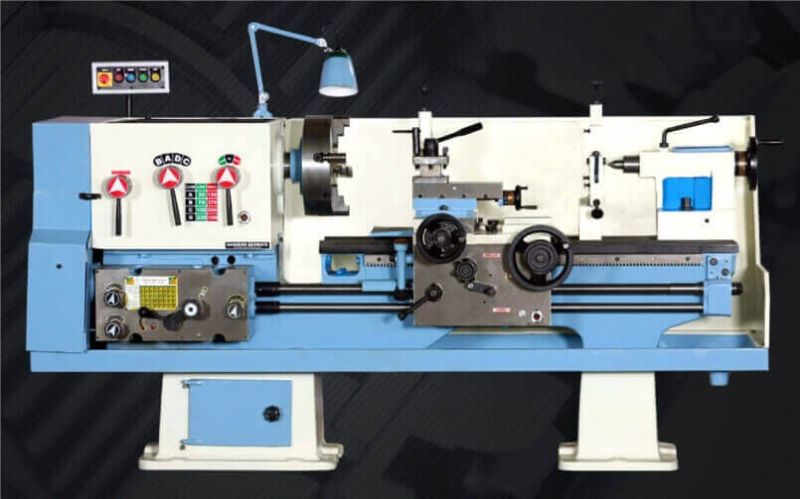

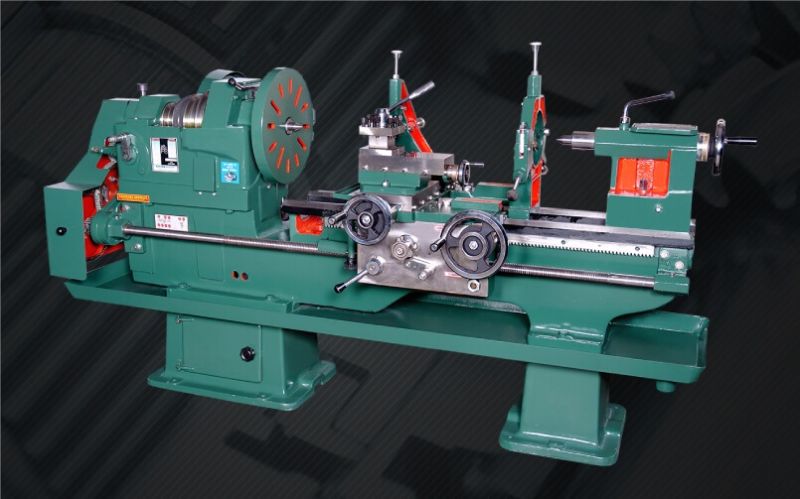

We are leaders in the market for providing best range of Light Duty under Counter Lathe Machine, Medium Duty Lathe Machine, Medium Duty 215 UNDER Counter Lathe Machine, Medium Duty 215 Upper Counter Lathe Machine and Heavy Duty Lathe Machine
We are the group of companies of MACPOWER CNC MACHINES LIMITED-RAJKOT, and the Manufacturers of All type of LATHE MACHINE AND MILLING MACHINE
TURNER / TURBO
IF YOU ARE LOOKING FOR ANY LATHE MACHINE/ MILLING MACHINE
Feel free to contact us.
And please share short details about your needs.
We want to help you find the best machine for you.
PLEASE DESCRIBE YOUR REQUIREMENTS IN DETAIL LIKE:
Or Call / WhatsApp70166 10276
Lathe Machine Bed Length
Lathe Machine Height of Center
Lathe Machine Spindle Bore Size
Universal Milling Machine Table size

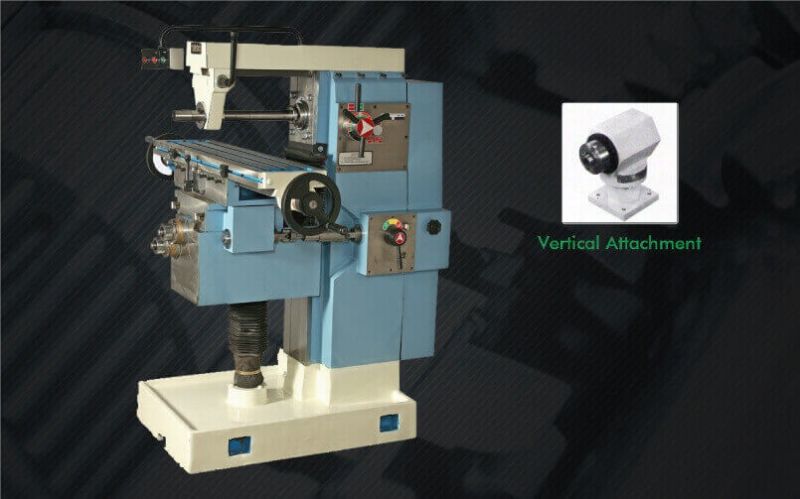

MAC-1 1000 x 230

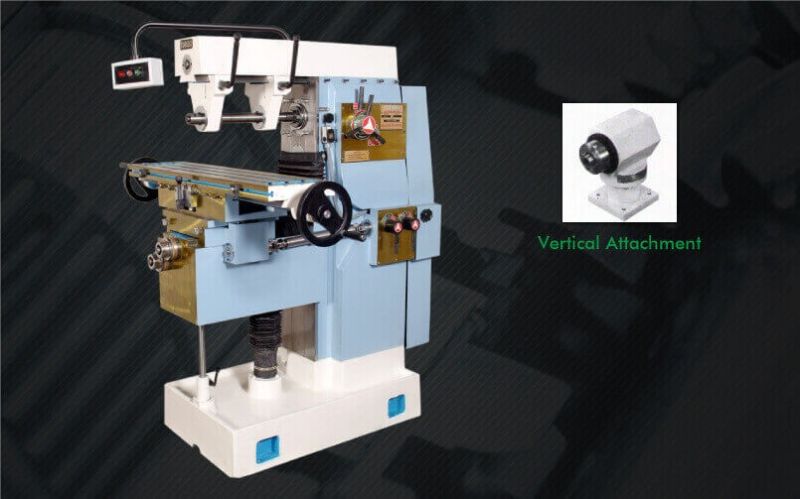

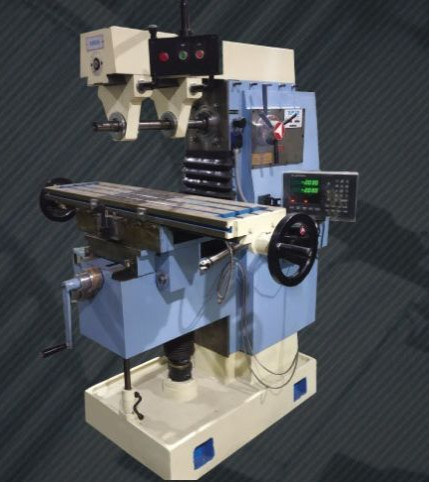

MAC-2 1100 x 280

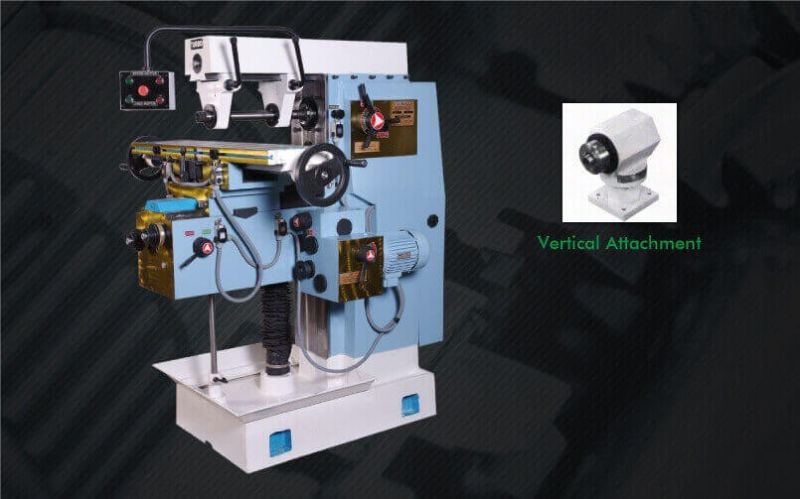

AG-2 1100x 280 Fully Automatic
AG-3 1525 x 300 Fully Automatic
Lathe & Milling Machine catalogue https://drive.google.com/file/d/1NKBdY1zkp8xO87_qBEWkiqVDuxMwjJp-/view?usp=sharing
MACPOWER INDUSTRIES,
5, Umakant Udyognagar, Mavdi Plot,
Rajkot - 360 004 (Gujarat) India.
70166 10276
Additional Information:
Delivery Time : 40 DAYS
TECHNICAL DATA
| Specification | MD-1 | MD-2 | MD-3 |
|---|---|---|---|
| Bed: | |||
| Bed Type | 2 V & 2 Flat | 2 V & 2 Flat | 2 V & 2 Flat |
| Bed Length | 1375 (4′ 6″) | 1600 (5′-3″) | 1825 (6′) |
| Bed Width | 280 (11″) | 280 (11″) | 280 (11″) |
| Gap Length | 110 mm | 110 mm | 110 mm |
| Gap Length in front of Face Plate | 105 mm | 105 mm | 105 mm |
| Capacity: | |||
| Height Of Centre | 215 (10″) | 215 (10″) | 215 (10″) |
| Swing over Bed | 510 mm | 510 mm | 510 mm |
| Swing over Gap | 710 mm | 710 mm | 710 mm |
| Swing over Cross Slide | 320 mm | 320 mm | 320 mm |
| Admit Between Centre | 510 mm | 730 mm | 950 mm |
| Movement of Cross Slide | 240 mm | 240 mm | 240 mm |
| Movement of Compound Slide | 110 mm | 110 mm | 110 mm |
| Main Spindle: | |||
| Spindle Nose (Threaded Type) | Ø 105 mm | Ø 105 mm | Ø 105 mm |
| Taper Bore in Spindle Sleeve | MT-4 | MT-4 | MT-4 |
| Spindle Bore | Ø 80 (3.1/8″) | Ø 80 (3.1/8″) | Ø 80 (3.1/8″) |
| Tail Stock: | |||
| Quill Dia | Ø 50.8 mm | Ø 50.8 mm | Ø 50.8 mm |
| Taper in Quill | MT-4 | MT-4 | MT-4 |
| Quill Travel | 130 mm | 130 mm | 130 mm |
TECHNICAL DATA
| Parameters | Unit | Specification | |
|---|---|---|---|
| MILLING SPINDLE: | |||
| SPINDLE NOSE | ISO | ISO-40 | |
| NUMBER OF SPEEDS | NUMERIC | 18 NOS | |
| SPEED RANGE (MIN. / MAX.) | RPM | 35 ~ 1750 | |
| DISTANCE BETWEEN SPINDLE AXIS TO TABLE SURFACE | MM | 70-465 (Min/Max.) | |
| DISTANCE OF SPINDLE AXIS TO BOTTOM SURFACE OF OVER ARM | MM | 155 | |
| TABLE: | |||
| GENERAL DIMENSION (LENGTH X WIDTH) | MM | 1525 X 300 | |
| NUMBER OF T-SLOTS | NUMERIC | 3 | |
| WIDTH OF T-SLOTS | MM | 16 | |
| CENTER DISTANCE OF T-SLOTS | MM | 65 | |
| MINIMUM DISTANCE LEFT HAND TABLE END TO SPINDLE CENTER | CENTER MM | CENTER MM 250 | |
| SWIVEL OF TABLE | DEGREE | 45° | |
