Chemical Reactors & Process Tanks

Our offered Product range includes Sea Going Tug, Cruise Vessels, offshore vessels, Coastal Vessel and Sea Going Passenger Vessel.

Sea Going Tug

A vessel equipped with a towing winch to tow other vessels in open sea and with manoeuvring capabilities to assist vessels to berth/unberth in ports. May also be able to push barges and other vessels.

  • Specifications
    Type Pirotan Jal Lahari / Mohun Bagan 22
    Length Overall 35 26.175
    Breadth Moulded 10.2 8.2
    Depth Moulded 4.9 3.8
    Propulsion SRP CONVENTIONAL
    Bollard Pull 35 TONS @ 85 % MCR 26 TONS @ 100 % MCR
    Classification IRS IRS
View Complete Details

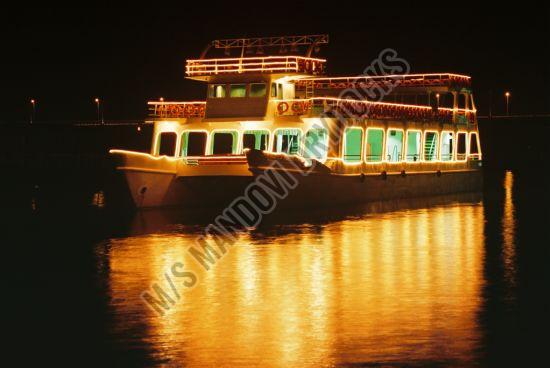

Cruise Vessels

A vessel used for carriage of passengers with purpose of a to b transport on rivers/lakes/canals, not suitable for open sea voyages.

  • Specifications
    Specification MV KAPIL PRINCESSA DE GOA
    Length Overall 32.5 MTRS 37.0 MTRS
    Breadth Moulded 9.0 MTRS 12.0 MTRS
    Depth Moulded 2.85 MTRS 3.20 MTRS
    Propulsion CONVENTIONAL CONVENTIONAL
    Speed 8 KNOTS 9 KNOTS
    DWT 240 TONS GRT - 510.9 TONS
    Passenger & Crew 240 PASSENGER & 8 CREW 444 PASSENGERS & 10 CREW
View Complete Details

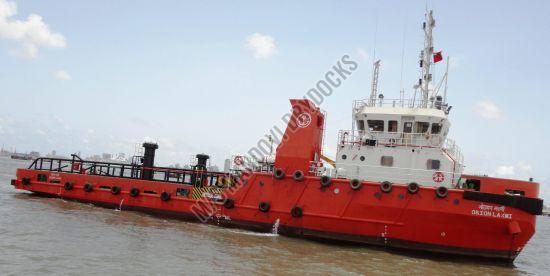

Offshore Vessels

  • Capacity 35 T Bollard Pull @ 85% MCR
  • Length Overall 35.30 Mtrs
  • Breadth 10.20 Mtrs
  • Depth 05.10 Mtrs
  • Speed 11 Knots
  • Endurance 1000 N. Miles
  • Displacement 507 T
  • Dead Weight 239.27 T
  • Tonnages 446 GT, 134 NT
  • Propulsion 2 X Schottel Srp 1012 Fp
  • Free Running Speed 11 KNOTS @ 85% MCR
  • Complement 6 Officers + 10 Crew
  • Passengers 10

A vessel equipped with a towing facility, also used for the transportation of stores and goods to offshore platforms on an open stern deck.

View Complete Details

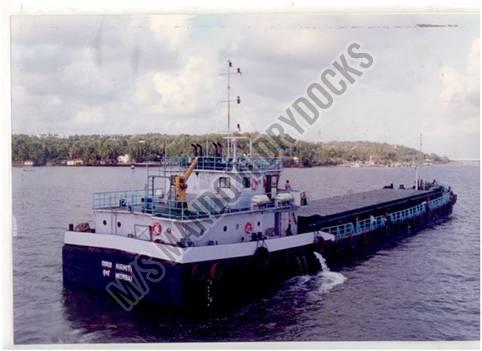

Coastal Vessel

The vessel is designed and constructed as a gearless twin screw motor vessel, built for carrying Iron Ore, Coal, Grains, etc. The vessel shall have machinery space, accommodation and navigation space located aft. The vessel will have a single continuous deck and with single cargo hold. The wheel house will be fitted with windows in order to ensure minimum obstructed view from the steering position. The cargo hold is having arrangement of Hatch Covers.

  • Specifications
    Length Overall 74.80 MTS 70 MTS 69.7 MTS 67.4 MTS
    Beam 14 MTS 13 MTS 13.4 MTS 12.5 MTS
    Depth 04.25 MTS 04.25 MTS 04.25 MTS 04.25 MTS
    Trial speed 9 KNOTS 9 KNOTS 9 KNOTS 9 KNOTS
    Complement 9 9 9 9
    DWT 2500 2050 2150 1950
View Complete Details

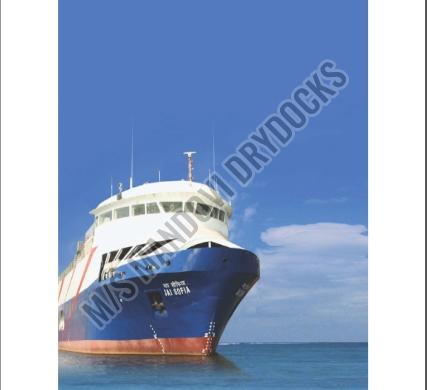

Sea Going Passenger Vessel

  • Vessel Name Jai Sofia
  • Length Overall 65.8 Mtrs
  • Breadth Moulded 15.00 Mtrs
  • Depth Moulded 4.2 Mtrs
  • Propulsion Conventional
  • Speed 12 Knots
  • Grt 2656 Tons
  • Main Generators Volvo Penta 4 Nos, 310 Kva @ 1500 Rpm
  • Passenger & Crew 285 Passengers & 15 Crews
  • Classification IRS

A vessel certificated to carry more than 12 passengers, all of whom may be accommodated in cabins.

View Complete Details

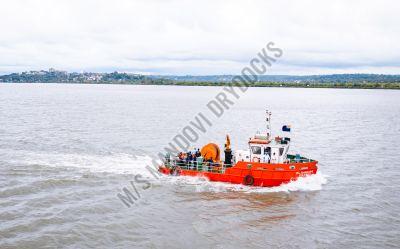

Pollution Control Vessel

  • Length Overall 17 Meters
  • Breadth Moulded 5.5 Meters
  • Depth Moulded 2.25 Meters
  • Main Engines 2X220 HP
  • Main Generator 1X32.5 KVA

View Complete Details
