Ms Mandovi Drydocks
Goa, India
gstGST : 30AGHPS5972J1Z1 Verified Add Review

Food Grains & Cereals #2162402

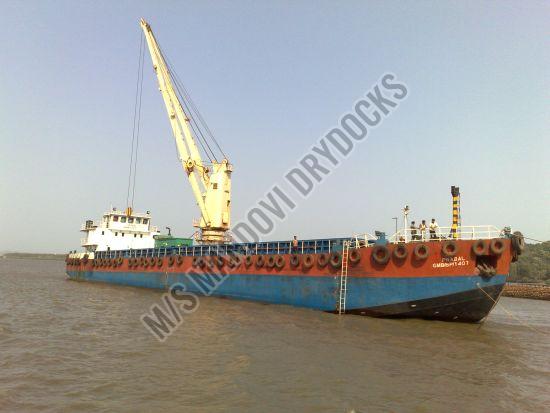

Floating Crane Barge

  • Power Source Fuel
  • Conditon New
  • Features Bulk Handling, Compact Slewing Column Design
  • Suitable For High Speed Applications
  • Application areas Coastal waters, Sheltered waters, Ports, Rivers
  • Quality Best
View Complete Details

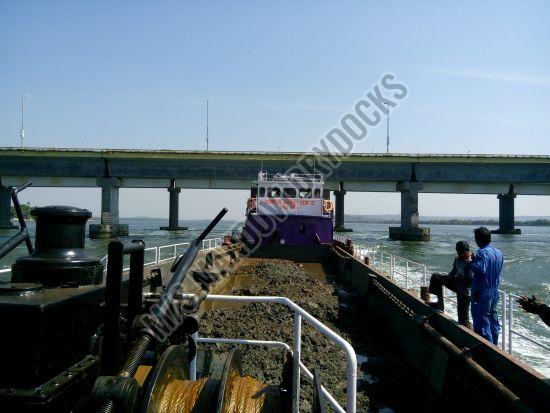

Hopper Barge With Doors

  • Length Overall 46.00 Mtrs
  • Breadth Mld 07.60 Mtrs
  • Depth 02.60 Mtrs
  • Displacement (Loaded) 504.467
  • T Deadweight 320.867 T

A self propelled vessel equipped to carry material and discharge it at sea through the bottom of the vessel, by bottom doors.

View Complete Details

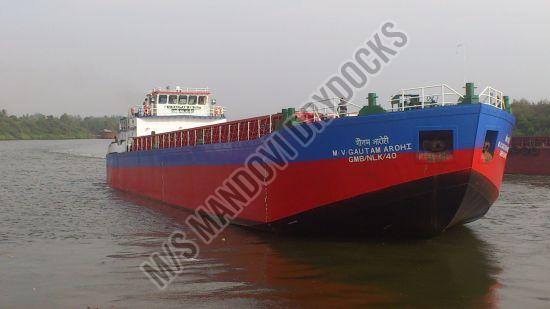

Self Propelled Barge

A long flat bottomed vessel carrying general cargo like iron ore, coal, grains etc on rivers & canals either on its own power or towed by another vessel. The vessel is designed and constructed as a gearless twin screw motor vessel. The vessel shall have machinery space, accommodation and navigation space located aft. The vessel will have a single continuous deck and with single cargo hold. The wheel house will be fitted with windows in order to ensure minimum obstructed view from the steering position.

Specifications

Type Size 1 Size 2 Size 3 Size 4
Length Overall 75 70.06 80.85 81.18
Breadth Moulded 14 16 17.2 17.4
Depth Moulded 4.85 5.35 5.86 6.52
Propulsion Conventional Conventional Conventional Conventional
Speed 9 KNOTS 9 KNOTS 9 KNOTS 9 KNOTS
DWT 2700 TONS 3300 TONS 4500 TONS 5100 TONS
Classification IRS IRS IRS IRS
View Complete Details

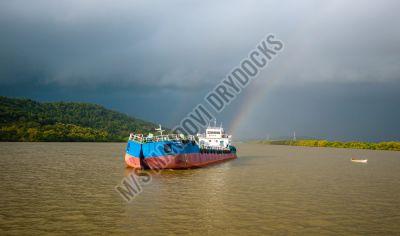

Split Hopper Barge

  • Speed 06 Knots
  • Length Overall 70.00 Mtrs
  • Breadth MLD 14.00 Mtrs
  • Depth MLD 04.20 Mtrs
  • DWT 2000 T
  • Cubic Capacity 1100 M3

A self propelled vessel equipped to carry material and discharge it at sea through the bottom by splitting of the hull.

View Complete Details
