Mayur Engineers

Chinchwad, Pune, Maharashtra

With its distinct design and investment casting adding to its low space consumption STRYKER SERIES CLOSE COUPLED PUMPS have gained a lot of popularity in the market. With its high efficiency and sturdy design these pumps are widely used in chemical and paint industries. By eliminating the coupling in this design these pumps are almost maintenance free.

Material of Construction:

• CASING : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M,   CN 7M,  CD 4MCuN, CE 3MN, others on request
• IMPELLER    : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M, CN 7M,  CD 4MCuN, CE 3MN, others on request
• SHAFT : SS 410, SS 316, UNS 32760, Alloy 20, Teflon lined, others on request

Sealing Versions

• Internal single seal bottom foot mounted
• External single seal bottom foot mounted
• Gland packed bottom foot mounted
• Double seal with API plans bottom foot mounted
• Steam jacketed bottom foot mounted
• Internal single seal center foot mounted
• Double seal with API plans center foot mounted

Applications:

• Chemical Process Industries
• Fertilizer Plants
• Bulk Drugs and Pharmaceutical
• Heating and Air Conditioning Plants
• Sugar Plant
• Water Supply
• Pulp and Paper
• Cement
• Agriculture Textile
• Jet Dyeing

STRYKER SERIES HORIZONTAL BACK PULL OUT PUMPS are designed in investment casting and as per ISO 5199 design standard and DIN 24256 / ISO 2858 dimension standard for process and transfer duty applications for all types of liquids with and without solids content in an end suction horizontal back pullout design. All types of corrosive, abrasive, and crystallising liquids can be handled with various mechanical seal configurations with all API flushing options and with all types bearing cooling options.

Material of Construction

• CASING  : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M, CN 7M,  CD 4MCuN, CE 3MN, others on request
• IMPELLER    : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M, CN 7M,  CD 4MCuN, CE 3MN, others on request
• SHAFT  : SS 410, SS 316, UNS 32760, Alloy 20, Teflon lined, others on request

Sealing Versions

• Internal single seal bottom foot mounted
• External single seal bottom foot mounted
• Gland packed bottom foot mounted
• Double seal with API plans bottom foot mounted
• Steam jacketed bottom foot mounted
• Internal single seal centre foot mounted
• Double seal with API plans centre foot mounted.

Applications:

• Chemical Process Industries
• Fertilizer Plants
• Bulk Drugs and Pharmaceutical
• Heating and Air Conditioning Plants
• Sugar Plant
• Water Supply
• Pulp and Paper
• Cement
• Agriculture Textile
• Jet Dyeing

(Schwings stetter transit mixer water pump)Since our establishment, we have become the well-known manufacturer and supplier of a highly efficient range of Transit Mixer Water Pump. Our mixer pump is praised for its low-maintenance, sturdy design and high performance. This mixer pump is designed using high grade components and ultra modern technology.

Features:

• Suitable for dry running.
• Guarantee on seal performance.
• Timely delivery of pumps (100 pumps within 2 weeks)

Material of Construction:

• Casing – C.I FG 260
• Impeller– C.I FG 260
• Bearing Housing– C.I FG 260
• Shaft– SS
• Pulley– C.I FG 260

STRYKER VERTICAL INLINE MULTISTAGE  pumps are non-self priming vertical multistage pump of in-line design, flange or with victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All Pumps are equipped with a cartridge type mechanical seal for easy maintenance.

Salient Features

• High Operating Efficiency.
• Stainless Steel: Impeller, Pump Shaft, Stage Casing, Stage Sleeve in both SS304/SS316 Grade.
• Suction & delivery casing: Cast iron/SS316.
• Good suction lift and operating pressure.
• Dynamically balanced rotating part.
• Good compatibility and environment friendly
• Balanced and rigid construction

Applications

• Cooling Towers, Air conditioning & Refrigeration systems
• Commercial water treatment, Reverse osmosis(RO), Distillation & Filtration systems
• Fire fighting systems
• Bungalows, Hospitals, Hotels & Commercial buildings
• Chiller plant
• Hot and cold water circulations
• Clean liquid pumping
• Machine tools(cooling Lubricant)
• High pressure water distribution

STRYKER SERIES VERTICAL EXTENDED SHAFT PUMPS are designed as per ISO 5199 design standard for process and transfer duty applications for all types of liquids without solids content in a vertical extended shaft (sump) installation. All types of corrosive, abrasive, and crystallizing liquids can be handled with either seal-less or dry seal configurations with all API flushing options and with all types wet bearing flushing options. Jacketing option provides for steam passage wherever necessary.

Applications: Acids, alkalis, dyes, paints, petrochemicals, intermediates, seawater, molten sulfur, crystallizing liquids, hydrocarbons, hot water, clear effluents.

Industries: Fertilizer, Petrochemicals, Refineries, Textile, Water treatment, Wastewater treatment, Steel, Power Generation, Pharmaceutical, Acid, Caustic Soda, Soda Ash, Adhesives, Paper & Pulp, Distillery, Sugar, Seawater Desalination

Versions:

• Seal-less pump
• Pump with dry mechanical seal (vapour seal)
• Pump with gland packing
• Pump with steam jacketing

Material of Construction

• CASING  : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M, CN 7M,  CD 4MCuN, CE 3MN, others on request
• IMPELLER     : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M, CN 7M,  CD 4MCuN, CE 3MN, others on request
• SHAFT : SS 410, SS 316, UNS 32760, Alloy 20, Teflon lined, others on request

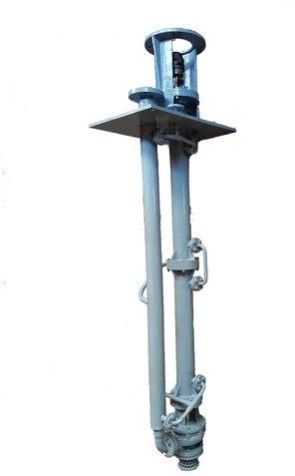

stryker series vertical jackated pumps are designed as per iso 5199 design standard for process and transfer duty applications for all types of liquids without solids content in a vertical extended shaft (sump) installation. All types of corrosive, abrasive, and crystallizing liquids can be handled with either seal-less or dry seal configurations with all api flushing options and with all types wet bearing flushing options. Jacketing option provides for steam passage wherever necessary.

applications: acids, alkalis, dyes, paints, petrochemicals, intermediates, seawater, molten sulfur, crystallizing liquids, hydrocarbons, hot water, clear effluents.

industries: fertilizer, petrochemicals, refineries, textile, water treatment, wastewater treatment, steel, power generation, pharmaceutical, acid, caustic soda, soda ash, adhesives, paper & pulp, distillery, sugar, seawater desalination
versions:

• seal-less pump
• pump with dry mechanical seal (vapour seal)
• pump with gland packing
• pump with steam jacketing

material of construction

• casing : ci, ni-resist, wcb, aric, din 4136, c 3c, cf 8, cf 8m, cf 3, cf 3m, cn 7m, cd 4mcun, ce 3mn, others on request

• impeller : ci, ni-resist, wcb, aric, din 4136, c 3c, cf 8, cf 8m, cf 3, cf 3m, cn 7m, cd 4mcun, ce 3mn, others on request

• shaft : ss 410, ss 316, uns 32760, alloy 20, teflon lined, others on request

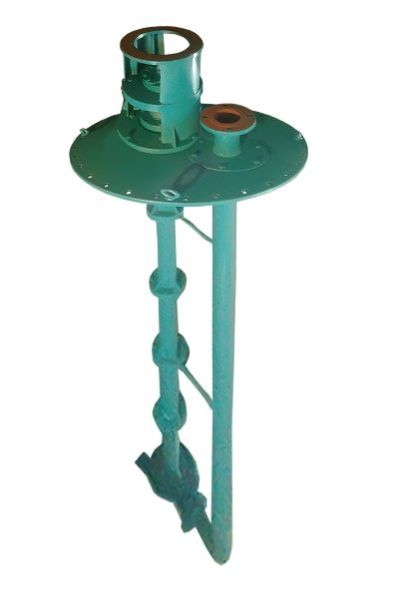

STRYKER series vertical pumps are designed as per ISO 5199 design standard for process and transfer duty applications for all types of liquids without solids content in a vertical extended shaft (sump) installation. All types of corrosive, abrasive, and crystallizing liquids can be handled with either seal-less or dry seal configurations with all API flushing options and with all types wet bearing flushing options. Jacketing option provides for steam passage wherever necessary.

Applications:

• Acids
• paints,
• petrochemicals,
• seawater,
• molten sulfur,
• crystallizing liquids,
• hydrocarbons,
• clear effluents

Industries: Fertilizer, Petrochemicals, Refineries, Textile, Steel, Power Generation, Pharmaceutical, Acid, Caustic Soda, Soda Ash, Adhesives, Paper & Pulp, Distillery, Sugar.

Versions:

• Seal-less pump
• Pump with dry mechanical seal (vapor seal)
• Pump with gland packing
• Pump with steam jacketing

Material of Construction

• CASING : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M,   CN 7M,  CD 4MCuN, CE 3MN, others on request
• IMPELLER     : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M,   CN 7M,  CD 4MCuN, CE 3MN, others on request
• SHAFT  : SS 410, SS 316, UNS 32760, Alloy 20, Teflon lined, others on request

STRYKER Vertical In-Line Pumps are suitable for electric drives only. Stryker Vertical In-Line pumps can also be offered as pre-wired packages that include a limited or full-service controller. Every package is mounted on a steel fabricated base with the motor wired to the controller. The automatic air relief valve, casing relief valve, suction gauge and discharge gauge are mounted on their respective spool pieces. Additional piping, valves and sensing lines are available with the In-Line packages. The SPP In-Line package system also includes a jockey pump and jockey pump controller.
Vertical motor allows for easy access to pump internals for maintenance and repairs.

Typical Installations:

• Office Buildings
• Hospitals, Airports
• Manufacturing Facilities
• Power Stations
• Pharmaceutical Facilities

Typical Applications:

• Sprinkler Systems
• Hydrant Systems
• Deluge Systems
• Monitor Systems
• Water Curtain

Material of Construction

• CASING  : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M, CN 7M,  CD 4MCuN, CE 3MN, others on request
• IMPELLER     : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M, CN 7M,  CD 4MCuN, CE 3MN, others on request
• SHAFT : SS 410, SS 316, UNS 32760, Alloy 20, Teflon lined, others on request
