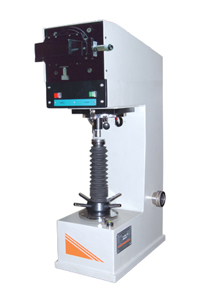

Contact SupplierMechatronic Control System’s Vickers Hardness Tester is simple & accurate in design. It is suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard & their accurate results are widely acclaimed. These testers strictly conform to 15:1754-1968.
FeaturesApplied objective with 70x magnification Length of diagonal of indentation 742 micron = 0.742
Â
Technical DataTest Loads | 5,10,20,30,50kg. |
Magnification of optical projection | 70X |
Max. Test Height (mm.) | 200 |
Scale least count(mm.) | 0.001 |
Depth of throat (mm. | 133 |
Dimensions of Machine (mm.) | L585xW290xH860 |
Weight (Approx) | 73kg. |
Power Supply | 220V AC, 50 Hz, 1-Phase |
01 | Standard Test Block | 1 pc. |
02 | Diamond Penetrator | 1 pc. |
03 | Weights | 1 set. |
04 | Flat Anvil | 1 pc. |
05 | Â Vee-type Anvil (Small and Big) | 1 pc. each |
06 | Â Spanners | 1 pc. |
07 | Electric cord | 1 pc. |
08 | Instruction Manual |
1 book |
Â
ConstructionTo accommodate the high precision loading system & an optical projection screen, the machine frame is designed sturdy. Specimen is placed on a testing table. The test cycle is fully automatic. The accurate load is applied on a diamond penetrator by means of a lever & weights. The load is removed automatically after a specific lapse of time. The objective is indexed with the test piece & the diamond indentation is projected on the measuring screen. The diagonals of the indentation can be measured by means of the micrometer screw of the projection screen.
