1 Products availableOur product range contains a wide range of Oxygen Gas Generator, Membrane Nitrogen Gas Generator, Ozone Gas Generator, NG Series Nitrogen Gas Generator and n2 Gas Generators

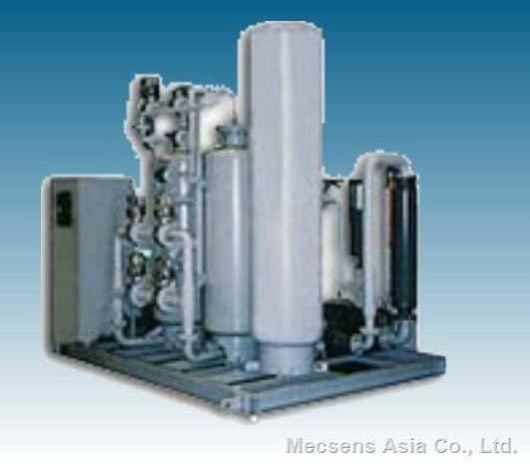

For cost savings in gas, order our Oxygen Gas Generators, based upon advanced PSA technology. We are banded together with the agile Manufacturers and Suppliers of the O2 Generators in Taiwan. Highly used in bio laboratories, aquariums and other industries, these generators make 90%+-5 Purity O2 from air. Also, we customize these O2 Generators to befit the client’s specifications. For rational prices, count on us!
Specifications
| Model | Purity | Capacity | Overall Dimension cm | Air Compressor Power Requirement |
||
|---|---|---|---|---|---|---|
| N2 m3/h | L | W | H | |||
| OG01 | 90+-5% | 0.66 | 330 | 410 | 1270 | 1.5 KW |
| OG05 | 90+-5% | 4.6 | 640 | 660 | 1780 | 7.5 KW |
| OG10 | 90+-5% | 9.84 | 760 | 910 | 2130 | 11 KW |
| OG20 | 90+-5% | 19.7 | 1220 | 1400 | 2240 | 22 KW |
| OG40 | 90+-5% | 39.43 | 1448 | 1910 | 2641 | 45 KW |
| OG50 | 90+-5% | 52.57 | 1450 | 1910 | 3180 | 55 KW |
| OG100 | 90+-5% | 105.15 | 1829 | 2490 | 4190 | 132 KW |
| OG130 | 90+-5% | 131.4 | 1842 | 2464 | 4877 | 160 KW |
We are ranked among the responsible Manufacturers and Suppliers of Membrane Nitrogen Gas Generator in Taiwan. Reckoned for their high-performance and user-friendly features, our entire range of Membrane Nitrogen Generators is precision-engineered, functions optimally and guarantees long service life. To satiate variegated needs, we offer the customized Membrane Nitrogen Generator as well. Also, our prices are nominal.
Specifications
| Model | Production Nm3/h @ 0.7MPaG, 25â | |||||
| 99.90% | 99.00% | 98.00% | 97.00% | 96.00% | 95.00% | |
| NM-B01A | 0.03 | 0.07 | 0.1 | 0.14 | 0.17 | 0.19 |
| NM-B02A | 0.06 | 0.15 | 0.21 | 0.27 | 0.33 | 0.4 |
| NM-B05A | 0.12 | 0.34 | 0.49 | 0.63 | 0.77 | 0.92 |
| NM-B10A | 0.24 | 0.66 | 0.95 | 1.2 | 1.5 | 1.8 |
| NM-C05A | 0.26 | 0.74 | 1.1 | 1.4 | 1.7 | 2.1 |
| NM-C10A | 0.57 | 1.6 | 2.4 | 3.1 | 3.8 | 4.5 |
| NM-410A | 1.2 | 3.6 | 5.2 | 6.8 | 8.3 | 10 |
| NM-615 | 3.7 | 12 | 17 | 22 | 27 | 32 |
| NM-815 | 4.8 | 21 | 31 | 41 | 51 | 62 |
Overall Dimension & Connectors
| Model | Dimension mm | Connector sizeC | Weight |
||||
|---|---|---|---|---|---|---|---|
| L | D | d | Air inlet | N2 outlet | Enriched O2 outlet | ||
| NM-B01A | 235 | 55 | 50 | 3/8 B | 3/8 B | 3/8 B ï¼ | 0.8 |
| NM-B02A | 360 | 55 | 50 | 3/8 B | 3/8 B | 3/8 B ï¼ | 1 |
| NM-B05A | 610 | 55 | 50 | 3/8 B | 3/8 B | 3/8 B ï¼ | 1.5 |
| NM-B10A | 1110 | 55 | 50 | 3/8 B | 3/8 B | 3/8 B ï¼ | 2.5 |
| NM-C05A | 634 | 90 | 70 | 3/8 B | 3/8 B | 3/8 B | 3 |
| NM-C10A | 1110 | 110 | 70 | 3/8 B | 3/8 B | 1/2 B | 5.2 |
| NM-410A | 1160 | 165 | 100 | 1/2 B | 1/2 B | 3/4 B | 12 |
| NM-615 | 1545 | 279 | 165 | 1 B | 1 B | 11/2 B | 100 |
| NM-815 | 1554 | 343 | 216 | 11/2 B | 11/2 B | 2 B | 150 |

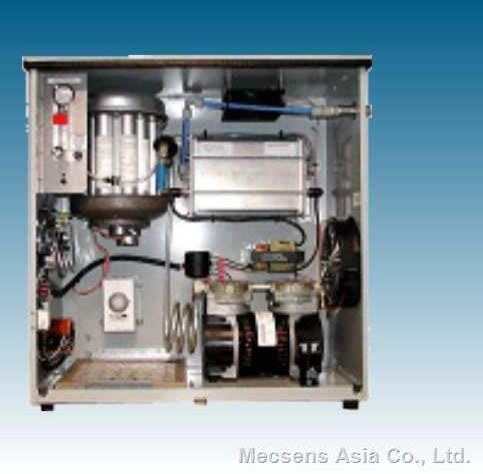

We bring to afore, the superlative range of O3 Generators that feature an immense demand for water treatment and research operations. Our name figures amid the A-listed Manufacturers and Suppliers of the Ozone Gas Generator in Taiwan. Appreciated for the innovative designing, these Generators promise the infallible operations in the long run. Buy them from us in ample specifications and enjoy lucrative deals.
Specifications :

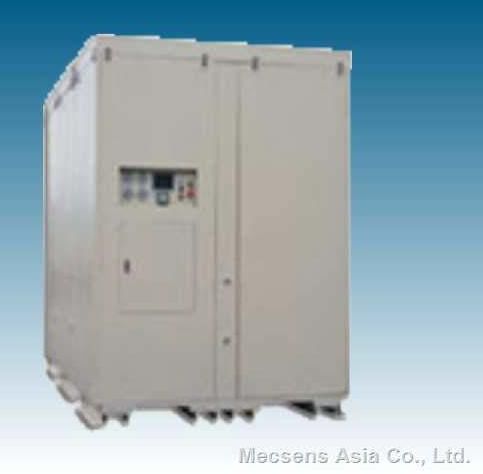

If seeking for the N2 Gas Generators that result in quick gas savings and high investment return, then reckon with us. We are the renowned entity in the domain of manufacturing and supplying the NG Series Nitrogen Gas Generator of the top level. Furnished in the choicest production rate and purity levels, these Generators comply well with the established norms. Buy them from us at cost-effective prices.
Specifications
| Model | Purity | Capacity m3/hour | Overall Dimension LXWXH CM | Air Compressor Power Requirement |
|---|---|---|---|---|
| 20NG29 20NG39 20NG49 |
99% 99.9% 99.99% |
20 | 1600X1100X1850 1980X1000X1930 2000X1100X2240 |
7.5KW 11KW 22Kw |
| 40NG29 40NG39 40NG49 |
99% 99.9% 99.99% |
40 | 1800X1200X2080 2200X1000X2240 2200X1140X2520 |
15KW 18KW 37Kw |
| 60NG29 60NG39 60NG49 |
99% 99.9% 99.99% |
60 | 2000X1300X2140 2100X1400X2580 2600X1600X2540 |
18KW 30KW 55Kw |
| 80NG29 80NG39 80NG49 |
99% 99.9% 99.99% |
80 | 2000X1300X2360 2200X1500X2510 2900X1710X2540 |
22KW 37KW 75Kw |
| 100NG29 100NG39 100NG49 |
99% 99.9% 99.99% |
100 | 2100X1400X2410 2200X2200X2330 3000X1800X2540 |
30KW 55KW 90Kw |
| 160NG29 160NG39 160NG49 |
99% 99.9% 99.99% |
160 | 2400X1500X2637 2700X1650X3000 3100X1850X3895 |
55KW 75KW 110Kw |
| 200NG29 200NG39 200NG49 |
99% 99.9% 99.99% |
200 | 2500X1600X2712 2800X1700X3305 3210X1910X4200 |
75KW 90KW 160Kw |
| 300NG29 300NG39 300NG49 |
99% 99.9% 99.99% |
300 | 2700X1700X3076 3000X1800X4344 3510X2060X4947 |
90KW 160KW 250Kw |
