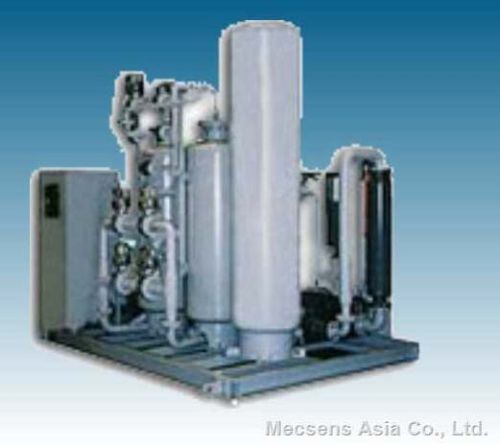

Membrane Nitrogen Gas Generator

Supply TypeManufacturer, Supplier
Preferred Buyer Location All Countries Except India

We are ranked among the responsible Manufacturers and Suppliers of Membrane Nitrogen Gas Generator in Taiwan. Reckoned for their high-performance and user-friendly features, our entire range of Membrane Nitrogen Generators is precision-engineered, functions optimally and guarantees long service life. To satiate variegated needs, we offer the customized Membrane Nitrogen Generator as well. Also, our prices are nominal.

View More Details

Send Enquiry

Product Details

Specifications

Model	Production Nm3/h @ 0.7MPaG, 25â
Model	99.90%	99.00%	98.00%	97.00%	96.00%	95.00%
NM-B01A	0.03	0.07	0.1	0.14	0.17	0.19
NM-B02A	0.06	0.15	0.21	0.27	0.33	0.4
NM-B05A	0.12	0.34	0.49	0.63	0.77	0.92
NM-B10A	0.24	0.66	0.95	1.2	1.5	1.8
NM-C05A	0.26	0.74	1.1	1.4	1.7	2.1
NM-C10A	0.57	1.6	2.4	3.1	3.8	4.5
NM-410A	1.2	3.6	5.2	6.8	8.3	10
NM-615	3.7	12	17	22	27	32
NM-815	4.8	21	31	41	51	62

Overall Dimension & Connectors

Model	Dimension mm			Connector sizeC			Weight
Model	L	D	d	Air inlet	N2 outlet	Enriched O2 outlet	Weight
NM-B01A	235	55	50	3/8 B	3/8 B	3/8 B ï¼	0.8
NM-B02A	360	55	50	3/8 B	3/8 B	3/8 B ï¼	1
NM-B05A	610	55	50	3/8 B	3/8 B	3/8 B ï¼	1.5
NM-B10A	1110	55	50	3/8 B	3/8 B	3/8 B ï¼	2.5
NM-C05A	634	90	70	3/8 B	3/8 B	3/8 B	3
NM-C10A	1110	110	70	3/8 B	3/8 B	1/2 B	5.2
NM-410A	1160	165	100	1/2 B	1/2 B	3/4 B	12
NM-615	1545	279	165	1 B	1 B	11/2 B	100
NM-815	1554	343	216	11/2 B	11/2 B	2 B	150
