Valves & Valve Fittings

Our offered Product range includes Forged Steel Globe Valve, Cast Steel Floating Ball Valve, Cast Steel Gate Valve, Cast Steel Trunnion Mounted Ball Valve and Cast Steel Globe Valve.

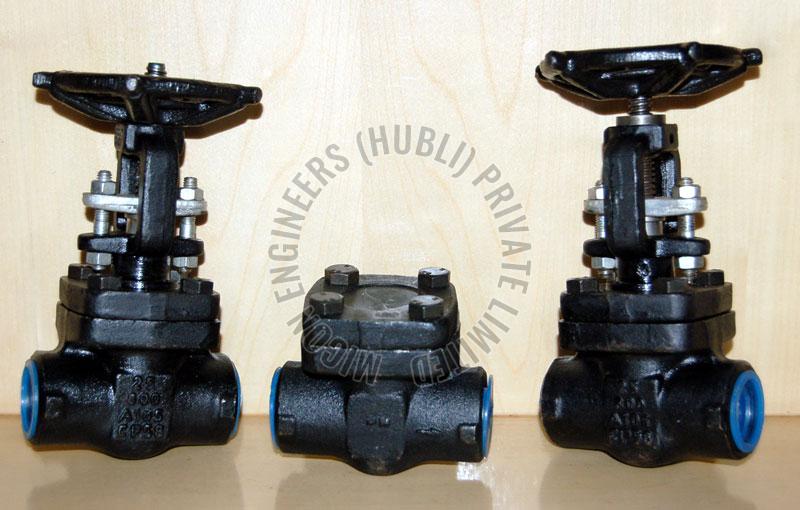

Forged Steel Globe Valve

  • Material Carbon Steel
  • Certification ISO 9001:2008 Certified
  • Power Hydraulic
  • Feature Blow-Out-Proof, Casting Approved, Durable, Investment Casting
  • Port Size 2cm-50cm
  • Number Of Way 2way

Our Forged Steel Gate, Globe & Lift Check Valve is sturdier and needs low maintenance. Forged Steel Globe Valve that we provide is designed by our expert team of engineers and it complies with international standards such as API 602 / EN ISO 15761, and many more. We are reliable Manufacturer, Exporter and Supplier of Forged Steel Valve offering quality-tested products to the customers. Features OS&Y type, Bolted bonnet. Solid wedge. Design Std.API 602 / ISO 15761/ANSI 16.34. Valves with integral back seat arrangement. Face to Face Dimension as per Mfr standard. Testing as per API 598/ EN ISO 12266-1. Screwed to BSP as per BS21/ANSI/ASME B1.20 NPT. Socket welds to B16.11/ Buttweld ends as per B16.25 On Request Full bore construction. Welded bonnet construction. Locking arrangement. NACE as per MR-01-75 / MR 0103. Stellited Hard Faces. For low temp & Cryogenic Service All Exotic Materials (Superduplex/Hastelloy/Monel/Incolloy) IBR Valves.

  • Materials Of Construction
    Part Name Material Option
    Body ASTM A105/182 F304, F304L, F316, F316L, F321, F5, F9, F11, 22, F44, F51, F53, F55/350 LF2
    Bonnet ASTM A105/182 F304, F304L, F316, F316L, F321, F5, F9, F11, 22, F44, F51, F53, F55/350 LF2
    Wedge / Plug / Disc ASTM A217 CA15/ASTM A351 CF8, CF8M, CF3, CF3M, SS321/A 182 F6a/Duplex
    Seat Rings ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/SS 321/Duplex
    Stem ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/SS 321/Duplex
    Gland ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/SS 321/Duplex
    Gland Flange ASTM A105/182 F304/ F316
    Yokesleeve / Bush ASTM A439 D2/ASTM A473 416 /S.G.IRON
    Gland Packing GRAFOIL / PTFE
    Bonnet Gasket SPIRAL WOUND SS304/304L/316/316L/321+GRAFOIL/PTFE
    Eye bolt / Nut ASTM A193 B7 A194 2H
    Stud / Hex bolt ASTM A193 B7/B7M/B8/B8M /B16/ASTM A320/L7
    Nut ASTM A194 2H/2HM/ 8/ 8M /ASTM A320/ 7
    Hand Wheel S.G. Iron / Malleable Iron / Carbon Steel
  • Garph
    Download Detail File : Click Here
  • Download
    Download Detail File : Click Here
View Complete Details

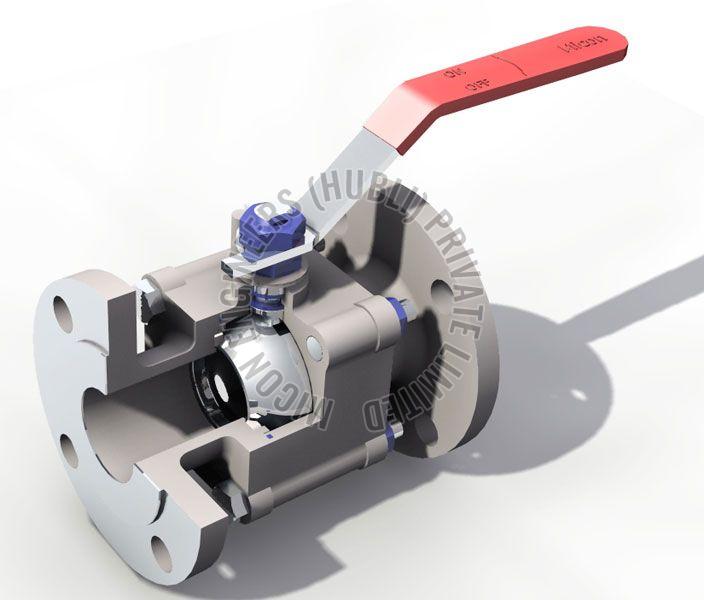

Cast Steel Floating Ball Valve

  • Material Cast Steel
  • Certification ISO 9001:2008
  • Application Gas Fitting, Oil Fitting, Water Fitting
  • Pressure High
  • Feature Blow-Out-Proof, Casting Approved, Durable
  • API 608 / BS 5351 1.1/4inch, 1inch, 2inch, 3/4inch

We offer Cast Steel Floating Ball Valve that is made in compliance with high quality standards of the industry. Our Floating Ball Valve is required in diverse industrial units. We have excellent manufacturing facilities owing to which our Floating Ball Valve has sturdy construction and higher durability. Features Low operating Torque. Design Std.EN ISO17292 / BS 5351. Blowout Proof Stem Design & Antistatic Device. Face to Face Dimension as per ANSI B 16.10. Testing as per EN ISO 12266-1. Fire safe tested design API 607/API 6FA. Flange Drilling as per ANSI B16.5 RF Serrated Full Bore / Reduced Bore On Request NACE as per MR-01-75. Locking arrangement. Gear/Pneumatic Actuator / Electrical Actuator. Emergency sealant injection. For low temp & Cryogenic Service as per BS 6364. Jacketed valves. Other Types of Ends & Drilling . Metal Seated valves

  • Materials Of Construction
    Part Name Material Option
    Body ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    End Piece ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Ball ASTM A351 / CF8, CF8M, CF3, CF3M /A890 DUPLEX
    Stem ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DUPLEX
    Body Seat Rings PTFE / GFT
    Stem Seal PTFE / GFT
    Gland ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L / DUPLEX
    Body Seal GRAFOIL / PTFE
    Gland Packing GRAFOIL / PTFE
    Lever CS + GALVANIZED + PVC
    Lever / Nut Carbon Steel
    Stud / Bolt ASTM A193 B7/B7M/B8/B8M / B16 / ASTM A320/L7
    Nut ASTM A194 2H/2HM/ 8/ 8M / ASTM A320 / 7
  • Garph
    Download Detail File : Click Here
  • Download
    Download Detail File : Click Here
View Complete Details

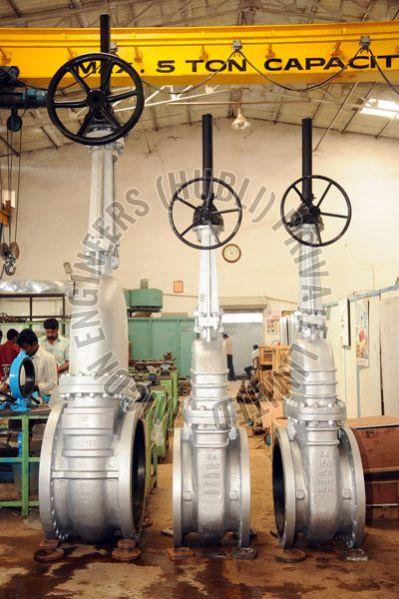

Cast Steel Gate Valve

  • Size 300-350mm
  • Material Cast Steel
  • Certification ISI Certified
  • Application Gas Fitting, Oil Fitting, Water Fitting
  • Weight 10-15kg
  • Structure Double Half Shaft
  • End Connection Butt Weld

Being regarded as prominent Gate Valve Manufacturer & Exporter industrial valves, we make sure that our product is reliable in terms of quality and longer working life. Cast Steel Gate Valve, offered by us, finds its application in several industries. Cast Steel Gate Valve that we provide is easy to install and require very less maintenance. Features OS & Y type, Bolted bonnet. Flexible wedge. Design Std. API 600 /ANSI 16.34. Face to Face Dimension as per B 16.10. Testing as per API 598/ EN ISO12266-1. Valves with back seat arrangement. Flange Drilling as per ANSI B16.5 RF Serrated / Buttweld ends as per B16.25 On Request API 6D Design. Locking arrangement. Solid wedge. Gear/Electrical Actuator. NACE as per MR-01-75. Stellited Hard face. For low temp & Cryogenic Service as per BS 6364. Jacketed valves.

  • Materials Of Construction
    Part Name Material Option
    Body ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Bonnet ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Wedge ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Seat Rings ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Stem ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DULPEX
    Gland ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DULPEX
    Gland Flange ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Yoke sleeve ASTM A439 D2/ASTM A473 416 /S.G.IRON
    Gland Packing GRAFOIL / PTFE
    Bonnet Gasket SPIRAL WOUND SS304 / 304L / 316 / 316L/ 321 + GRAFOIL / PTFE
    Body Stud ASTM A193 B7/B7M/B8/B8M /B16/ASTM A320/L7
    Body Nut ASTM A194 2H/2HM/ 8/ 8M /ASTM A320/ 7
    Hand Wheel S.G. Iron / Malleable Iron / Carbon Steel
  • Garph
    Download Detail File : Click Here
  • Download
    Download Detail File : Click Here
View Complete Details

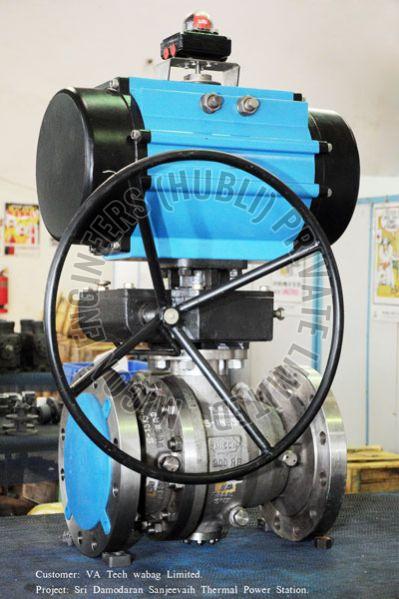

Cast Steel Trunnion Mounted Ball Valve

  • Material Cast Steel
  • Certification ISO 9001:2008
  • Application Gas Fitting
  • Pressure High
  • Warranty 1 year
  • Surface Non Polished

Our Cast Steel Trunnion Mounted Ball Valve is made in compliance with many international standards. Cast Steel Trunnion Mounted Ball Valve, offered by us, is made of excellent metal, and hence is strong and durable. Our commitment towards offering premium Cast Steel Trunnion Mounted Ball Valve has earned us appreciation from the customers. Features Low operating Torque. Design Std.EN ISO17292 /API 6D / BS 5251. Blowout Proof Stem Design & Antistatic Device. Face to Face Dimension as per ANSI B 16.10. Testing as per EN ISO 12266-1. Fire safe tested design API 607/API 6FA. Flange Drilling as per ANSI B16.5 RF Serrated Full Bore / Reduced Bore On Request NACE as per MR-01-75. Locking arrangement. Gear/Pneumatic Actuator/Electrical Actuator. Emergency sealant injection. For low temp & Cryogenic Service as per BS 6364. Jacketed valves. Other Types of Ends & Drilling . Metal Seated valves

  • Materials Of Construction
    Part Name Material Option
    Body ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    End Piece ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Ball ASTM A351/ CF8, CF8M, CF3, CF3MA890 DUPLEX
    Stem ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L//DUPLEX
    Body Seat Rings PTFE / GFT
    Stem Seal PTFE / GFT
    Gland ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L//DUPLEX
    Body Seal GRAFOIL / PTFE
    Gland Packing GRAFOIL / PTFE
    Lever CS + GALVANIZED + PVC
    Lever / Nut Carbon Steel
    Stud / Bolt ASTM A193 B7/B7M/B8/B8M /B16/ASTM A320/L7
    Nut ASTM A194 2H/2HM/ 8/ 8M /ASTM A320/ 7
  • Garph
    Download Detail File : Click Here
  • Download
    Download Detail File : Click Here
View Complete Details

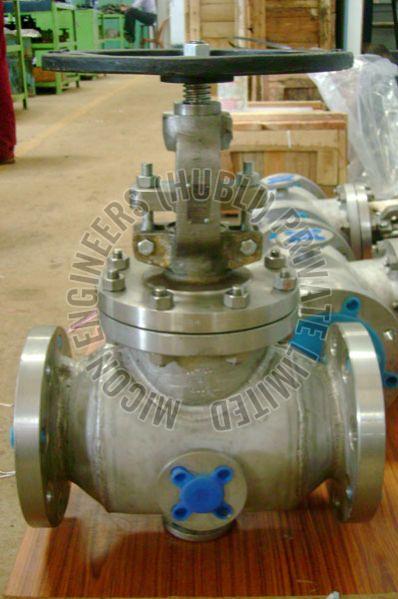

Cast Steel Globe Valve

  • Material Cast Steel
  • Certification ISI Certified
  • Power Hydraulic
  • Structure Double Half Shaft
  • Feature Blow-Out-Proof, Casting Approved, Durable
  • Port Size 0.1mm-5cm, 2cm-50cm
  • Technics Gear Operated
  • Number Of Way 2way

We are engaged in manufacturing, exporting and supplying of Cast Steel Globe Valve . We understand that various applications of the industries depend on Cast Steel Globe Valve, therefore we provide quality-tested Globe Valve to the customers. Our Globe Valve has flawless design structure. Customers can get Cast Steel Globe Valve from us at market leading rates. Features OS & Type, Bolted bonnet.Plug Type Disc. Design Std. BS 1873 /ANSI 16.34 . Face to Face Dimension as per B 16.10. Testing as per BS 6755-1/ EN ISO 12266-1. Valves with back seat arrangement. Flange Drilling as per ANSI B16.5 RF Serrated / Buttweld ends as per B16.25 On Request Parabolic plug for linear characteristics. Guided & Soft seat plug . Locking arrangement. Gear/Electrical Actuator. NACE as per MR-01-75. Stellited Hard face. For low temp & Cryogenic Service as per BS 6364. Jacketed valves.

  • Materials Of Construction
    Part Name Material Option
    Body ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Bonnet ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Plug ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Seat Rings ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Stem ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DULPEX
    Gland ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DULPEX
    Gland Flange ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
    Yoke Bush ASTM A439 D2/ASTM A473 416 /S.G.IRON
    Gland Packing GRAFOIL / PTFE
    Bonnet Gasket SPIRAL WOUND SS304/304L/316/316L/321+GRAFOIL/PTFE
    Eye Bolt / Nut ASTM A193 B7 A194 2H
    Body Stud ASTM A193 B7/B7M/B8/B8M /B16/ASTM A320/L7
    Body Nut ASTM A194 2H/2HM/ 8/ 8M /ASTM A320/ 7
    Hand Wheel S.G. Iron / Malleable Iron / Carbon Steel
  • Garph
    Download Detail File : Click Here
  • Download
    Download Detail File : Click Here
View Complete Details

Forged Steel Gate Valve

  • Material Forged Steel
  • Application Oil Fitting, Water Fitting
  • Weight 10-15kg
  • Condition New
  • Pressure High
  • Feature Durable
  • Surface Finishing Polished

View Complete Details

O Forged Steel Valve

  • Material Forged Steel
  • Application Oil Fitting, Water Fitting
  • Weight 10-15kg
  • Condition New
  • Pressure High,High Pressure
  • Feature Durable, Good Quality
  • Packaging Details Export Quality

View Complete Details

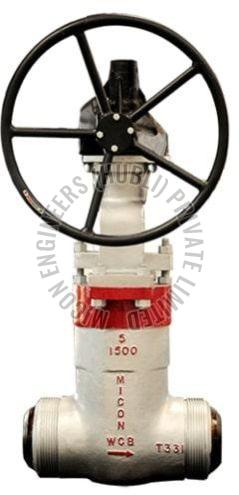

Pressure Seal Bonnet Valve

  • Material Metal
  • Application Oil Fitting, Water Fitting
  • Automatic Grade Manual
  • Pressure High
  • Feature Durable
  • Finishing Polished

View Complete Details

Forged Steel Ball Valve

  • Material Carbon Steel
  • Certification ISO 9001:2008 Certified
  • Power Hydraulic
  • Structure Double Half Shaft
  • Feature Blow-Out-Proof, Casting Approved, Durable
  • Port Size 2cm-50cm
  • Technics Gear Operated

Our Forged Steel Ball Valve has premium design structure and is easy to install. We offer Forged Steel Ball Valve that is tested at every stage of production. Moreover, our Forged Steel Ball Valve has high endurance towards corrosion and can sustain extreme conditions. Hence, we are counted amongst trusted Manufacturer, Exporter and Supplier of Forged Steel Ball Valve. Features Low operating Torque. Design Std.EN ISO17292 / BS 5351. Blowout Proof Stem Design &Antistatic Device. Face to Face Dimension as per Mfr standrad. Fire safe tested design API 607/API6FA. Testing as per EN ISO12266-1. Screwed to BSP as per BS21/ANSI/ASME B1.20 NPT Socket welds to B16.11/ Buttweld ends as per B16.25 On Request Locking arrangement. NACE as per MR-01-75. Nipple Welded.

  • Materials Of Construction
    Part Name Material Option
    Body ASTM A105/182 F304, F304L, F316, F316L, F321, F5, F9, F11, 22, F44, F51, F53, F55/350 LF2
    Connector ASTM A105/182 F304, F304L, F316, F316L, F321, F5, F9, F11, 22, F44, F51, F53, F55/350 LF2
    Ball ASTM A217 CA15/ASTM A276 SS 410, SS304, SS316, SS304L, SS316L/DUPLEX
    Stem ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/SS 321/DUPLEX
    Body Seat Rings PTFE / GFT
    Stem Seal PTFE / GFT
    Gland ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/SS 321/DUPLEX
    Body Seal GRAFOIL / PTFE
    Gland Packing GRAFOIL / PTFE
    Lever CS+GALVANIZED+PVC
    Lever / Nut Carbon Steel
  • Garph
    Download Detail File : Click Here
  • Download
    Download Detail File : Click Here
View Complete Details

Cast Steel Butterfly Valve

  • Material Cast Steel
  • Type Butterfly
  • Sizes 40mm to 600mm
  • Pressure Rating PN 10 & PN 16 (MAX).
  • Operating Temprature 40oC to 200oC
  • Flanges ANSI #125/150,PN10, PN16 & BS 10 TABLE D&E.

Our Cast Steel Butterfly Valve is made using premium metals and alloys. We provide Butterfly Valve in different sizes. Butterfly Valve that we offer has a compact design and needs low maintenance. In addition to this, our Cast Steel Butterfly is available at market leading rates. Features Suitable for mounting between all standard Flanges are ANSI #125/150, PN10, PN16 & BS 10 TABLE D&E. Operating Temprature : 40 o C to 200 o C Constrution Type : Center disc design with replaceble rubber seat. Design std BS EN 593 ( Replace by BS 5155 ). IS 13095 & API 609. Testing std BS EN 12266-1/ BS 6755-1 ). Face to Face as per BS EN 558 & ISO 5752. Pressure Rating : PN 10 & PN 16 (MAX). Sizes : 40mm to 600mm Excellent flow control in quarter turn operation. Compact, space saving design. Bi-directional 100% tight shut off. Low weight, low maintenance, long service life Both shafts mounted in bearing supports for easy operating torques. Gasket packing not required to install between flanges

  • Materials Of Construction
    Part Name Material Option
    Body CI GG25, DI GGG40, A217 WCB A351 CF8/CF8M , AB2.
    Disc DI GGG40, A351 CF8/CF8M , AB2.
    Seat / Sleeve EPDM, NITRILE, VITON, NEOPRENE,
    Shaft ASTM A276 SS410/SS 304/SS 316 / SS
    Hand Lever Carbon Steel
  • Garph
    Download Detail File : Click Here
  • Download
    Download Detail File : Click Here
View Complete Details

Water Ball Valve

  • Material Metal
  • Application Water Fitting
  • Pattern Plain
  • Condition New
  • Pressure High Pressure
  • Feature Durable, Easy Maintenance.
  • Automation Grade Manual

View Complete Details

2PC Ball Valve

  • Material Metal
  • Application Oil Fitting, Water Fitting
  • Pattern Plain
  • Condition New
  • Pressure High Pressure
  • Feature Easy Maintenance., Smooth Finish And Robust Design

View Complete Details
