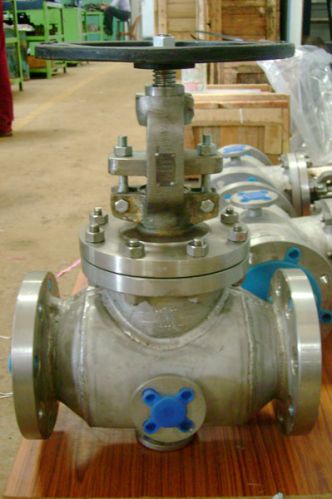

Cast Steel Globe Valve, Certification : ISI Certified

Get Latest Price

MaterialCast Steel
CertificationISI Certified
Port Size0.1mm-5cm, 2cm-50cm
FeatureBlow-Out-Proof, Casting Approved, Durable
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Micon Engineers (Hubli) Private Limited

Gokul Road, Hubli, Karnataka

4.4/5

(29)

View Number

Member Since 17 Years
Nature of Business Retailer
GST No. 29AAECM6092P1ZN

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialCast Steel
CertificationISI Certified
StructureDouble Half Shaft
FeatureBlow-Out-Proof, Casting Approved, Durable
Port Size0.1mm-5cm, 2cm-50cm
Number Of Way2way
PowerHydraulic
TechnicsGear Operated

We are engaged in manufacturing, exporting and supplying of Cast Steel Globe Valve. We understand that various applications of the industries depend on Cast Steel Globe Valve, therefore we provide quality-tested Globe Valve to the customers. Our Globe Valve has flawless design structure. Customers can get Cast Steel Globe Valve from us at market leading rates.
Features

OS & Type, Bolted bonnet.Plug Type Disc.
Design Std. BS 1873 /ANSI 16.34 .
Face to Face Dimension as per B 16.10.
Testing as per BS 6755-1/ EN ISO 12266-1.
Valves with back seat arrangement.
Flange Drilling as per ANSI B16.5 RF Serrated / Buttweld ends as per B16.25

On Request

Parabolic plug for linear characteristics.
Guided & Soft seat plug .
Locking arrangement.
Gear/Electrical Actuator.
NACE as per MR-01-75.
Stellited Hard face.
For low temp & Cryogenic Service as per BS 6364.
Jacketed valves.

Materials Of Construction

Part Name	Material Option
Body	ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Bonnet	ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Plug	ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Seat Rings	ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Stem	ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DULPEX
Gland	ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DULPEX
Gland Flange	ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Yoke Bush	ASTM A439 D2/ASTM A473 416 /S.G.IRON
Gland Packing	GRAFOIL / PTFE
Bonnet Gasket	SPIRAL WOUND SS304/304L/316/316L/321+GRAFOIL/PTFE
Eye Bolt / Nut	ASTM A193 B7 A194 2H
Body Stud	ASTM A193 B7/B7M/B8/B8M /B16/ASTM A320/L7
Body Nut	ASTM A194 2H/2HM/ 8/ 8M /ASTM A320/ 7
Hand Wheel	S.G. Iron / Malleable Iron / Carbon Steel
