Leading Manufacturer, Supplier & Retailer of CNC HEAVY DUTY GRINDER HGRIND630X2500, GCE/U 350 HYDRAULIC GRINDER, GCH 440 HYDRAULIC GRINDER, UNIVERSAL GRINDER IG-150U and IG-50 CNC PRODUCTION INTERNAL GRINDER.
The H Grind 630x2500 is the solution for grinding of Large & heavy parts like Axle Beam, Large Ball Valves, Turbine Shafts, crankshafts, earth moving & construction parts etc.It can grind parts up to 3000mm in length, 630mm in diameter & weighing up to 750 Kilograms.
Salient features of this machine:
| Specifications | Flexi 400 |
|---|---|
| Centre Height | 175 mm |
| Admit between Centre | 400 mm |
| Table Stroke | 640 mm |
| Rapid Feed Rate | 8000 mm/min |
| Slide Stroke | 320 mm |
| Minimum increment/pulse | 0.0001 mm |
| Swivelling range | -15 to +225 degree |
| B- Axis Resolution | 0.0001 degree |

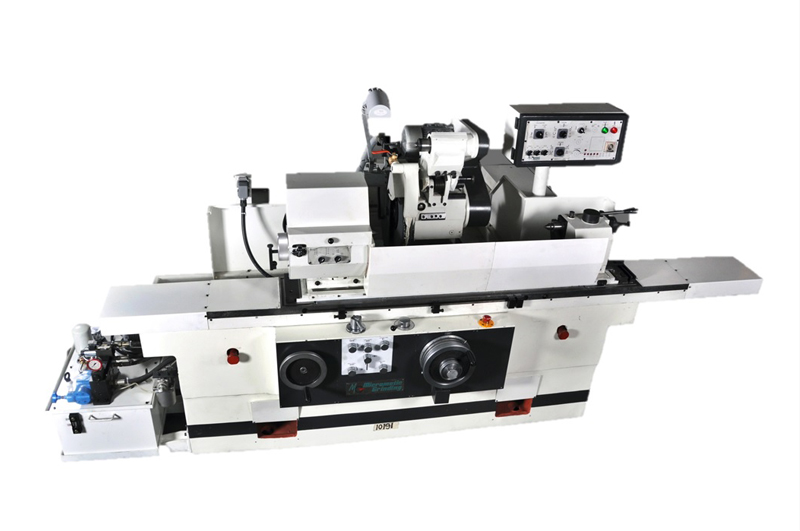

A Hydraulic Cylindrical grinding machine for External, Internal or Face grinding of small components in small to medium Production batches. Highly precise & available with many optional accessories to grind large variety of components. The machine is available in only External, only Internal or Universal configurations in both Semi automatic & automatic versions.
| Specifications | GCE/U 350 |
|---|---|
| Swing Diameter | 350 mm |
| Admit Between Centers | 500/800/1200 mm |
| Max Grinding Wheel φ x Width | 400(500) x 50 (80) mm |
| Grinding wheel spindle power | 3.7 (5.5) kW |
| Wheel surface speed | 33 (45) m/sec |
A Hydraulic Cylindrical grinding machine for External, Internal or Face grinding of large or heavy components in small to medium Production batches. Highly precise & available with many optional accessories to grind large variety of components. The machine is available in only External, only Internal or Universal configurations in automatic version only.
| Specifications | GCH 440 |
|---|---|
| Swing Diameter | 440 mm |
| Admit Between Centers | 800/1600/2000 mm |
| Max Grinding Wheel φ x Width | 500(600) x 80(100) mm |
| Grinding wheel spindle power | 7.5 kW |
| Wheel surface speed | 33 (45) m/sec |
The IG-150U universal grinder is developed for high volume production of chucked components requiring Internal & External Grinding of Diameters in a single chucking.
The machine features separate slides for Internal & External Grinding spindles. The grinding feed is through separate slide on which the work spindle is mounted. Optional features like, Linear glass scales, rotary dresser, Dynamic Balancer, HF Spindels are also available.
| Specifications | IG-150U |
|---|---|
| Max. Swing dia of Chuck | 300 [ 450, 600] mm |
| Max./Min Grinding diameter | 150 [200] /5 mm |
| Maximum Grinding depth | 120 mm |
| Workhead Spindle Nose | A2-6 [ A2-8 ] |
| Max. component weight (including Chuck) | 110 (150) kg |
| Internal Grinding spindle | Belt Drive- upto 35,000 RPM / HF Drive upto1,05,000 RPM |
| OD grinding Wheel size | 400 x 50 mm |
This is a compact machine for high precision internal bore & face grinding of components in medium to High Production volumes. Suitable for small components like connecting rods, bushes, fuel injection parts etc. The machine is capable for grinding with CBN or conventional abrasives, tooled up with Belt driven or High Frequency Spindles (option) for optimum productivity.
| Specifications | IG 50 |
|---|---|
| Max. Rotating Diameter of component | 120 mm |
| Max./Min. Grinding Diameter | 50/5 mm |
| Max. Grinding Length | 70 mm |
| Max. Component Weight | 50 Kg |
This is an Economical 2 Axis CNC machine for external grinding of components in medium to High Production volumes. It is ideally suited for medium & small scale industries. Suitable for components ground in multiple plunges or in traverse grinding like pump shafts, motor shafts etc. The machine is available in both Straight & Angular Wheel Head Configurations.
| Specifications | SG-P | SG-A |
|---|---|---|
| Swing Diameter | 260 mm | 260 mm |
| Admit between Centers | 400/630/1000 mm | 400/630/1000 mm |
| Max. Grinding Wheel Φ x Width | 500 x 65 mm | 500 x 65 mm |
| Grinding Wheel Spindle Power | 3.7(5.5) kW | 3.7(5.5) kW |
| Wheel Surface Speed | 45 m/s | 45 m/s |
Jaguar CLG6020/5020 meets the criteria for High Productivity centerless grinding. The machine is suitable for both in-feed and Thru-Feed Grinding of small to medium sized parts. The large wheel size of 610mm with improved wheel utilization reduces number of setups and on the CLG6020 model improves the cycle time. The machine can be tooled up for various components with automation. Ideal for grinding components like Engine Valves, torsion bar, UJ Cross, Compressor shaft etc.
| Specifications | U/M | CLG-5020 / 6015 | CLG-6020 / 6025 | CLG-6030 (TG*) |
|---|---|---|---|---|
| Component Diameter | mm | 2-60 | 3-120 | 3-120 |
| Grinding Wheel Φ x Width | mm | 510 x 200 / 610 x 150 | 610 x 200 / 610 x 250 | 610 x 305 |
| Regulating Wheel Φ x Width | mm | 305 x 200 / 150 | 305 x 200 / 250 | 305 x 305 |
| Grinding wheel spindle power | kW | 11 (15) | 22 (30) | 30 |
| Wheel Surface Speed | m / s | 45 | 45 | 45 |
This is a machine for high precision internal Bore & Face grinding of components in medium to High Production volumes. The machine is suitable for large components like Synchro Ring etc. The workholding interface is standard A2/5 nose with option of up to A2/8 interface also available for large parts. The machine is capable for grinding with CBN or conventional abrasives, tooled up with Belt driven or High Frequency Spindles (option) for optimum productivity.
| Specifications | IG 300 | IG 450 |
|---|---|---|
| Max. Rotating Diameter of component | 300 mm | 450 mm |
| Max. Grinding Diameter | 200 mm | 250 mm |
| Min. Grinding Diameter | 5 mm | 10 mm |
| Max. Grinding Length | 150 mm | 150 mm |
| Max. Component Weight | 50 Kg | 100 Kg |
