Kitchenware And Cookware

Leading Manufacturer, Supplier & Retailer of Steam Boiling Pan, Tilting Boiling Pan and Bottom Entry Mixer.

Steam Boiling Pan

98,577 - 6.52 Lakh / Unit Get Latest Price
  • Min. Order (MOQ) 1 Nos
  • Brand Name Microtech Engineering
  • Steam Pressure Up To 4 Bar
  • Capacity Up To 500 Liters
  • Size Customized

Our Rapidly Growing Organization Is Offering A Wide Gamut Of Boiling Pan That Is Widely Used In Food And Pharma Industry. The Offered Pan Is Designed By Deft Professionals Of The Market Using Advanced Technology And Latest Machines With Superior Grade Basic Material. In Line With Industry Set Standard, We Provide The Entire Range In Various Specifications As Per The Requirement Of Our Clients. In Additionally, Clients Can Avail The Entire Range From Us At Market Leading Rates.

Features

  • Optimum Functionality
  • Long Working Life
  • Minimum Maintenance


Specifications

  • Steam Pressure - Up To 4 Bar
  • Capacity - Up To 500 Liters
  • Size - Customized


The Following Type Of Boiling Pans / Kettles Are Manufactured

  • Tilt-able Boiling Pans having small capacity having volume of up to 500 Liters having hemispherical bottom suitable for Heating with Stem / Hot liquid
  • These Pans are provided with jacket for circulation steam / Hot liquid and finally insulated
  • One can have choice of having these pans with agitator, mixer or scrapper
  • Even it is possible to have these pans with two speed agitator cum scrapper moving in opposite directions. provision can be made for two speed mixer
  • redesign the Pans/ Kettles to suit individual requirement
  • In case of higher capacity the pans shall be fixed type supported on the tubular legs / lugs
  • Similar way the kettles can also be supplied with Flat / conical / dished end bottom and top with loose / fixed cover
  • In case of kettles the shell is provided with the dimple jacket suitable for circulation of steam / hot / cold water
  • The dimple jacket kettles are tested at 6 bar hence one need not use syphon for draining the liquid in the jacket
  • These jackets are suitable to work with on line supply of hot / cold water / steam up to a pressure of 4 bar
  • However in case above standard designs are not suitable for particular requirement, one can very well ask to


Application

  • Food and pharma industry
  • Brand - MICROTECH ENGINEERING
View Complete Details

Tilting Boiling Pan

55,857 - 6.53 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Nos
  • Material Stainless Steel
  • Brand Name MICROTECH ENGINEERING
  • Capacity Up to 500 Liters
  • Size Customized

With the help of our team of adroit professionals, we are indulged in offering a wide assortment of Tilting Boiling Pan. It is widely used in food and pharma industry. Our offered pan is designed and manufactured from using superior quality basic material and advanced technology by our experts. While designing the offered range, our experts lay special emphasis on the overall quality and durability. Additionally, our quality controllers keep an eye on the entire range to eliminate any possibility of flaw.

The Following Type Of Boiling Pans / Kettles Are Manufactured

  • Tilt-able Boiling Pans having small capacity having volume of up to 500 Liters having hemispherical bottom suitable for Heating with Stem / Hot liquid
  • These jackets are suitable to work with on line supply of hot / cold water / steam up to a pressure of 4 bar
  • These Pans are provided with jacket for circulation steam / Hot liquid and finally insulated
  • In case of higher capacity the pans shall be fixed type supported on the tubular legs / lugs
  • Similar way the kettles can also be supplied with Flat / conical / dished end bottom and top with loose / fixed cover
  • In case of kettles the shell is provided with the dimple jacket suitable for circulation of steam / hot / cold water
  • One can have choice of having these pans with agitator, mixer or scrapper
  • Even it is possible to have these pans with two speed agitator cum scrapper moving in opposite directions. provision can be made for two speed mixer
  • The dimple jacket kettles are tested at 6 bar hence one need not use syphon for draining the liquid in the jacket
  • However in case above standard designs are not suitable for particular requirement, one can very well ask to redesign the Pans/ Kettles to suit individual requirement


Features

  • Smooth finish
  • Durability
  • Superior performance


Application

  • Food and pharma industry
View Complete Details

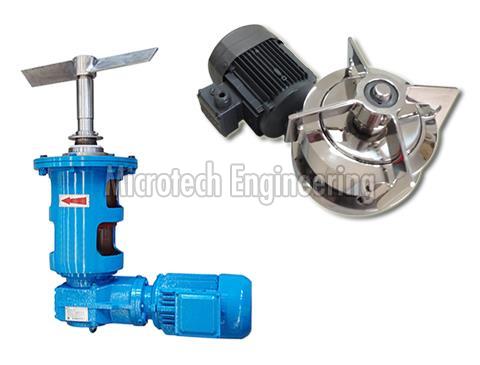

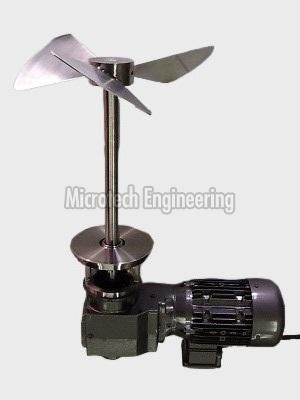

Bottom Entry Mixer

  • Frequency 50-60 Hz
  • Voltage 240 V
  • Motor Power 3 HP
  • Phase Single Phase
  • RPM 450 RPM
  • Power Source Electric

Microtech Engineering Bottom Entry Mixers Are Typically Used In Conjunction With A Stirrer/Scraper Unit. It Emulsifies, Homogenizes, Solubilizes, Suspends, Disperses And Disintegrates Solids. The Bottom Gives High Shear Homogenization While The Stirrer/ Scraper Distribute The Homogenized Output Uniformly Throughout The Vessel. This Is Ideal For High-Viscosity Cosmetic, Pharmaceutical And Food Products. They Can Also Be Used On Low Viscosity Products To Wet Our Powders. Clean-In-Place Design With A Simple, Easy To Clean Construction.

Aeration Free

  • Self-Pumping
  • No Bypassing
  • Interchangeable Warheads
  • Sanitary Construction
  • Easy Maintenance
  • Lower Power Requirements
  • Reduces Particle Size
  • Rapidly Dissolves Solids


Accelerates Reactions Sealing : Single Mechanical Shaft Sealing: A Single Carbon/Ceramic Mechanical Shaft Seal With Viton Elastomers Is Standard. Other Face Materials And Elastomers Are Available As Optional Extras. Double Mechanical Shaft Sealing: These Are Required When Processing Products That Are Abrasive, Sticky Or Viscous Or When The System Is Under Vacuum. Sealant Flushing Systems Can Be Supplied As Optional Extras :

  • Operating Pressures - All Standard Models Are Designed For Operation On Pressures Not In Excess Of 40 Psig (2.8 Bar). High-Pressure Units Are Available Upon Request.
  • Materials Of Construction - All Wetted Parts Are In 304/316 304L/316L Stainless Steel. Special Materials On Request. Electropolished Finish Is Available As An Optional Extra.
  • Cleaning - Clean-In-Place (Cip) Design. Simple, Easy To Clean Construction.
  • Motor Specifications - Tefc, Washdown Duty And Explosion Proof Motors Are Available As Standard. Inverter Rated, Stainless Steel And Other Motors Are Available As Optional Extras.
  • Mounting - Stainless Steel Flange Fitting Is Available As Standard. Clamp-On Fitting Is Optional For Smaller Machines.
  • Operating Pressures - All Standard Models Are Designed For Operation On Pressures Not In Excess Of 40 Psig (2.8 Bar). High-Pressure Units Are Available Upon Request.
  • Ultra Sanitary: Model Available With Features Including:
  • Crevice-Free Construction
  • Sanitary Metal Bellows Shaft Seal
  • Electro-polished Finish
View Complete Details
