Our Products
We offer the best product range of De-Aired Water Apparatus, Liquid Limit Apparatus, 30Kn Direct Shear Apparatus and 2Kn Direct Shear Apparatus.
De-Aired tank is designed to remove dissolved gasses from ordinary clean water. The apparatus consists of a closed cylinder with hose attached to vacuum pump provided, which is controlled by PID controller.

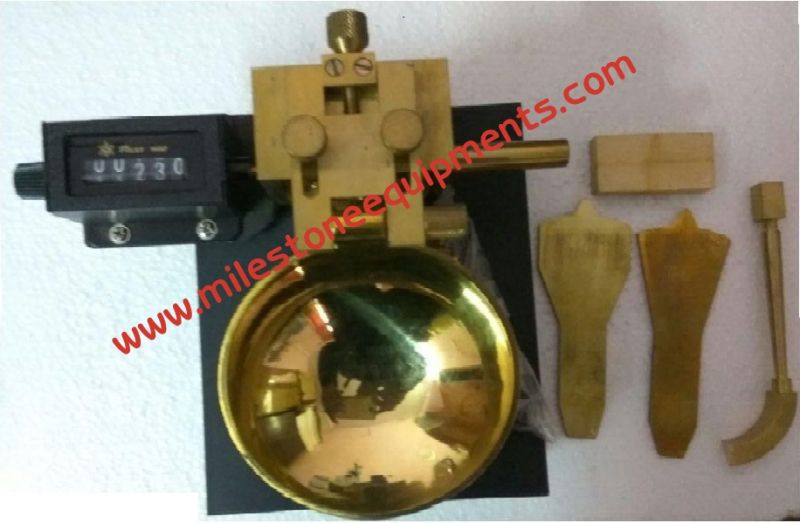

The liquid limit, defined as the moisture content at which the soil passes from the plastic state to the liquid state, is very helpful in the classification of the potential properties of the soil material. The liquid limit gives a measure of the shearing resistance which a soil has when mixed with water. Casagrande’s Method or Cone Penetrometer Method can determine the liquid limit of soil.

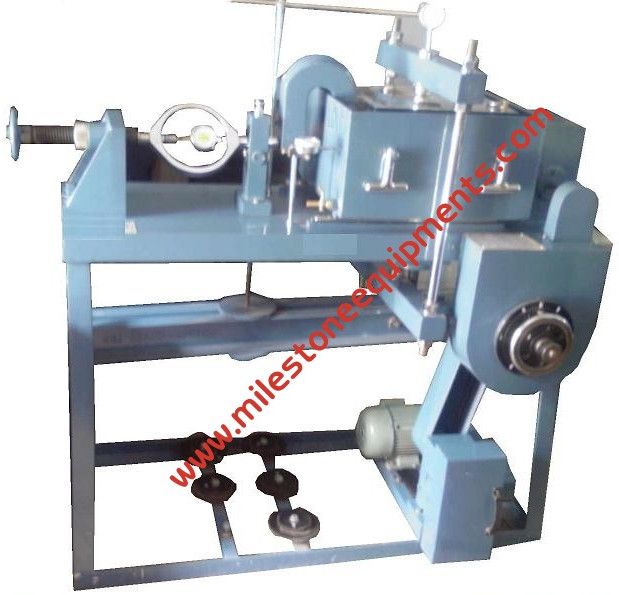

Direct Shear Apparatus, Motorised, 30 KN (3, 000 kgf)
For testing sands, gravel, gravely clays and clay gravels for use in rolled fill embankments.
Type of Shear Measurement:
Direct Operation: Motorised
Rates of Strain (mm/min): 72 speeds Ranging from 0.0014 to 10.16mm/min
Specimen Size: 30 x 30 x 15 cm
Change gears: 12
Shear Load capacity: 30 kN
Vertical load capacity: 300 kN/m2
Power Specifications: 220 V, 50 Hz, 1 phase, AC supply if 440 volt 50 HZ required mention while ordeing
The apparatus comprises of the following - Loading Unit :
Supplied with loading yoke with direct and lever for applying load. Normal stress capacity 8Kg/Sq.cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading. yoke. The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.

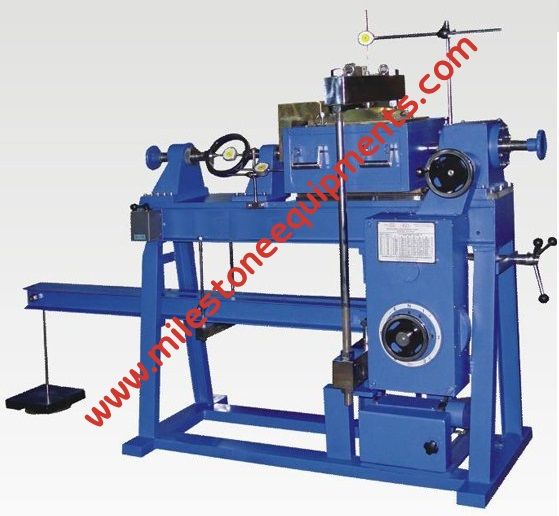

Consists of loading unit, shear box assembly for 60 mm x 60 mm x 25 mm complete with two halves of loading pad, one base plate. All made of gunmetal with two porous stones. Share box housing of gunmetal, specimen Cutter of steel with set of weight to give normal stress of 3 kg/cm2. through lever as follows.
Unit is electrically operated to give the following 12 rates of strains from 1.25, to 0.0002mm/min. The apparatus is suitable for operation on 230 volts single phase A.C. supply. With dial gauge and proving ring.
